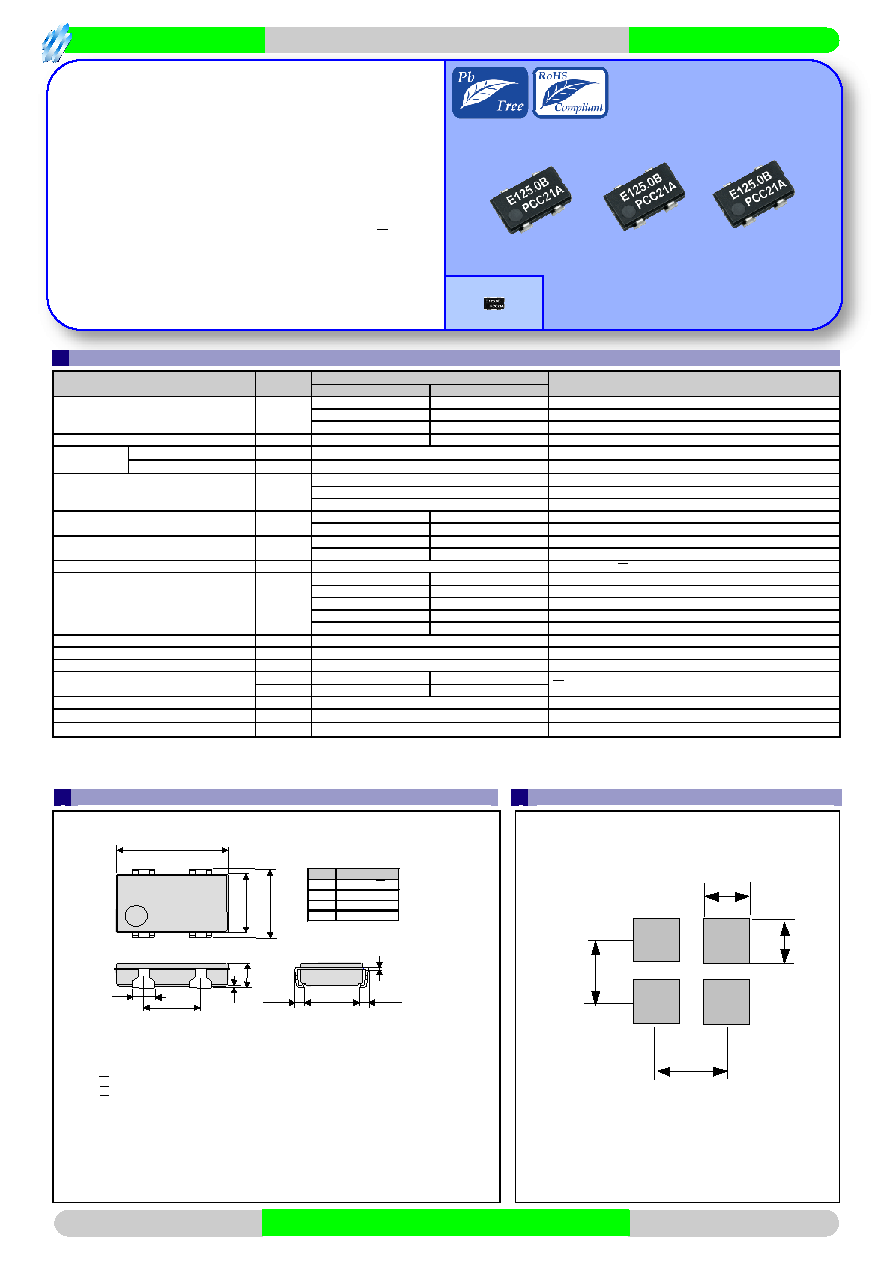

Actual size
http://www.epsontoyocom.co.jp
Crystal oscillator
Epson Toyocom
Specifications (characteristics)
Specifications *2
Item
Symbol
PH / SH
PC / SC
Remarks
1 MHz to 80 MHz
-
VCC=4.5 V to 5.5 V
-
1 MHz to 125 MHz
VCC=3.0 V to 3.6 V
Output frequency range
f0
-
1 MHz to 66.7 MHz
VCC=2.7 V to 3.6 V
Supply voltage
VCC
4.5 V to 5.5 V
2.7 V to 3.6 V
Storage temperature
T_stg
-40
°C to +125 °C
Store as bare product after unpacking
Temperature
range
Operating temperature
T_use
-20
°C to +70 °C (-40 °C to +85 °C)
Refer to “Outline specifications” (Frequency range)
B:
±50 × 10-6 ,C: ±100 × 10-6
-20
°C to +70 °C
M:
±100 × 10-6
*3
-40
°C to +85 °C
Frequency tolerance
f_tol
L:
± 50 × 10-6
-40
°C to +85 °C, VCC ±5 % *3
30 mA Max.
-
No load condition,
f0=80 MHz
Current consumption
ICC
-
28 mA Max.
No load condition,
f0=125 MHz
25 mA Max.
-
P Type only,
f0=80 MHz
Disable current
I_dis
-
16 mA Max.
P Type only,
f0=125 MHz
Stand-by current
I_std
50
A Max.
S Type only, ST =GND
40 % to 60 %
-
50 % VCC, L_CMOS=15 pF,
≤80 MHz
45 % to 55 %
-
50 % VCC, L_CMOS=25 pF,
≤50 MHz
-
40 % to 60 %
50 % VCC, L_CMOS=15 pF, VCC=3.0 V to 3.6 V,
≤125 MHz
-
40 % to 60 %
50 % VCC, L_CMOS=15 pF, VCC=2.7 V to 3.6 V,
≤66.7 MHz
Symmetry *1
SYM
-
45 % to 55 %
50 % VCC, L_CMOS=15 pF, VCC=3.0 V to 3.6 V,
≤40 MHz
High output voltage
VOH
VCC-0.4 V Min.
IOH=-16 mA(PH,SH),-8 mA(PC,SC)
Low output voltage
VOL
0.4 V Max.
IOL= 16 mA(PH,SH), 8 mA(PC,SC)
Output load condition(CMOS) *1
L_CMOS
15 pF Max.
Max. frequency and Max. supply voltage
VIH
2.0 V Min.
70 % VCC Min.
Output enable / disable
input voltage
VIL
0.8 V Max.
20 % VCC Max.
ST terminal or OE terminal
Rise time / Fall time *1
tr / tf
3 ns Max.
20 % VCC to 80 % VCC level, L_CMOS=Max.
Start-up time
t_str
10 ms Max.
Time at minimum supply voltage to be 0 s
Frequency aging
f_aging
±5 × 10-6 / year Max.
+25
°C, VCC=5.0 V/ 3.3 V (PC / SC) First year
*1 Operating temperature (-40 °C to +85 °C), the available frequency, symmetry and output load conditions, please refer to “Outline specifications” page.
*2 PLL-PLL connection & Jitter specification, please refer to “Jitter specifications and characteristics chart” page.
*3 PH,SH for “M” tolerance and “L” tolerance will be available up to 27 MHz. Checking possible by the Frequency checking program.
External dimensions
(Unit:mm)
Footprint (Recommended)
(Unit:mm)
CRYSTAL OSCILLATOR
PROGRAMMABLE
SG - 8002 LB series
Frequency range
: 1 MHz to 125 MHz
Supply voltage
: 3.3 V / 5.0 V
Function
: Output enable(OE) or Standby( ST )
External dimensions : 5.0 × 3.2 × 1.2 t (mm)
Short mass production lead time by PLL technology.
SG-Writer available to purchase.
Please contact Epson Toyocom or local sales representative.
M etal may be exposed on the top or bottom of this product.
This will not affect any quality, reliability or electrical spec.
(0.35)
2.5
(0.35)
0.1
5.0 ±0.2
#2
#3
#1
#4
E 125.0B
3.
2
±
0.
2
2.
8
FCC21A
2.54
1.0
1.
2M
ax
.
0min.
Note.
OE pin (P H, PC)
OE pin = "H" or "open" : Specified frequency output.
OE pin = "L" : Output is high impedanc e.
ST
pin (SH, SC)
ST
pin = "H" or "open" : Specified frequency output.
ST
pin = "L" : Output is low level (weak pull - down),oscillation stops.
Pin m ap
Pin.
Connection
1
OE or ST
2
GND
3
OUT
4
VCC
2.
2
2.54
1.
5
1.6
Product Number (please contact us)
Q3323LBxxxxxx00
To maintain stable operation, provide by-pass capacitor
with more than 0.1
F at a location as near as possible to
the power source terminal of the crystal products
(between VCC - GND).
