September 2002
Specifications subject to change without notice,contact your sales representatives for the most recent information.
3/25
Ver 1.2
SM89516A 09/02
SyncMOS Technologies Inc. SM89516A
Timer 2
Timer 1
Timer 0
Stack
Pointer
Decoder &
Register
1024 bytes
RAM

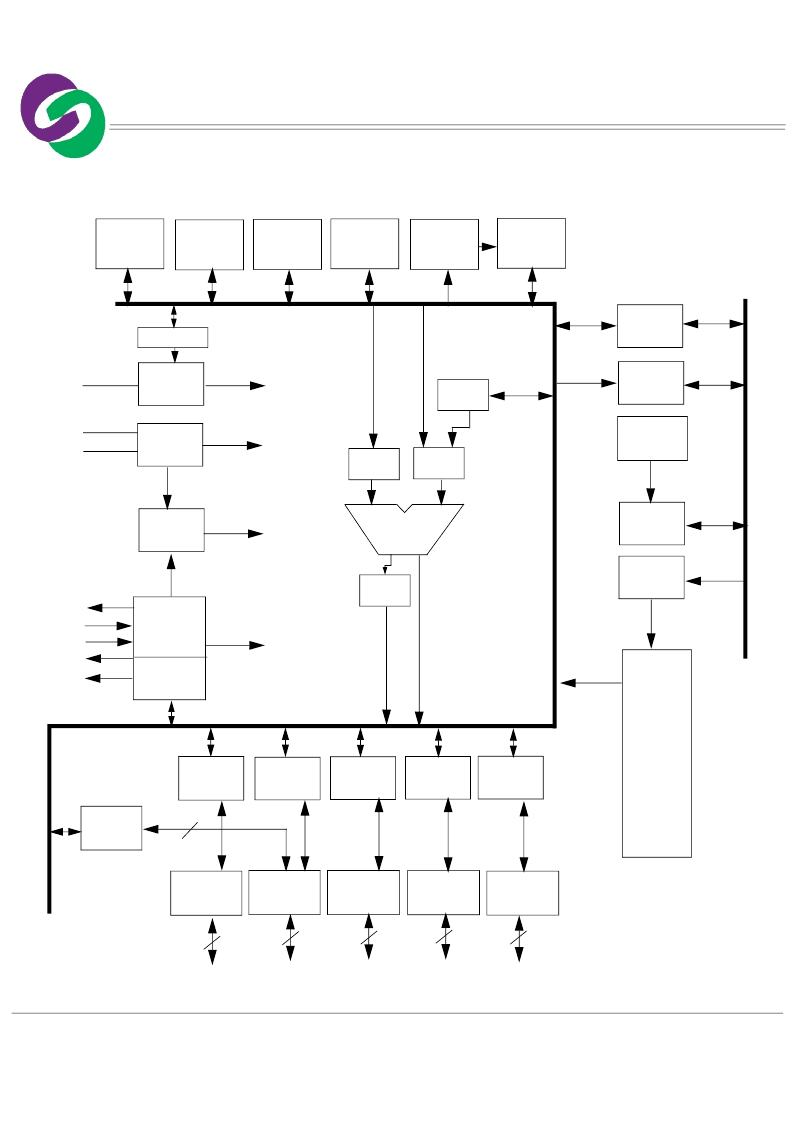

Block Diagram
Reset
Circuit
Power
Circuit
Interrupt
Circuit
Timing
Generator
XTAL2
XTAL1
#EA
ALE
#PSEN
RES
Vdd
Vss
to pertinent blocks
to whole chip
to pertinent blocks
to whole system
Acc
Buffer2
Buffer1
ALU
PSW
Buffer
DPTR
PC
Incrementer
Program
Counter
Register
Port 1
Latch
Port 2
Latch
Port 3
Latch
Port 4
Latch
Port 2
Port 3
Driver & Mux
Port 4
Driver & Mux
8
8
8
4
WDT
Instruction
Register
Port 0
Latch
8
Port 1
Driver & Mux
Driver & Mux
Port 0
Driver & Mux
SPWM
64K
bytes
Flash
Memory
0000H
FFFFH
5
