September 2002
Specifications subject to change without notice,contact your sales representatives for the most recent information.
13/17
Ver 1.0
PID 8951A/8952A 09/02
SyncMOS Technologies Inc. SM8951A/8952A

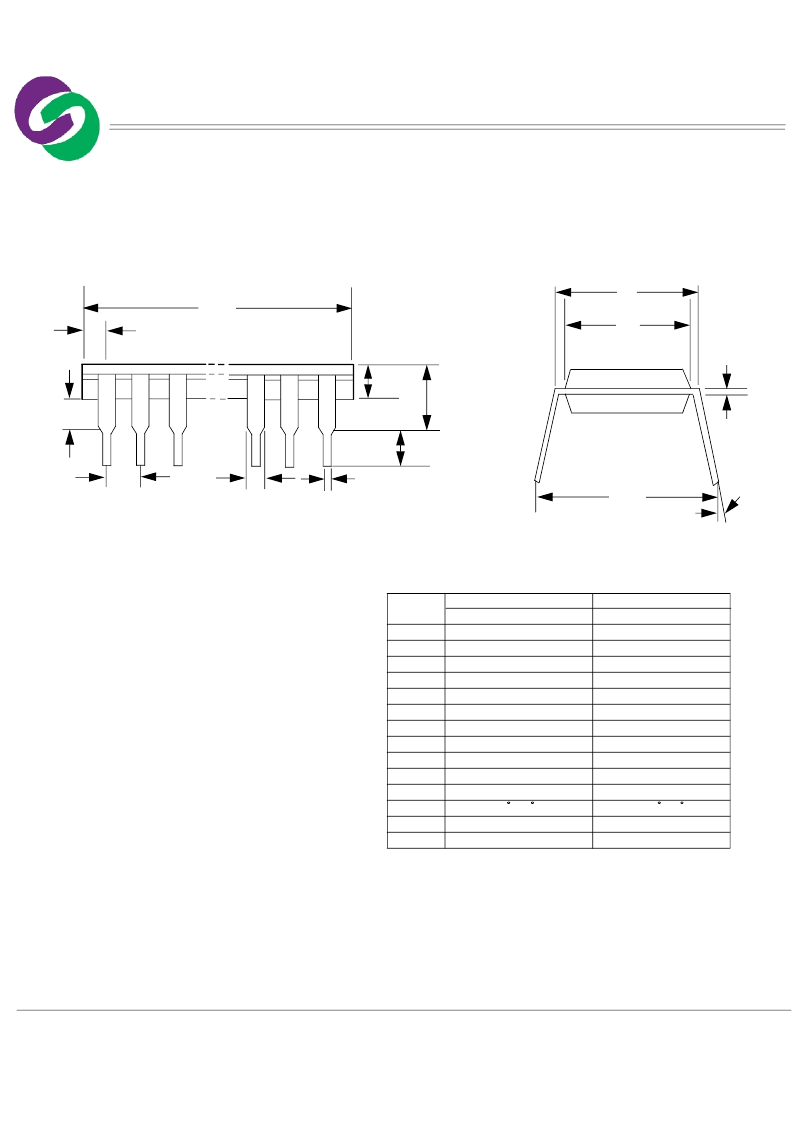

40L 600mil PDIP Information
A1
e1
B1
B
L
A
A2
D
S
eA
C
a
E1
E
Note:
1. Dimension D Max & include mold flash or tie bar
burrs.
2. Dimension E1 does not include inter lead flash.
3. Dimension D & E1 include mold mismatch and are
determined at the mold parting line.
4. Dimension B1 does not include dam bar protrusion/
infusion.
5. Controlling dimension is inch.
6. General appearance spec. should base on final visual
inspection spec.
Symbol
A
A1
A2
B
B1
C
D
E
E1
e1
L
a
eA
S
Dimension in inch
minimal/maximal
- / 0.210
0.010 / -
0.150 / 0.160
0.016 / 0.022
0.048 / 0.054
0.008 / 0.014
- / 2.070
0.590 / 0.610
0.540 / 0.552
0.090 / 0.110
0.120 / 0.140
0 / 15
0.630 / 0.670
- / 0.090
Dimension in mm
minimal/maximal
- / 5.33
0.25 / -
3.81 / 4.06
0.41 / 0.56
1.22 / 1.37
0.20 / 0.36
- / 52.58
14.99 / 15.49
13.72 / 14.02
2.29 / 2.79
3.05 / 3.56
0 / 15
16.00 / 17.02
- / 2.29
