Skyworks Solutions, Inc. Phone [781] 376-3000 Fax [781] 376-3100 sales@skyworksinc.com www.skyworksinc.com
201292D Skyworks Proprietary Information Products and Product Information are Subject to Change Without Notice January 26, 2011
1

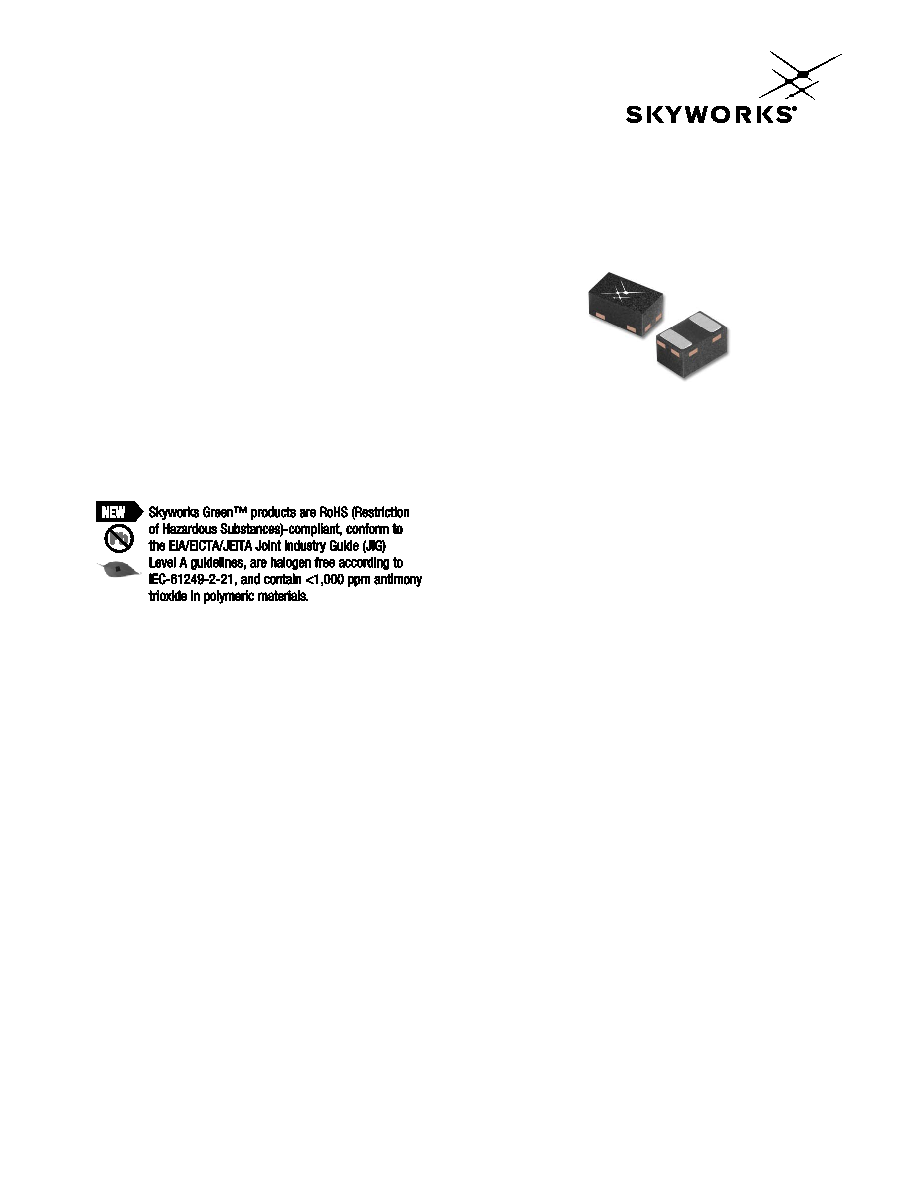

DATA SHEET
SMS7621-040LF: 0402 Surface Mount Low Barrier Schottky
Diode
Applications
Sensitive detector circuits
Sampling circuits
Mixer circuits
Features
Low Barrier Height
Industry-standard 0402 footprint
Packages rated MSL1, 260 °C per JEDEC J-STD-020
Description
The SMS7621-040LF is a plastic packaged, surface mountable
low barrier Schottky diode designed for sensitive detector
applications to 20 GHz and higher. The low capacitance of this
diode (0.25 pF) combined with its low total resistance (18
Ω
typical at 5 mA) make the SMS7621-040LF particularly well
suited for sensitive detector circuits.
The SMS7621-040LF is also available in a variety of plastic
packages and configurations that include an SOT-23 (the
SMS7621-001LF), a small footprint SC-79, and a miniature
SC-70.
