SPT9110
100 MSPS SINGLE-TO-DIFFERENTIAL TRACK-AND-HOLD
APPLICATIONS
THA for Differential ADCs
RF Demodulation Systems
Test Instrumentation
Digital Sampling Oscilloscopes
FEATURES
400 MHz Sampling Bandwidth
100 MHz Sampling Rate
Excellent Hold Mode Distortion
-66 dB @ 50 MSPS (f
IN
= 25 MHz)
-58 dB @ 100 MSPS (f
IN
= 50 MHz)
Track Mode Slew Rate: 700 V/
μ
s
Low Power:
120 mW Differential Mode
75 mW Single-Ended Mode
Single +5 V Supply
Internal +2.5 V Reference

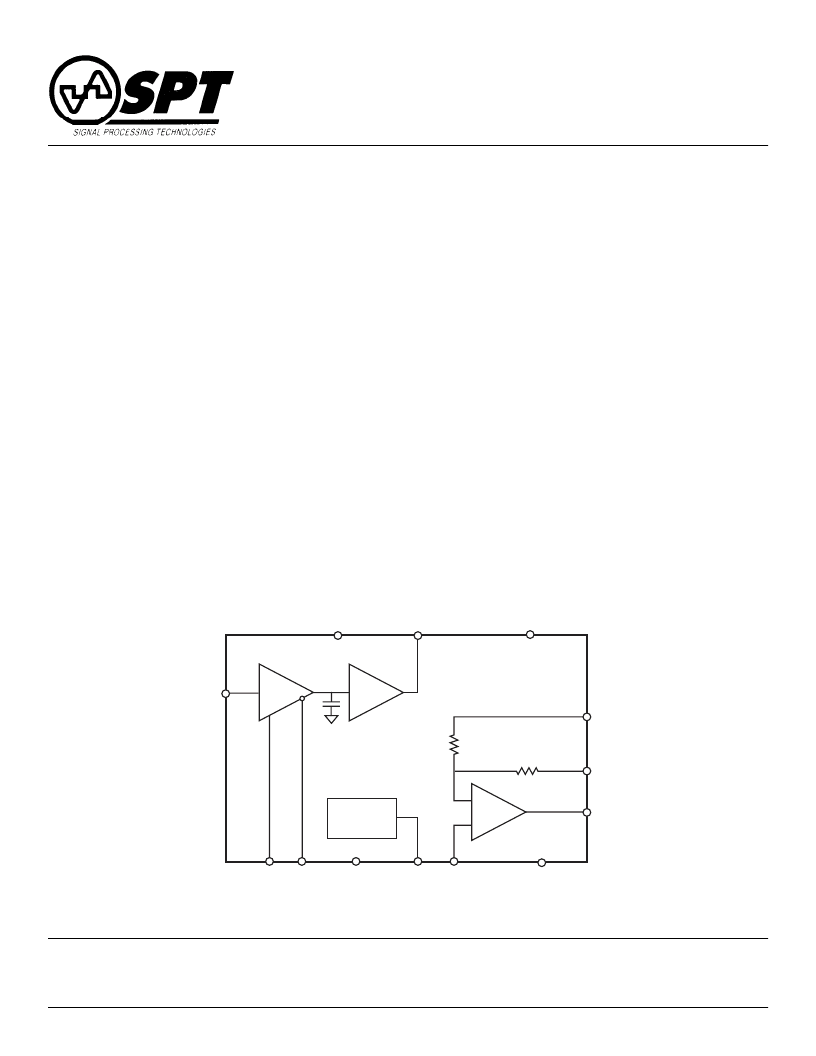

BLOCK DIAGRAM
GENERAL DESCRIPTION
The SPT9110 is a single-to-differential track-and-hold ampli-
fier. It can be operated as a single-end THA only or, in full
configuration, as a single-to-differential THA. An internal
reference provides the common-mode voltage for the single-
to-differential output stage. The THA, inverter and reference
have separate power supply pins so each can be optionally
powered up and used.
This device provides an analog designer with a low cost
single-to-differential THA amplifier for interfacing differential
and single-ended ADCs.
The SPT9110 is offered in a 28-lead SOIC package in the
industrial temperature range.
Signal Processing Technologies, Inc.
4755 Forge Road, Colorado Springs, Colorado 80907, USA
Phone: (719) 528-2300 FAX: (719) 528-2370
1X
1X
CH
OLD
CLK NCLK
Analog In
(VIN)
+2.5 V
Reference
Ref
Out
Out+
Out-
-
+
Ref
In
Invert InA
AGND
AVCC
(Ref)
AVCC
(INV)
AVCC
(THA)
1 k
1 k
Invert InB
R2
R1
