TA2030FNG
2006-04-11
4

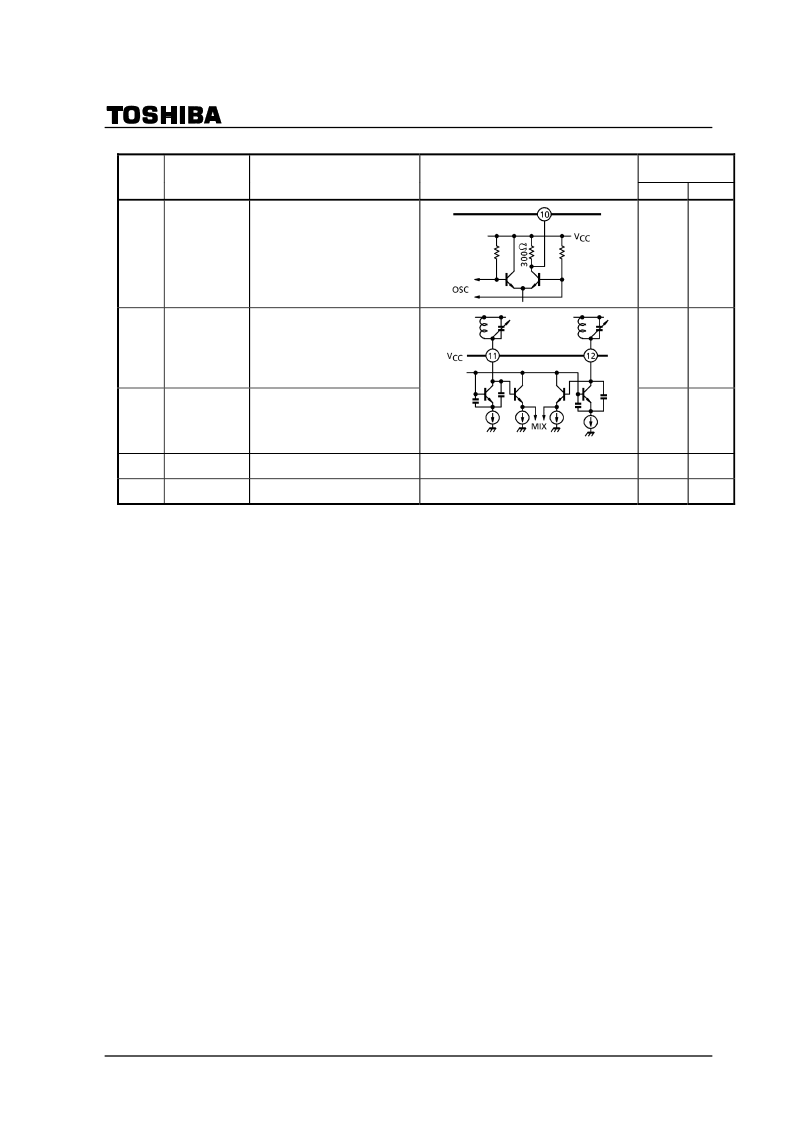

Terminal
Voltage(V)
Termi
nal
No.
Terminal
Name
Function
Internal Circuit
FM
TV
10
OSC OUT
Output of OSC buffer
circuit.
1.1
1.1
11
FM OSC
FM OSC tank circuit is
connected.
(colpitts type oscillator)
1.2
1.2
12
TV OSC
TV OSC tank circuit is
connected.
(colpitts type oscillator)
1.2
1.2
13
V
CC
V
CC
1.2
1.2
16
GND
GND(except RF part)
0
0
Application Note
1. PW SW
It is necessary to connect an external pull
down resistor with the terminal PW SW (pin(7)), in case that this IC
is turned on due to external noise etc.
2. MODE SW
It is necessary to connect an external pull
down resistor with the terminal MODE SW (pin(6)), in case that this
IC doesn't operate normally due to external noise etc.
3. RF GND
This IC has two GND terminals (pin(3): RF GND, pin(16): GND). External parts shown in below should be
connected with RF GND (pin(3)), and other parts should be connected with GND (pin(16)).
By
pass capacitor at pin(14) (FM RF) and pin(15) (TV RF)
By
pass capacitor at pin(4) (FM BY) and pin(2) (TV BY)
The pattern diagram of capacitor connected with pin(2) and pin(4) should be shortly, because RF circuit and MIX
circuit operate on the voltage of pin(2) or pin(4).
