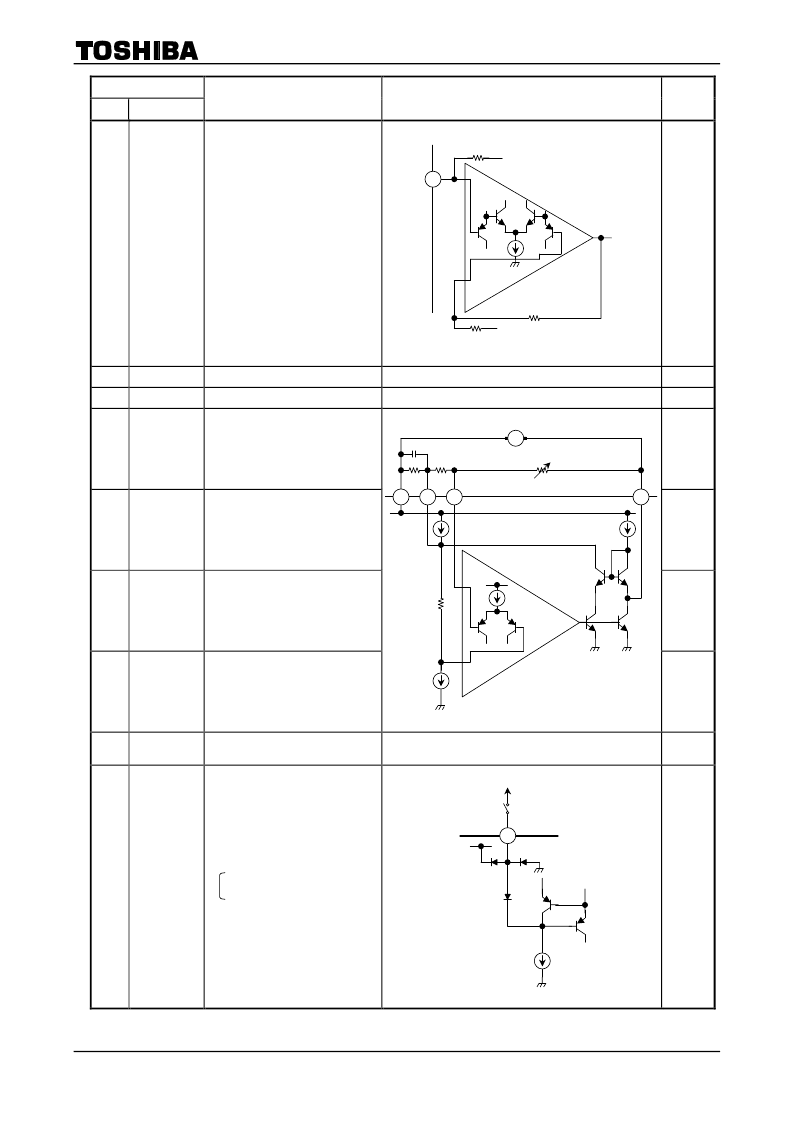

TA2145AF
2002-04-19
4
Terminal
No.
Name
Function
Internal Circuit
Terminal
Voltage
(v)
10
PW IN
C
Input of center amplifier
1.2
11
PW GND
GND for power drive stage
0
12
GVN GND
GND for motor governor stage
0
13
GVN OUT
Motor terminal
14
GVN CTL
The terminal of motor speed control
15
Rt
The terminal of amateur
compensation resistor
16
GVN V
CC
V
CC
for motor governor stage
3
17
V
CC
V
CC
for preamplifier stage and
power amplifier stage.
3
18
PRE SW
Muting switch of preamplifier
Preamp. on: “L” level/open
Preamp. off: “H” level
Refer to application note
2 k
20 k
30 k
10
V
REF
V
REF
14
16
15
13
M
18
