- 您現在的位置：買賣IC網 > PDF目錄272834 > TSM101IN (STMICROELECTRONICS) SPECIALTY ANALOG CIRCUIT, PDIP8 PDF資料下載
參數資料
| 型號： | TSM101IN |
| 廠商： | STMICROELECTRONICS |
| 元件分類： | 模擬信號調理 |
| 英文描述： | SPECIALTY ANALOG CIRCUIT, PDIP8 |
| 封裝： | PLASTIC, DIP-8 |
| 文件頁數： | 8/13頁 |
| 文件大小： | 387K |
| 代理商： | TSM101IN |

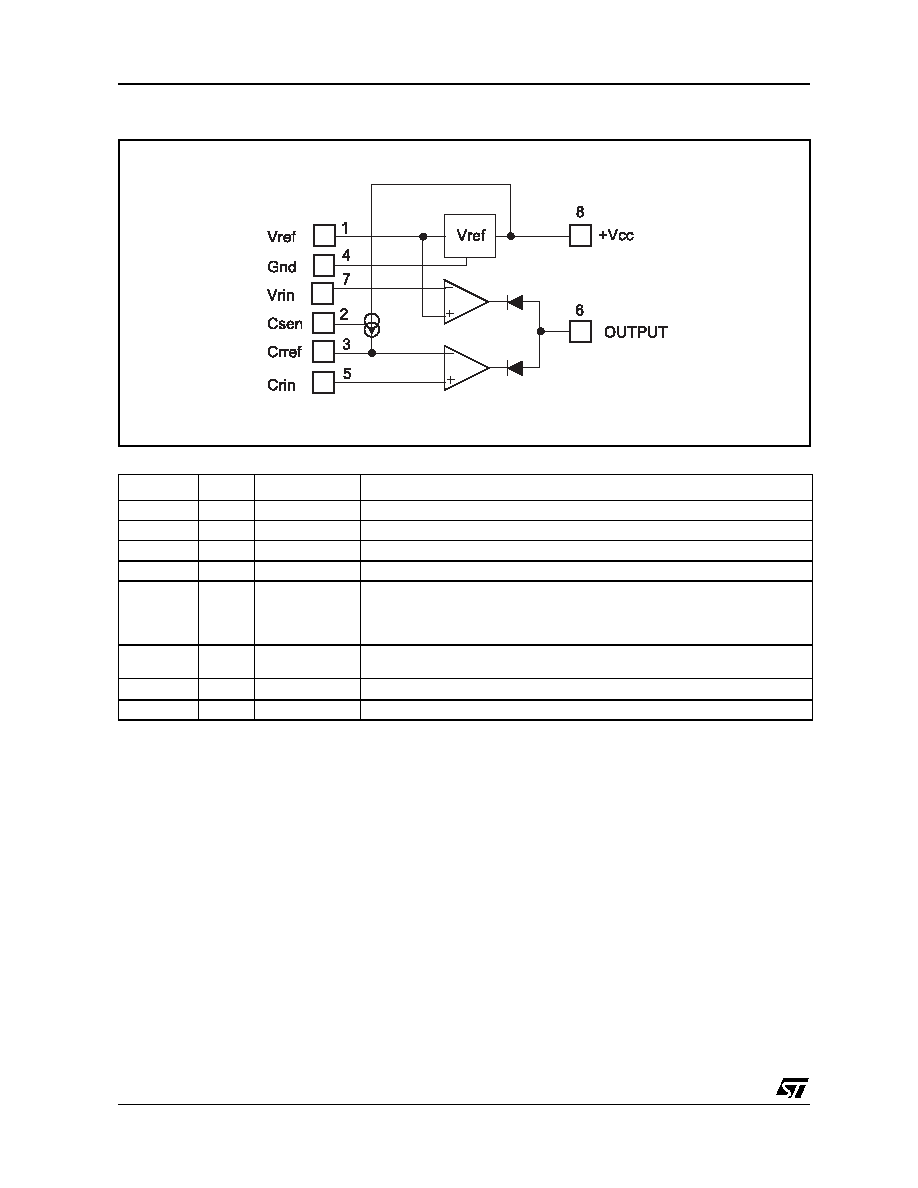

TSM101/A
4/13
DESCRIPTION
Name
Pin
Type
Function
Vref
1
OUTPUT
Voltage Reference Output 1.24V, 10mA max. Do not short circuit
Vrin
7
INPUT
Voltage Regulation Loop input
Crin
5
INPUT
Current Limitation Loop Input, connected to the sense resisto
Crref
3
INPUT
Current Limitation Reference Input
Csen
2
INPUT
Current source enable input. This current source can be used to offset the
voltage measurement on the sense resistor and therefore to modify the
charge current. The current source enabled when the input voltage on pin 2
is lower than 0.8V.
OUTPUT
6
OUTPUT
Output pin common to the voltage regulation and current limitation loops.
This output can drive the primary side (LED) of an optocoupler.
Vcc
8
INPUT
Power Supply Input (4.5 to 32V DC)
GND
4
INPUT
Ground
