75 South Street, Hopkinton, MA 01748 800-982-5737 508-435-6831 FAX 508-435-5289 www.valpeyfisher.com RevB1106
3
VFTX140
Stratum 3 TCXO to 1.0 GHz
25.4x22mm SMD, PECL/LVPECL
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Note
Supply
Break Down
Voltage
Vcc
-0.5
5.5
V
Storage
Temperature
Ts
-55
+105
°
°C
Control
Voltage
Vc
-0.5
6
V
Parameter
Specification
Mechanical Shock
Per MIL-STD-202, Method 213, Condition E
Thermal Shock
Per MIL-STD-883, Method 1011, Condition A
Vibration
Per MIL-STD-883, Method 2007, Condition A
Soldering Conditions
260
°C for 10s max
Hermetic Seal
Leak rate less than 5x10
-8 atm.cc/s of helium (crystal only)
3
4
5
2
1
6
7
R3
10K
C1
.01 uF
Vcc = 3.3V
Gnd
R1
180
Fout
nFout
R2
180
Disable
nc
Vc

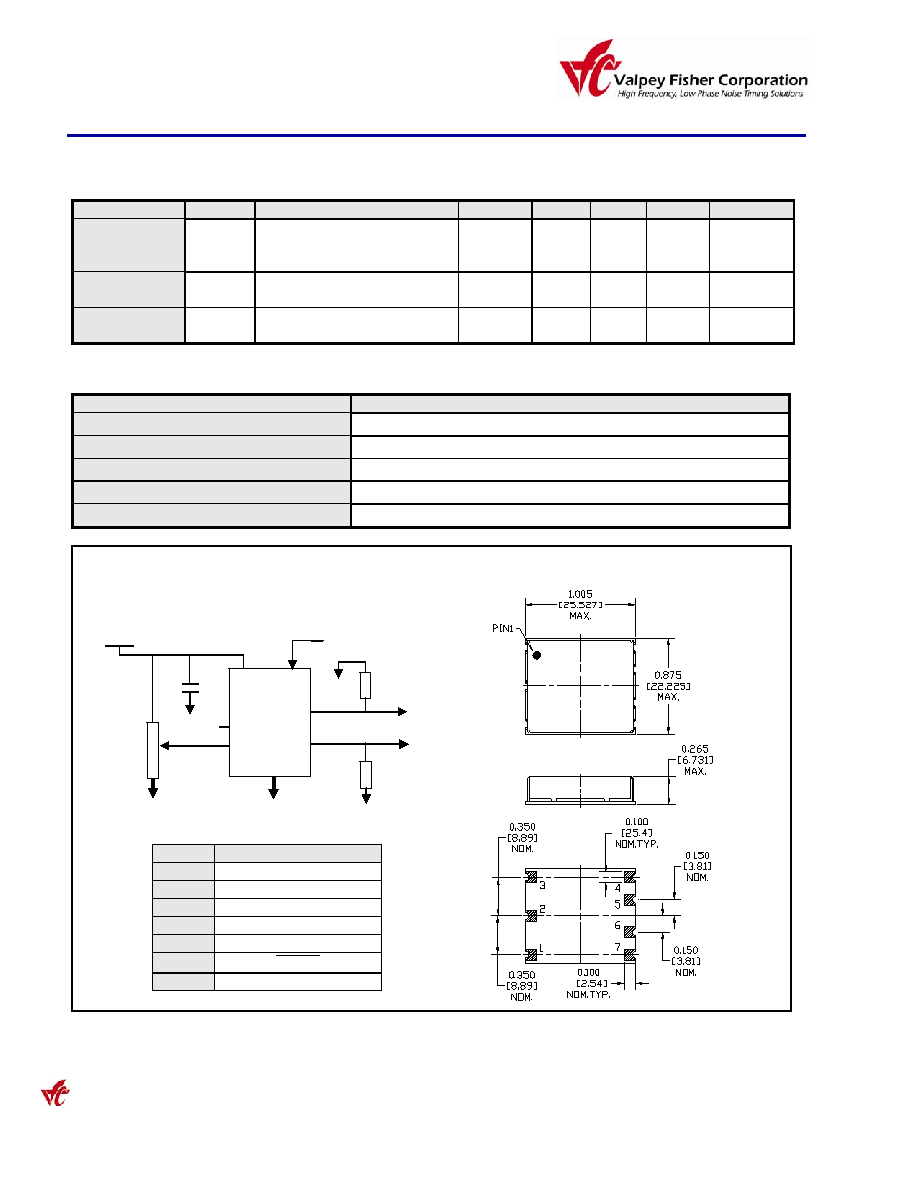

Absolute Maximum Ratings
Environmental and Mechanical
Connection Diagram
Mechanical Outline
Pin #
Connection
1
Vc
2
N/C
3
Vcc
4
N/C
5
Output
6
Output
7
GND
