26.0-40.0 GHz GaAs MMIC
Power Amplifier
Page 5 of 6
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
2004 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
Typical Application
Mimix
Broadband MMIC-based 36.0-40.0 GHz Transmitter Block Diagram
(Changing LO and IF frequencies as required allows design to operate as high as 40 GHz)
IF IN
2 GHz
XB1002
XP1001
XU1001
WG
Sideband
Reject
RF Out
37.0-39.5 GHz
On-Chip
Temp Comp
Detector
LO(+15dBm)
17.5-18.75 GHz (USB Operation)
19.5-20.75 GHz (LSB Operation)

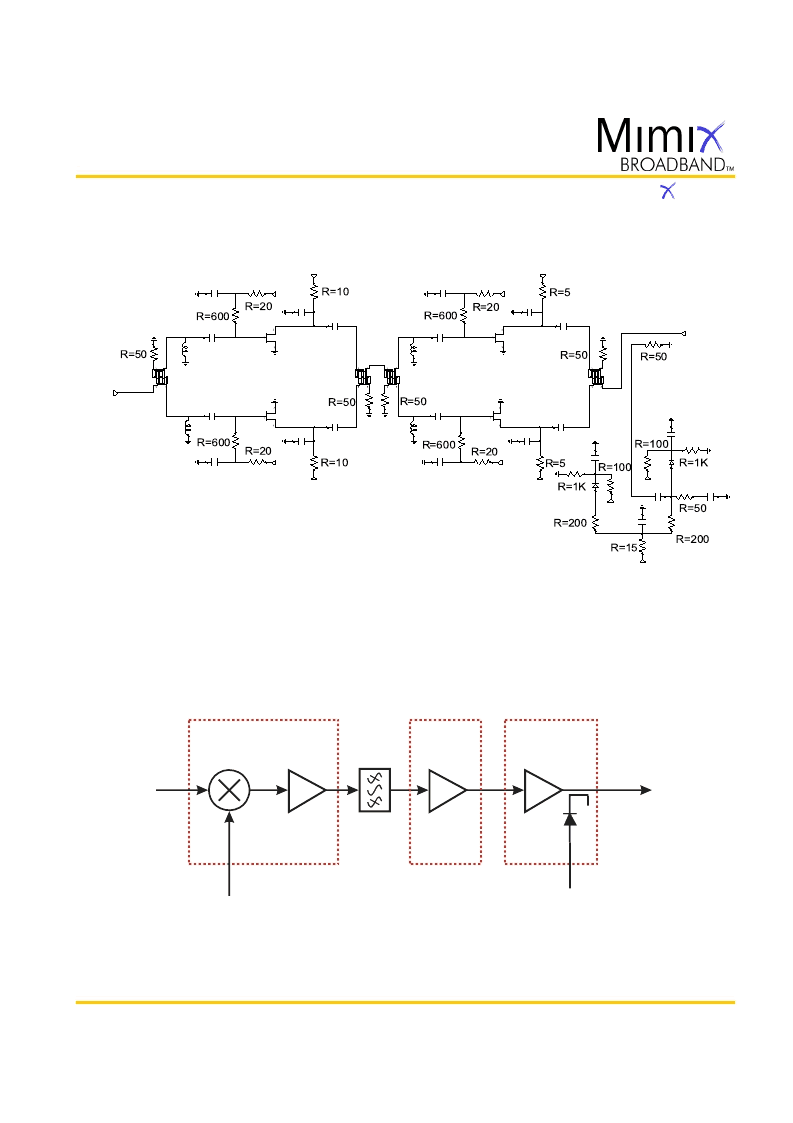

Device Schematic
P1001
May 2005 - Rev 05-May-05
RF In
Vg1
Vd1
Vg3
Vd3
Vg2
Vd2
RF Out
Vout2
Vd5
Vd4
Vg4
Vout1
