11.0-19.0 GHz GaAs MMIC
Power Amplifier, QFN
Page 3 of 6

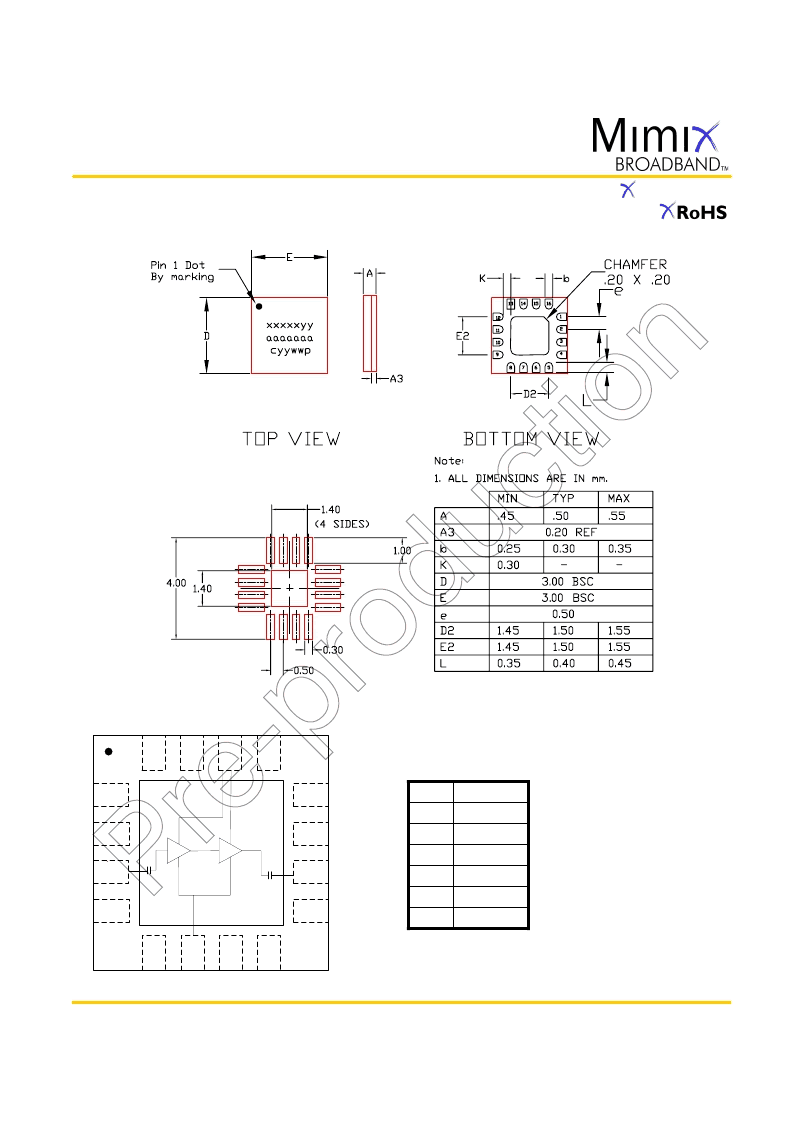

Package Dimensions / Layout
Functional Block Diagram / Board Layout
Pin
Description
2
Ground
3
RF In
6
Vg
9
Ground
10
RF Out
14
Vd
Bypass Capacitors -
See App Note [2]
10
3
6
14
9
2
1
4
5
7
8
11
12
13
15
16
Vd
NC
NC
NC
RF OUT
GND
NC
NC
RF IN
GND
NC
NC
Vg
NC
NC
NC
15MPA0566
P1020-QE
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
2007 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
January 2007 - Rev 26-Jan-07
