參數資料
型號： 0002091203
廠商： MOLEX INC
元件分類： 終端
英文描述： PHOSPHOR BRONZE, TIN (20) FINISH, WIRE TERMINAL
封裝： HALOGEN FREE AND ROHS COMPLIANT
文件頁數： 1/2頁
文件大小： 32K
代理商： 0002091203

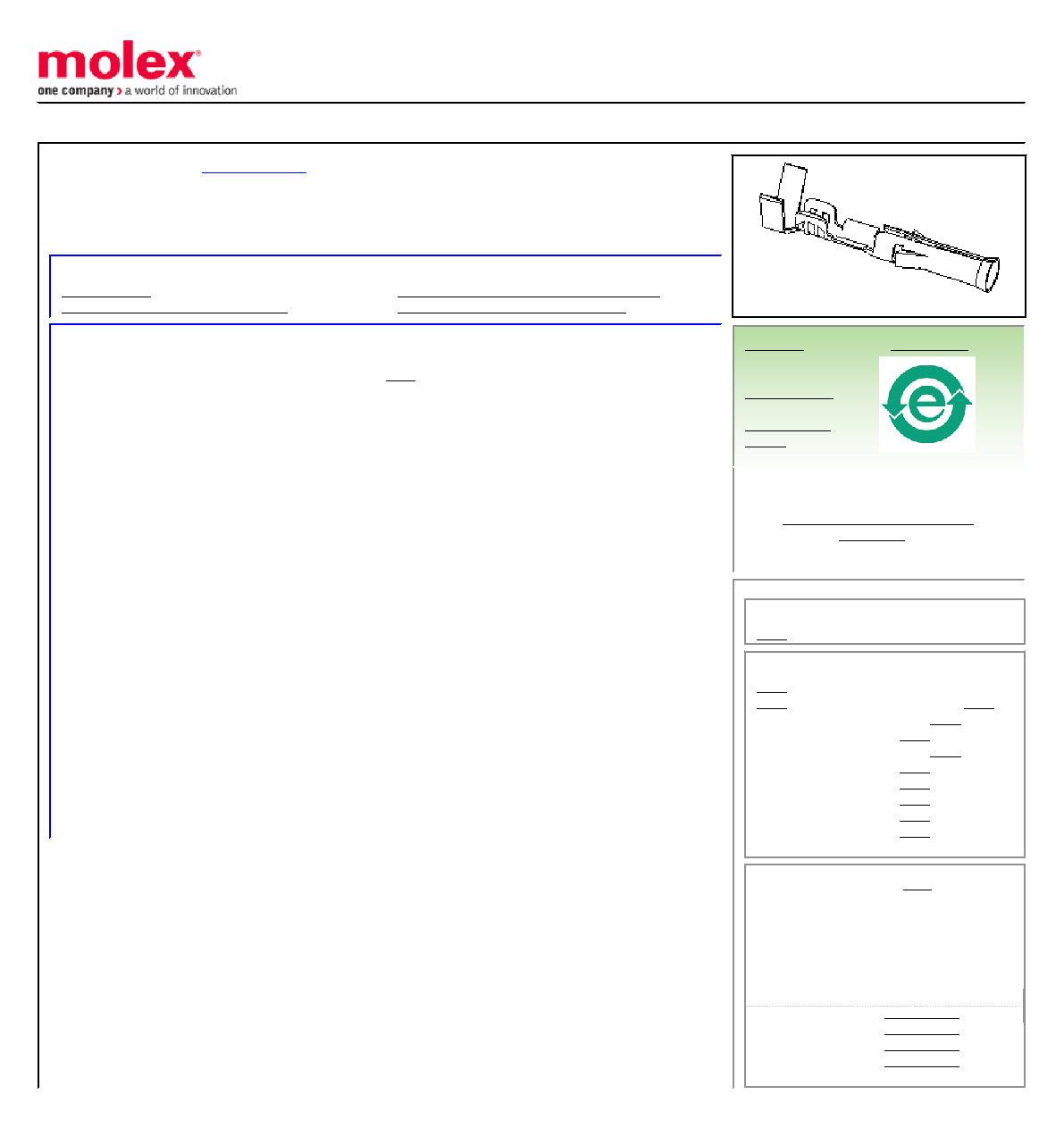

This document was generated on 11/05/2009
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Active
Overview:
Description:
2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 2151,
Female, with Tin (Sn) Plated Phosphor Bronze Contact, 18-22 AWG, Reel
Documents:
General
Product Family
Crimp Terminals
Series
Overview
Standard .093"
Product Name
Standard .093"
Physical
Durability (mating cycles max)
25
Gender
Female
Material - Metal
Phosphor Bronze
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Packaging Type
Reel
Plating min: Mating (in)
20
Plating min: Mating (m)
0.50
Plating min: Termination (in)
20
Plating min: Termination (m)
0.50
Termination Interface: Style
Crimp or Compression
Wire Insulation Diameter
1.52-3.05mm (.060-.120")
Wire Size AWG
18
Wire Size AWG
20
Wire Size AWG
22
Wire Size mm
N/A
Material Info
Old Part Number
2151-A(P901)
Reference - Drawing Numbers
Product Specification
PS-02-09
Product Specification
PS-43660-9999
Sales Drawing
SD-2151-*
Sales Drawing
SD-2151-A(P901)*
Series image - Reference only
ELV and RoHS
Compliant
Contains SVHC: No
Halogen-Free
Need more information on product
environmental compliance?
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
2151 Series
Use With
1619 Plug or Receptacle Housing,
1545 Plug or Receptacle Housing, 1396
Plug or Receptacle Housing, 1490 Plug
or Receptacle Housing, 2629 Plug or
Receptacle Crimp Housings, 1261 Plug
or Receptacle Housing, 1292 Plug
or Receptacle Housing, 1360 Plug
or Receptacle Housing, 1375 Plug
or Receptacle Housing, 3191 Plug
or Receptacle Housing, 2163 Plug or
Receptacle Housings
Application Tooling
| FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Terminator Die
Insertion Tool
Extraction Tool
Mini-Mac
Applicator
相關PDF資料
PDF描述
0002091205 PHOSPHOR BRONZE, TIN (20) FINISH, WIRE TERMINAL
0002091206 PHOSPHOR BRONZE, TIN (20) FINISH, WIRE TERMINAL
0002092101 BRASS, TIN (20) FINISH, WIRE TERMINAL
0002092105 BRASS, TIN (100) FINISH, WIRE TERMINAL
0002092133 BRASS, TIN (100) FINISH, PCB TERMINAL
相關代理商/技術參數
參數描述
0002091204 制造商:Molex 功能描述:2.36mm (.093") Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 2151, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 18-22 AWG, Bag
0002091205 功能描述:TERM .093 FEMALE TIN 14-20AWG RoHS:是 類別:連接器，互連式 >> 矩形 - 觸點 系列:標準 .093 產品培訓模塊:Power Connectors 視頻文件:Mini-Fit Jr 產品目錄繪圖:Male Terminal 標準包裝:6,000 系列:Mini-Fit Jr™ 5558 類型:功率 引腳或插口:引腳 觸點終端:壓接 線規:22-28 AWG 觸點表面涂層:錫 觸點涂層厚度:- 包裝:帶卷 (TR) 產品目錄頁面:213 (CN2011-ZH PDF) 配用:0512031200-ND - CONN RECT PLUG HSNG 12POS VERT0511920600-ND - CONN RECT PLUG HSNG 6POS VERTWM4379-ND - MINI FIT JR PLG FREEHNG 14CKTWM4370-ND - MINI-FIT PLUG HSG 24CKT PANEL MTWM2838-ND - CONN PLUG FREE HANGING V-0 3CKTWM24065-ND - CONN PLUG 12POS VERT DUALWM24064-ND - CONN PLUG 10POS VERT DUALWM24063-ND - CONN PLUG 8POS VERT DUALWM24062-ND - CONN PLUG 6POS VERT DUALWM24061-ND - CONN PLUG 4POS VERT DUAL更多... 相關產品:0639123800-ND - T2 TERMINATOR ASSEMBLY0639120200-ND - T2 TERMINATOR ASSEMBLY0639102700-ND - T2 TERMINATOR ASSEMBLY0639023800-ND - FINE ADJUST APPLICATOR0639020200-ND - FINE ADJUST APPLICATORWM6299-ND - TOOL APPLICATOR CRIMPWM5153-ND - HAND CRIMP TOOLWM9999-ND - TOOL CRIMP 14-24AWG UNIVERSALWM9918-ND - TOOL HAND EXTRACTION MINI-FIT JR 其它名稱:0039-00-00480039-00-0048-C00390000480039000048-C39-00-0048-C3900004839000048-CWM2502TR
0002091206 功能描述:CONN FEMALE TERM 14-20AWG TIN RoHS:是 類別:連接器，互連式 >> 矩形 - 觸點 系列:4550 標準包裝:90,000 系列:* 其它名稱:035021-1301350211-1301350211301
0002091212 制造商:Molex 功能描述:CONN CONT F 1 POS CRMP ST - Bulk
0002091615 功能描述:CONN SOCKET .093" 14-18AWG TIN RoHS:是 類別:連接器，互連式 >> 矩形 - 觸點 系列:42477 產品培訓模塊:Power Connectors 視頻文件:Mini-Fit Jr 產品目錄繪圖:Male Terminal 標準包裝:6,000 系列:Mini-Fit Jr™ 5558 類型:功率 引腳或插口:引腳 觸點終端:壓接 線規:22-28 AWG 觸點表面涂層:錫 觸點涂層厚度:- 包裝:帶卷 (TR) 產品目錄頁面:213 (CN2011-ZH PDF) 配用:0512031200-ND - CONN RECT PLUG HSNG 12POS VERT0511920600-ND - CONN RECT PLUG HSNG 6POS VERTWM4379-ND - MINI FIT JR PLG FREEHNG 14CKTWM4370-ND - MINI-FIT PLUG HSG 24CKT PANEL MTWM2838-ND - CONN PLUG FREE HANGING V-0 3CKTWM24065-ND - CONN PLUG 12POS VERT DUALWM24064-ND - CONN PLUG 10POS VERT DUALWM24063-ND - CONN PLUG 8POS VERT DUALWM24062-ND - CONN PLUG 6POS VERT DUALWM24061-ND - CONN PLUG 4POS VERT DUAL更多... 相關產品:0639123800-ND - T2 TERMINATOR ASSEMBLY0639120200-ND - T2 TERMINATOR ASSEMBLY0639102700-ND - T2 TERMINATOR ASSEMBLY0639023800-ND - FINE ADJUST APPLICATOR0639020200-ND - FINE ADJUST APPLICATORWM6299-ND - TOOL APPLICATOR CRIMPWM5153-ND - HAND CRIMP TOOLWM9999-ND - TOOL CRIMP 14-24AWG UNIVERSALWM9918-ND - TOOL HAND EXTRACTION MINI-FIT JR 其它名稱:0039-00-00480039-00-0048-C00390000480039000048-C39-00-0048-C3900004839000048-CWM2502TR
