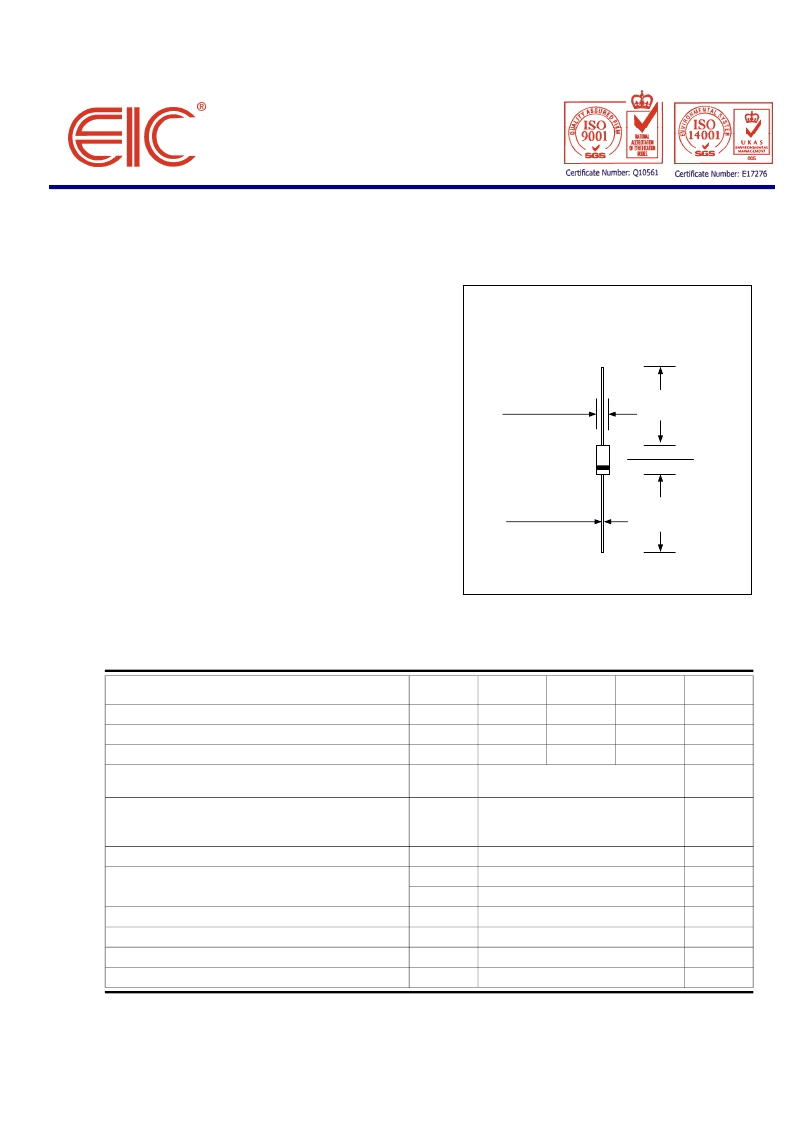

1SR124-100A ~ 1SR124-400A
FAST RECOVERY
RECTIFIER DIODES
PRV : 100 - 400 Volts
Io : 1.0 Ampere
FEATURES :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Fast switching for high efficiency
* Pb / RoHS Free
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.339 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
1SR124
-100
100
1SR124
-200
200
1SR124
-400
400
Maximum Recurrent Peak Reverse Voltage
V
RRM
V
Maximum RMS Voltage
V
RMS
70
140
280
V
Maximum DC Blocking Voltage
V
DC
100
200
400
V
Maximum Average Forward Current
0.375"(9.5mm) Lead Length Ta = 55
°
C
Maximum Peak Forward Surge Current,
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Peak Forward Voltage at I
F
= 1.0 Amp.
V
F
1.3
V
Maximum DC Reverse Current Ta = 25
°
C
I
R
5
μ
A
at Rated DC Blocking Voltage Ta = 100
°
C
I
R(H)
50
μ
A
Maximum Reverse Recovery Time ( Note 1 )
Trr
250
ns
Typical Junction Capacitance ( Note 2 )
C
J
50
pf
Junction Temperature Range
T
J
- 65 to + 150
°
C
Storage Temperature Range
T
STG
- 65 to + 150
°
C
Notes :
(1) Reverse Recovery Test Conditions : I
F
= 0.5 A, I
R
= 1.0 A, Irr = 0.25 A.
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 V
DC
Page 1 of 2
Rev. 02 : March 25, 2005
RATING
SYMBOL
UNIT
A
A
I
F(AV)
I
FSM
35
1.0
Dimensions in inches and ( millimeters )
DO - 41
1.00 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
0.205 (5.2)
0.166 (4.2)
1.00 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
