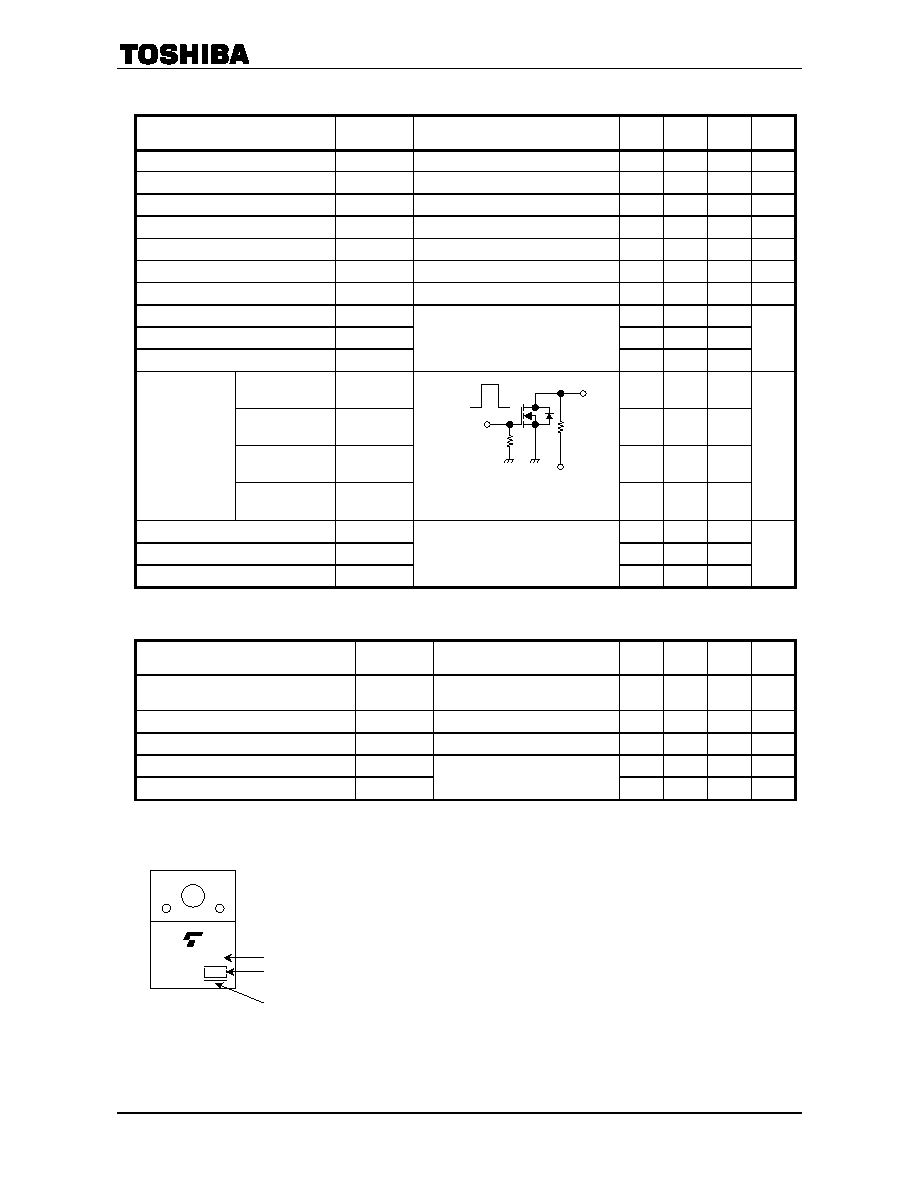

2SK3568
2005-01-11
2
Electrical Characteristics (Ta
= 25°C)
Characteristics
Symbol
Test Condition
Min
Typ.
Max
Unit
Gate leakage current
IGSS
VGS = ±25 V, VDS = 0 V
±10
A
Gate-source breakdown voltage
V (BR) GSS
IG = ±10 A, VDS = 0 V
±30
V
Drain cut-off current
IDSS
VDS = 500 V, VGS = 0 V
100
A
Drain-source breakdown voltage
V (BR) DSS
ID = 10 mA, VGS = 0 V
500
V
Gate threshold voltage
Vth
VDS = 10 V, ID = 1 mA
2.0
4.0
V
Drain-source ON resistance
RDS (ON)
VGS = 10 V, ID = 6 A
0.4
0.52
Forward transfer admittance
Yfs
VDS = 10 V, ID = 6 A
3.5
8.5
S
Input capacitance
Ciss
1500
Reverse transfer capacitance
Crss
15
Output capacitance
Coss
VDS = 25 V, VGS = 0 V, f = 1 MHz
180
pF
Rise time
tr
22
Turn-on time
ton
50
Fall time
tf
36
Switching time
Turn-off time
toff
170
ns
Total gate charge
Qg
42
Gate-source charge
Qgs
23
Gate-drain charge
Qgd
VDD 400 V, VGS = 10 V, ID = 12 A
19
nC
Source-Drain Ratings and Characteristics (Ta
= 25°C)
Characteristics
Symbol
Test Condition
Min
Typ.
Max
Unit
Continuous drain reverse current
(Note 1)
IDR
12
A
Pulse drain reverse current
(Note 1)
IDRP
48
A
Forward voltage (diode)
VDSF
IDR = 12 A, VGS = 0 V
1.7
V
Reverse recovery time
trr
1200
ns
Reverse recovery charge
Qrr
IDR = 12 A, VGS = 0 V,
dIDR/dt = 100 A/s
16
C
Marking
RL =
33
0 V
10 V
VGS
VDD 200 V
ID = 6 A
VOUT
50
Duty <= 1%, tw = 10 s
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
K3568
Part No. (or abbreviation code)
