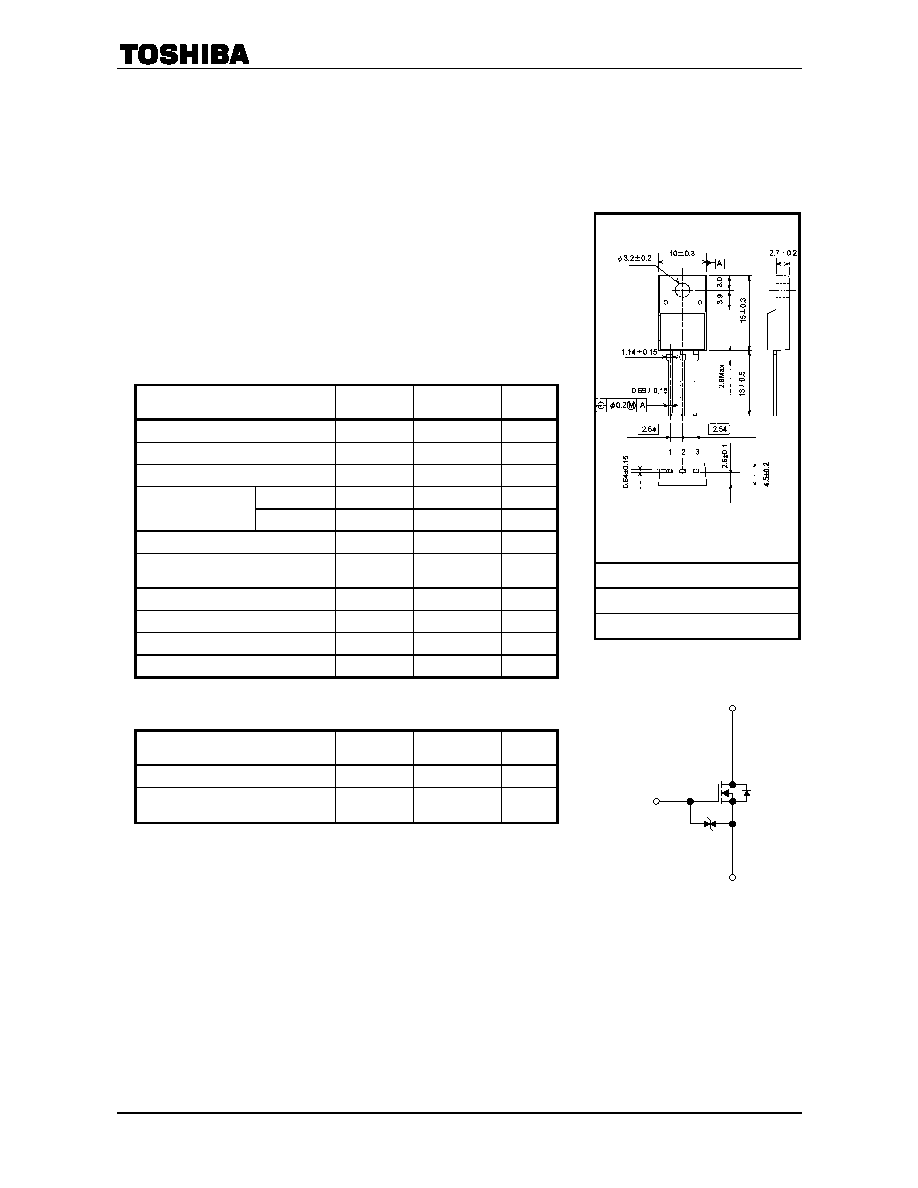

2SK3935
2005-01-24
1
TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (
π-MOSVI)
2SK3935
Switching Regulator Applications
Low drain-source ON resistance
: RDS (ON) = 0.18Ω (typ.)
High forward transfer admittance
: |Yfs| = 10 S (typ.)
Low leakage current : IDSS = 100 A (max) (VDS = 450 V)
Enhancement model : Vth = 2.0 to 4.0 V
(VDS = 10 V, ID = 1 mA)
Maximum Ratings (Ta = 25°C)
Characteristic
Symbol
Rating
Unit
Drain-source voltage
VDSS
450
V
Drain-gate voltage (RGS = 20 k)
VDGR
450
V
Gate-source voltage
VGSS
±30
V
DC
(Note 1)
ID
17
A
Drain current
Pulse(Note 1)
IDP
68
A
Drain power dissipation
PD
50
W
Single pulse avalanche energy
(Note 2)
EAS
918
mJ
Avalanche current
IAR
17
A
Repetitive avalanche energy (Note 3)
EAR
5
mJ
Channel temperature
Tch
150
°C
Storage temperature range
Tstg
55~150
°C
Thermal Characteristics
Characteristic
Symbol
Max
Unit
Thermal resistance, channel to case
Rth (chc)
2.5
°C / W
Thermal resistance, channel to
ambient
Rth (cha)
62.5
°C / W
Note 1: Ensure that the channel temperature does not exceed 150°C during use of the device.
Note 2: VDD = 90 V, Tch = 25°C (initial), L = 5.3 mH, RG = 25Ω, IAR = 17 A
Note 3: Repetitive rating: pulse width limited by maximum channel temperature.
This transistor is an electrostatic-sensitive device. Handle with care.
Unit: mm
JEDEC
JEITA
SC-67
TOSHIBA
2-10U1B
Weight: 1.7 g (typ.)
1. Gate
2. Drain
3. Source
1
3
2
