參數資料
型號： 2SK3943-ZP
元件分類： JFETs
英文描述： 82 A, 40 V, 0.0056 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-263AB
封裝： TO-263, MP-25ZP, 3 PIN
文件頁數： 2/8頁
文件大?。?/td> 195K
代理商： 2SK3943-ZP
Data Sheet D17188EJ2V0DS
2
2SK3943

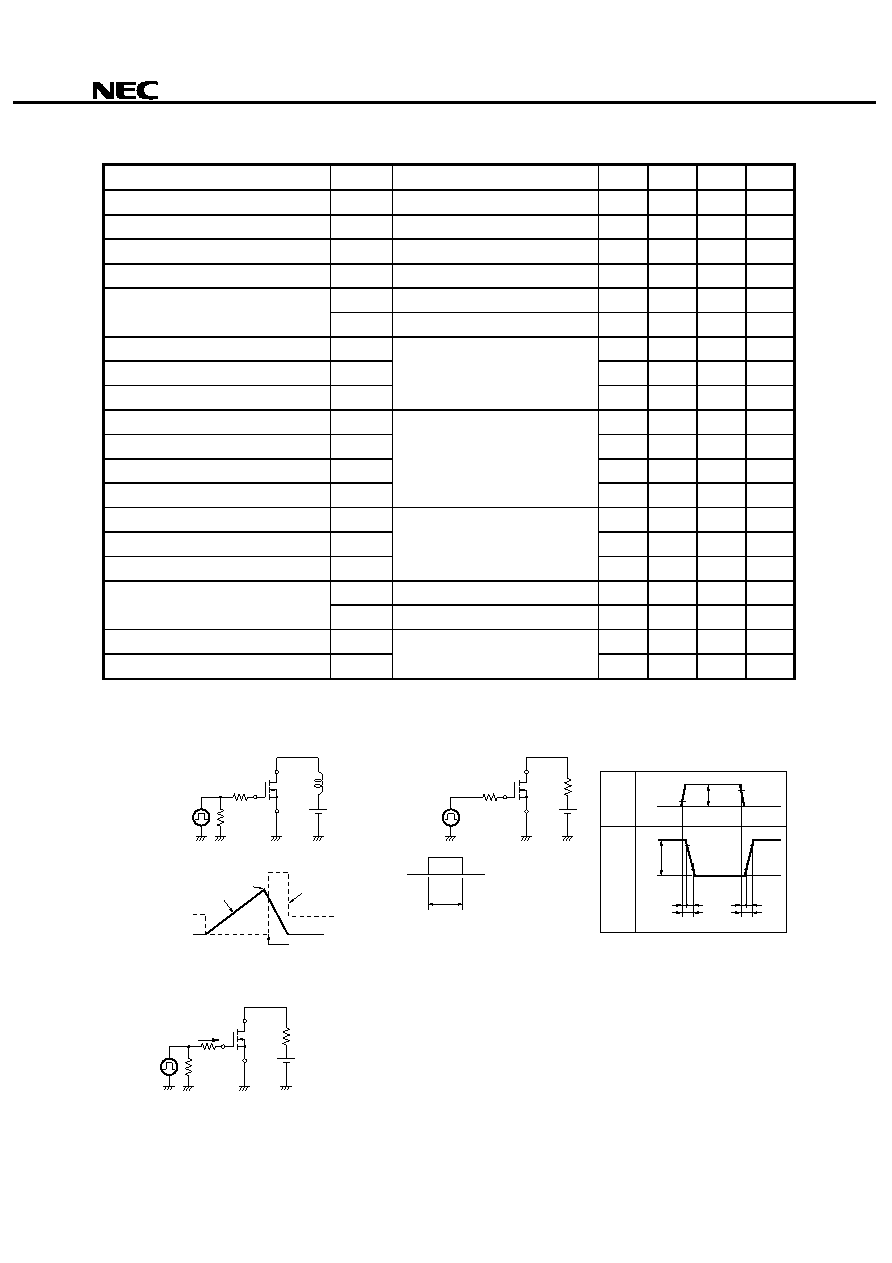

ELECTRICAL CHARACTERISTICS (TA = 25°C)
CHARACTERISTICS
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNIT
Zero Gate Voltage Drain Current
IDSS
VDS = 40 V, VGS = 0 V
1.0
μA
Gate Leakage Current
IGSS
VGS =
±20 V, VDS = 0 V
±10
μA
Gate Cut-off Voltage
VGS(off)
VDS = 10 V, ID = 1 mA
2.0
2.5
3.0
V
Forward Transfer Admittance
Note
| yfs |
VDS = 10 V, ID = 41 A
21
43
S
Drain to Source On-state Resistance
Note
RDS(on)1
VGS = 10 V, ID = 41 A
2.9
3.5
m
Ω
RDS(on)2
VGS = 5.5 V, ID = 41 A
3.8
5.6
m
Ω
Input Capacitance
Ciss
VDS = 10 V
5800
pF
Output Capacitance
Coss
VGS = 0 V
860
pF
Reverse Transfer Capacitance
Crss
f = 1 MHz
510
pF
Turn-on Delay Time
td(on)
VDD = 20 V, ID = 41 A
29
ns
Rise Time
tr
VGS = 10 V
10
ns
Turn-off Delay Time
td(off)
RG = 0
Ω
69
ns
Fall Time
tf
12
ns
Total Gate Charge
QG
VDD = 32 V
93
nC
Gate to Source Charge
QGS
VGS = 10 V
28
nC
Gate to Drain Charge
QGD
ID = 82 A
28
nC
Body Diode Forward Voltage
Note
VF(S-D)1
IF = 60 A, VGS = 0 V
0.88
1.2
V
VF(S-D)2
IF = 82 A, VGS = 0 V
0.92
1.5
V
Reverse Recovery Time
trr
IF = 82 A, VGS = 0 V
40
ns
Reverse Recovery Charge
Qrr
di/dt = 100 A/
μs
49
nC
Note Pulsed
TEST CIRCUIT 3 GATE CHARGE
VGS = 20
→ 0 V
PG.
RG = 25
Ω
50
Ω
D.U.T.
L
VDD
TEST CIRCUIT 1 AVALANCHE CAPABILITY
PG.
D.U.T.
RL
VDD
TEST CIRCUIT 2 SWITCHING TIME
RG
PG.
IG = 2 mA
50
Ω
D.U.T.
RL
VDD
ID
VDD
IAS
VDS
BVDSS
Starting Tch
VGS
0
τ = 1 s
Duty Cycle
≤ 1%
τ
VGS
Wave Form
VDS
Wave Form
VGS
VDS
10%
0
90%
VGS
VDS
ton
toff
td(on)
tr
td(off)
tf
10%
μ
