2SK3947
2005-03-22
2

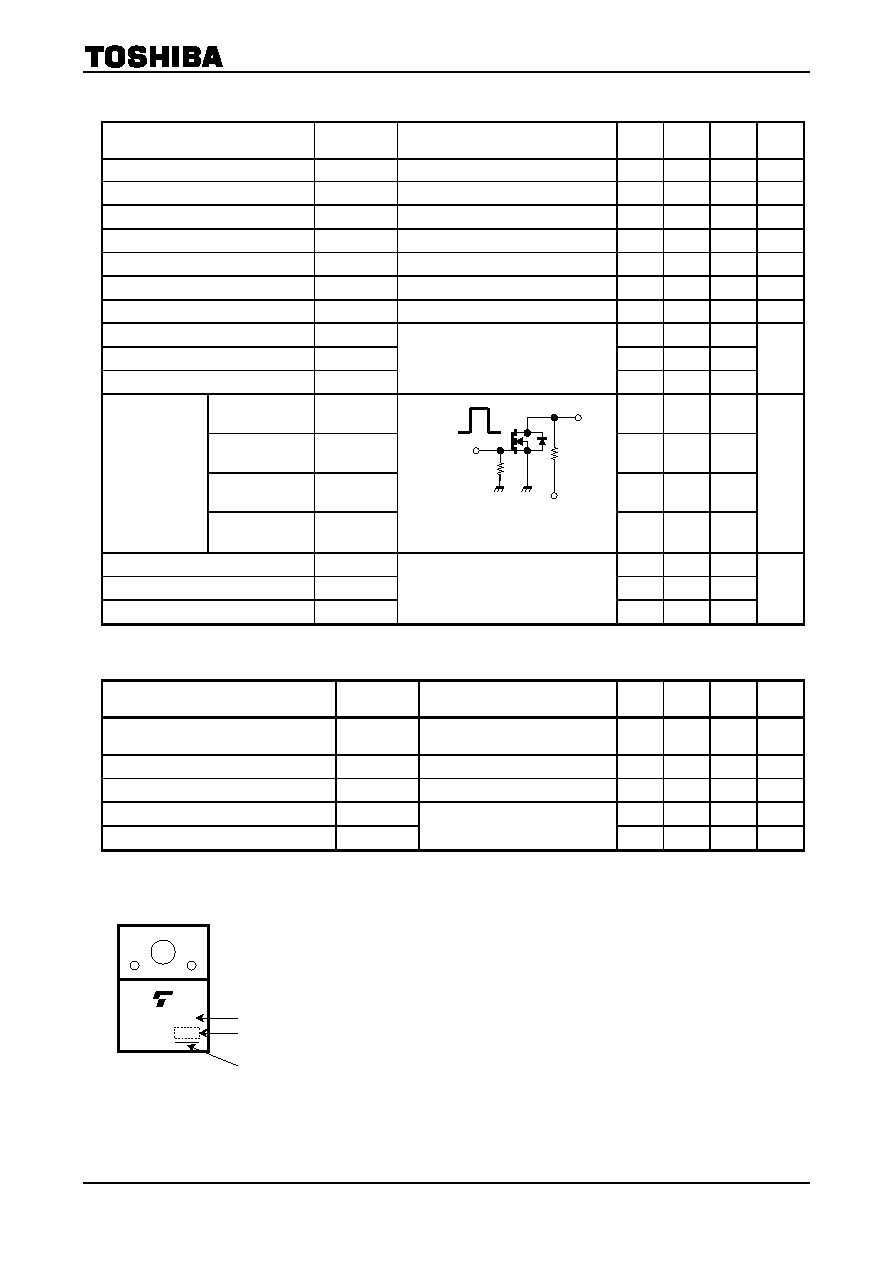

Electrical Characteristics (Ta ==== 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Gate leakage current
IGSS
VGS = ±25 V, VDS = 0 V
±10
A
Gate-source breakdown voltage
V (BR) GSS
IG = ±10 A, VGS = 0 V
±30
V
Drain cutoff current
IDSS
VDS = 600 V, VGS = 0 V
100
A
Drain-source breakdown voltage
V (BR) DSS
ID = 10 mA, VGS = 0 V
600
V
Gate threshold voltage
Vth
VDS = 10 V, ID = 1 mA
2.0
4.0
V
Drain-source ON-resistance
RDS (ON)
VGS = 10 V, ID = 3 A
1.1
1.4
Forward transfer admittance
Yfs
VDS = 10 V, ID = 3 A
1.2
5.0
S
Input capacitance
Ciss
1050
Reverse transfer capacitance
Crss
10
Output capacitance
Coss
VDS = 25 V, VGS = 0 V, f = 1 MHz
110
pF
Rise time
tr
20
Turn-on time
ton
40
Fall time
tf
35
Switching time
Turn-off time
toff
130
ns
Total gate charge
Qg
28
Gate-source charge
Qgs
16
Gate-drain charge
Qgd
VDD 400 V, VGS = 10 V, ID = 6 A
12
nC
Source-Drain Ratings and Characteristics (Ta ==== 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Continuous drain reverse current
(Note 1)
IDR
6
A
Pulse drain reverse current
(Note 1)
IDRP
24
A
Forward voltage (diode)
VDSF
IDR = 6 A, VGS = 0 V
1.7
V
Reverse recovery time
trr
140
ns
Reverse recovery charge
Qrr
IDR = 6 A, VGS = 0 V,
dIDR/dt = 100 A/s
0.3
C
Marking
RL =
66
0 V
10 V
VGS
VDD 200 V
ID = 3 A
VOUT
50
Duty <= 1%, tw = 10 s
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
K3947
Part No. (or abbreviation code)
