DG417/418/419
Vishay Siliconix
www.vishay.com
S FaxBack 408-970-5600
4-2
Document Number: 70051
S-52433—Rev. E, 06-Sep-99
ORDERING INFORMATION
Temp Range
Package
Part Number
DG417/418
40
85 C
8-Pin Plastic MiniDIP
DG417DJ
–40 to 85
_C
8-Pin Plastic MiniDIP
DG418DJ
–40 to 85
_C
8-Pin Narrow SOIC
DG417DY
8-Pin Narrow SOIC
DG418DY
–55 to 125
_C
8-Pin CerDIP
DG417AK, DG417AK/883, 5962-90701MPA
–55 to 125
_C
8-Pin CerDIP
DG418AK, DG418AK/883, 5962-90702MPA
DG419
–40 to 85
_C
8-Pin Plastic MiniDIP
DG419DJ
–40 to 85
_C
8-Pin Narrow SOIC
DG419DY
–55 to 125
_C
8-Pin CerDIP
DG419AK, DG419AK/883, 5962-90703MPA
NOTE: SMD product is dual marked with /883 number.
ABSOLUTE MAXIMUM RATINGS
Voltages Referenced to V–
V+
44 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GND
25 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VL
(GND –0.3 V) to (V+) + 0.3 V
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Digital Inputsa VS, VD
(V–) –2 V to (V+) + 2 V
. . . . . . . . . . . . . . . . . . . . . . . . . .
or 30 mA, whichever occurs first
Current, (Any Terminal) Continuous
30 mA
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current (S or D) Pulsed 1 ms, 10% duty cycle
100 mA
. . . . . . . . . . . . . . . . . .
Storage Temperature
(AK Suffix)
–65 to 150
_C
. . . . . . . . . . . . . . . . . .
(DJ, DY Suffix)
–65 to 125
_C
. . . . . . . . . . . . . .
Power Dissipation (Package)b
8-Pin Plastic MiniDIPc
400 mW
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-Pin Narrow SOICd
400 mW
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-Pin CerDIPe
600 mW
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes:
a.
Signals on SX, DX, or INX exceeding V+ or V– will be clamped by internal
diodes. Limit forward diode current to maximum current ratings.
b.
All leads welded or soldered to PC Board.
c.
Derate 6 mW/
_C above 75_C
d.
Derate 6.5 mW/
_C above 75_C
e.
Derate 12 mW/
_C above 75_C

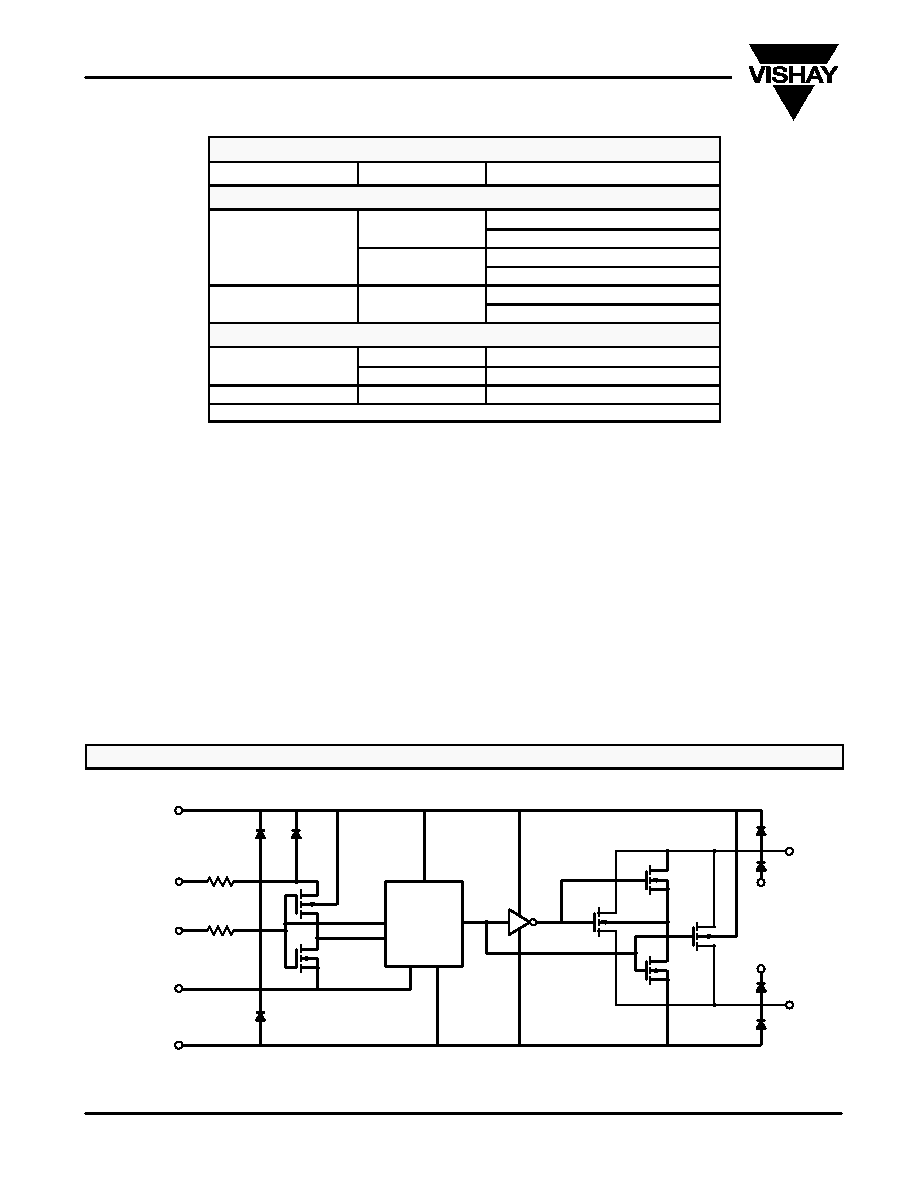

SCHEMATIC DIAGRAM (TYPICAL CHANNEL)
FIGURE 1.
Level
Shift/
Drive
VIN
VL
S
V+
GND
V–
D
V–
V+
