19

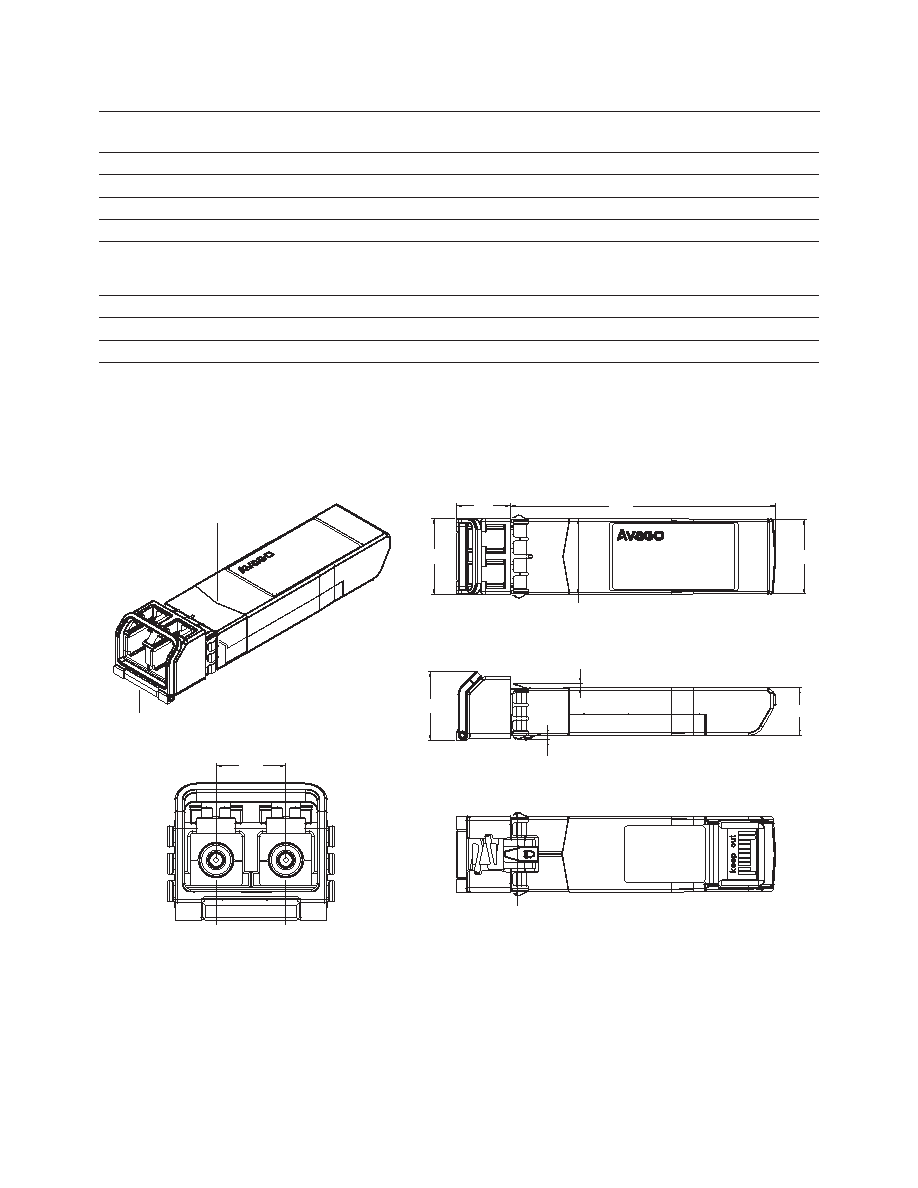

Figure 6. Module drawing
TCASE REFERENCE POINT
LATCH COLOR
BLUE: 10GBASELR
0.82 UNCOMPRESSED
0.69 UNCOMPRESSED
6.25
TX
RX
14.9 UNCOMPRESSED
12.27
8.5 ±0.1
13.7
9.7
13.6
47.5
13.4 ±0.1
Table 16. EEPROM Serial ID Memory Contents - Extended Control/Status (Address A2h, Byte 118)
Bit #
Status/
Control Name
Description
Notes
7
Reserved
6
Reserved
5
Reserved
4
Reserved
3
Soft RS1 Select
Read/write bit that allows software Tx rate control. Writing '1' selects full speed
Tx operation. Power on default is logic zero/low. This bit is OR'd with the hard-
ware RS1 pin value (see Appendix).
1
2
Reserved
1
Class2 Operation State
Value=0. Power class2 operation is not active.
0
Power Class Select
Has no eect.
Notes:
1. The response time for soft commands of the AFCT-701SDDZ is 100ms as specied by SFF-8472.
