| 型號： | AT-358PIN |
| 元件分類： | 衰減器 |
| 英文描述： | 20 MHz - 2000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.7 dB INSERTION LOSS-MAX |
| 封裝： | T0-8-2, 12 PIN |
| 文件頁數： | 2/2頁 |
| 文件大?。?/td> | 30K |
| 代理商： | AT-358PIN |
Parameter
Absolute Maximum1
Max. Input Power
0.05 GHz
+27 dBm
0.5 – 2.0 GHz
+32 dBm
Bias Voltage
0.5 to +7 V
Control Voltage
-0.5 to V bias + 0.5 V
Operating Temperature
–55C to +125C
Storage Temperature
–65C to +150C
Typical Performance
1. Operation of this device above any one of these parameters may
cause permanent damage.
Absolute Maximum Ratings
0
-0.5
-1.0
-1.5
-2.0
-2.5
FREQUENCY (GHz)
LOSS
(dB)

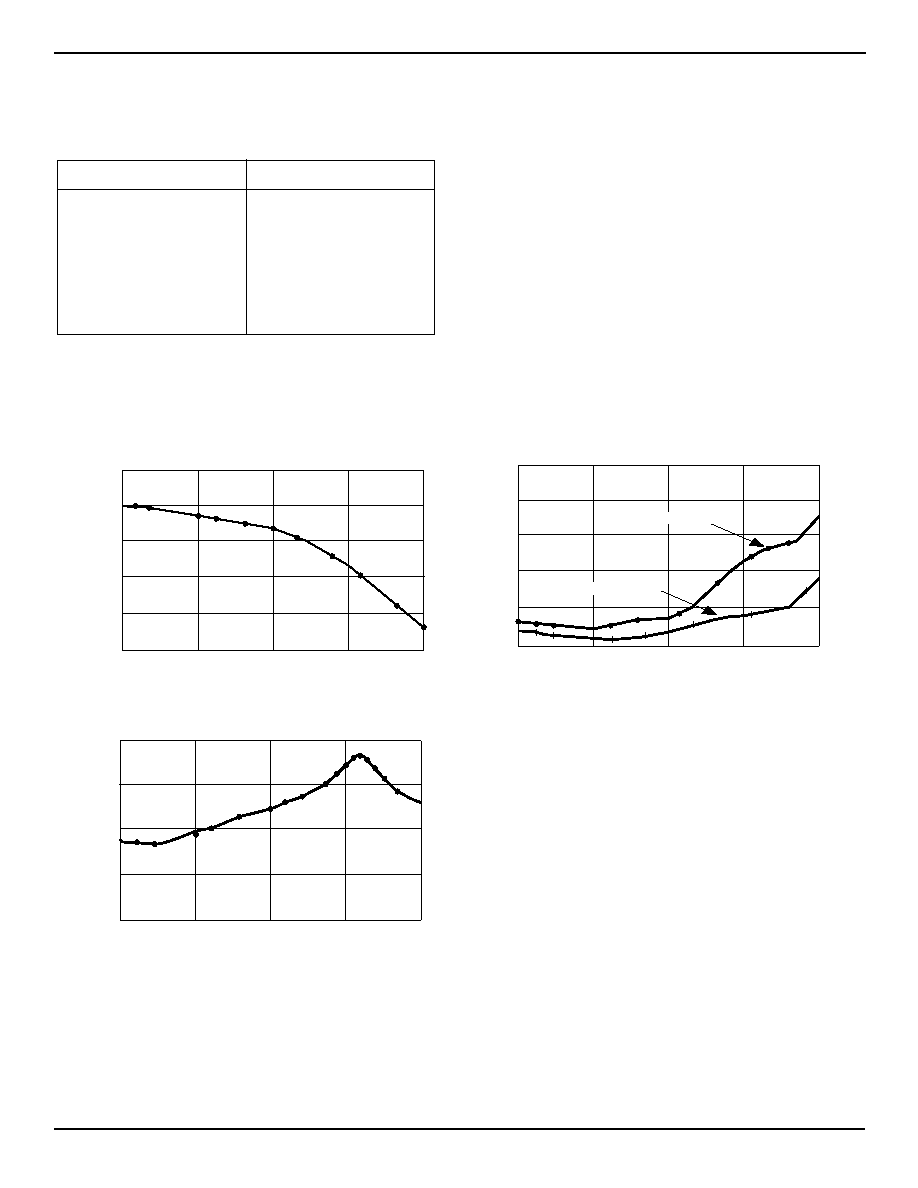

REFERENCE INSERTION LOSS vs FREQUENCY
0.5
0.02
1.0
1.5
2.0
FREQUENCY (GHz)
DEVIATION
FROM
NOMINAL
ATTENUATION
(dB)
ATTENUATION FLATNESS vs FREQUENCY
0.02
0.5
1.0
1.5
2.0
-0.5
-0.25
0
+0.25
+0.5
ATTENUATION STATE
LOSS STATE
1.4
1.2
VSWR
VSWR vs FREQUENCY
2.0
1.8
1.6
1.0
FREQUENCY (GHz)
0.5
0.02
1.0
1.5
2.0
Specifications Subject to Change Without Notice.
V2.01
1-Bit, 10 dB, GaAs Digital Attenuator
AT-358
