型號： ATS612LSB
元件分類： 速度傳感器和接近開關
英文描述： PROXIMITY SENSOR-HALL EFFECT, 0.4-2.5mm, 0.40V, ROUND, THROUGH HOLE MOUNT
封裝： PLASTIC PACKAGE-4
文件頁數： 11/17頁
文件大?。?/td> 386K
代理商： ATS612LSB
115 Northeast Cutoff, Box 15036
Worcester, Massachusetts 01615-0036 (508) 853-5000
ATS612LSB
DYNAMIC, SELF-CALIBRATING, PEAK-DETECTING,
DIFFERENTIAL HALL-EFFECT GEAR-TOOTH SENSOR
2

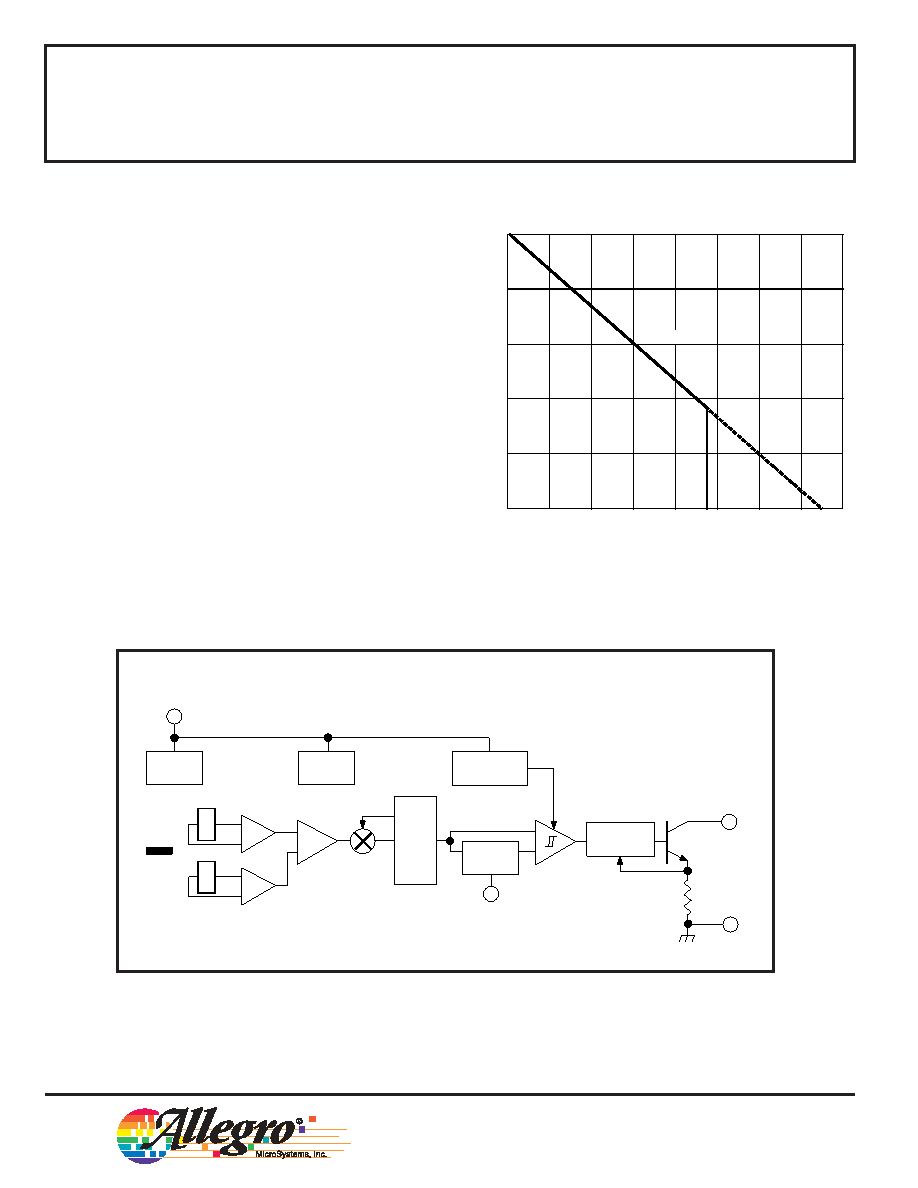

FUNCTIONAL BLOCK DIAGRAM
UVLO
SUPPLY
REG
+
–
1
E2
MAGNET
E1
X
OUTPUT
Dwg. FH-014-1
GROUND
2
4
CAPACITOR
3
POWER-ON
LOGIC
+
–
TRACK &
HOLD
GAIN
REFERENCE
GENERATOR
CURRENT
LIMIT
FEATURES AND BENEFITS
■ Fully Optimized Differential Digital Gear-Tooth Sensor
■ Single-Chip Sensing IC for High Reliability
■ Digital Output Representing Target Profile
■ Extremely Low Timing Accuracy Drift with Temperature
■ Large Operating Air Gaps
■ Small Mechanical Size
■ Optimized Magnetic Circuit
■ Patented Peak-Detecting Filter:
80
s Typical Power-On Time
<10 RPM Operation (single-tooth target)
Correct First-Edge Detection
Uses Small Value Ceramic Capacitors
■ Under-Voltage Lockout
■ Wide Operating Voltage Range
■ Defined Power-On State
600
400
200
40
80
120
160
0
AMBIENT TEMPERATURE IN
°°°°C
ALLOWABLE
PACKAGE
POWER
DISSIPATION
IN
mW
Dwg. GH-065-7
60
100
140
180
20
800
1000
RθJA = 150
°C/W
Copyright 2001, 2002 Allegro MicroSystems, Inc.
