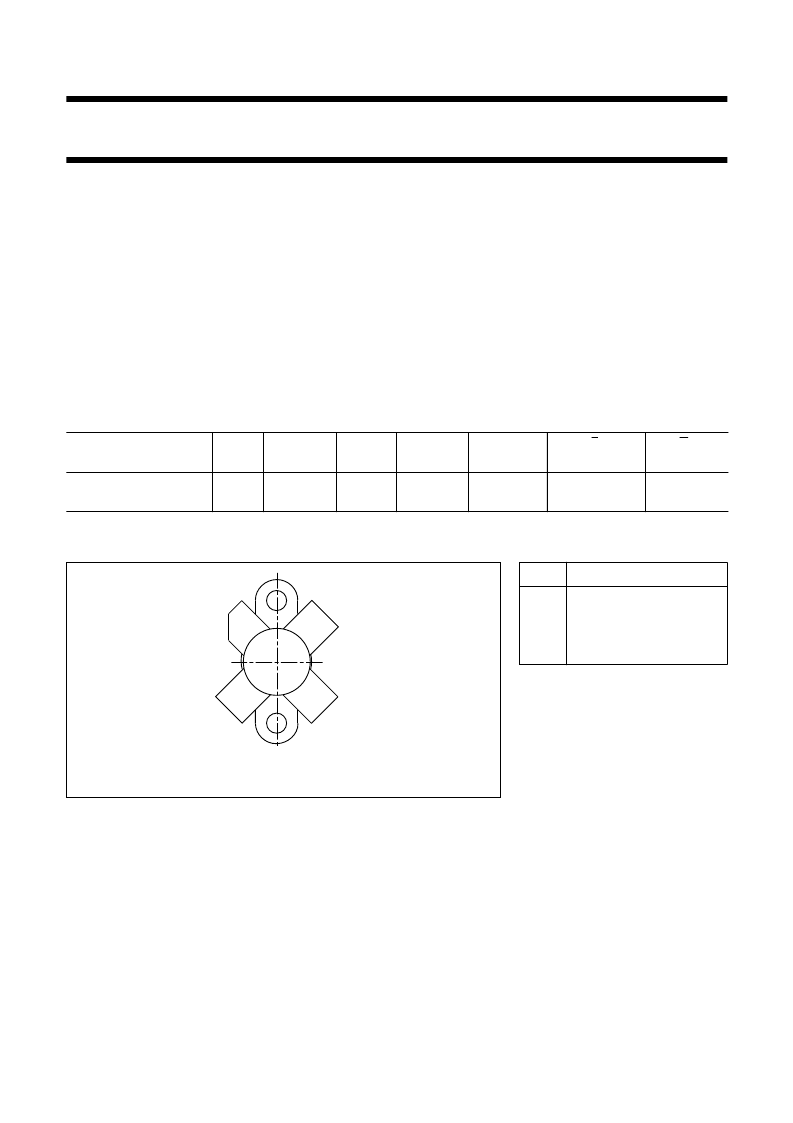

August 1986
2
Philips Semiconductors
Product specification
VHF power transistor
BLV10
DESCRIPTION
N-P-N silicon planar epitaxial
transistor intended for use in class-A,
B and C operated mobile, h.f. and
v.h.f. transmitters with a nominal
supply voltage of 13,5 V. The
transistor is resistance stabilized and
is guaranteed to withstand severe
load mismatch conditions with a
supply over-voltage to 16,5 V.
It has a 3/8” flange envelope with a
ceramic cap. All leads are isolated
from the flange.
QUICK REFERENCE DATA
R.F. performance up to T
h
= 25
°
C in an unneautralized common-emitter class-B circuit
MODE OF OPERATION
V
CE
V
f
MHz
P
L
W
G
P
dB
η
%
z
i
Y
L
mS
c.w.
c.w.
13,5
12,5
175
175
8
8
>
typ. 10,5
9,0
>
typ. 75
70
2,8
+
j1,2
76
j16
PIN CONFIGURATION
Fig.1 Simplified outline, SOT123.
handbook, halfpage
1
2
3
4
MSB057
PINNING
PIN
DESCRIPTION
1
2
3
4
collector
emitter
base
emitter
PRODUCT SAFETY This device incorporates beryllium oxide, the dust of which is toxic. The device is entirely
safe provided that the BeO disc is not damaged.
