EH1345TTS-66.6667M-G
Supply
Voltage
(VDD)

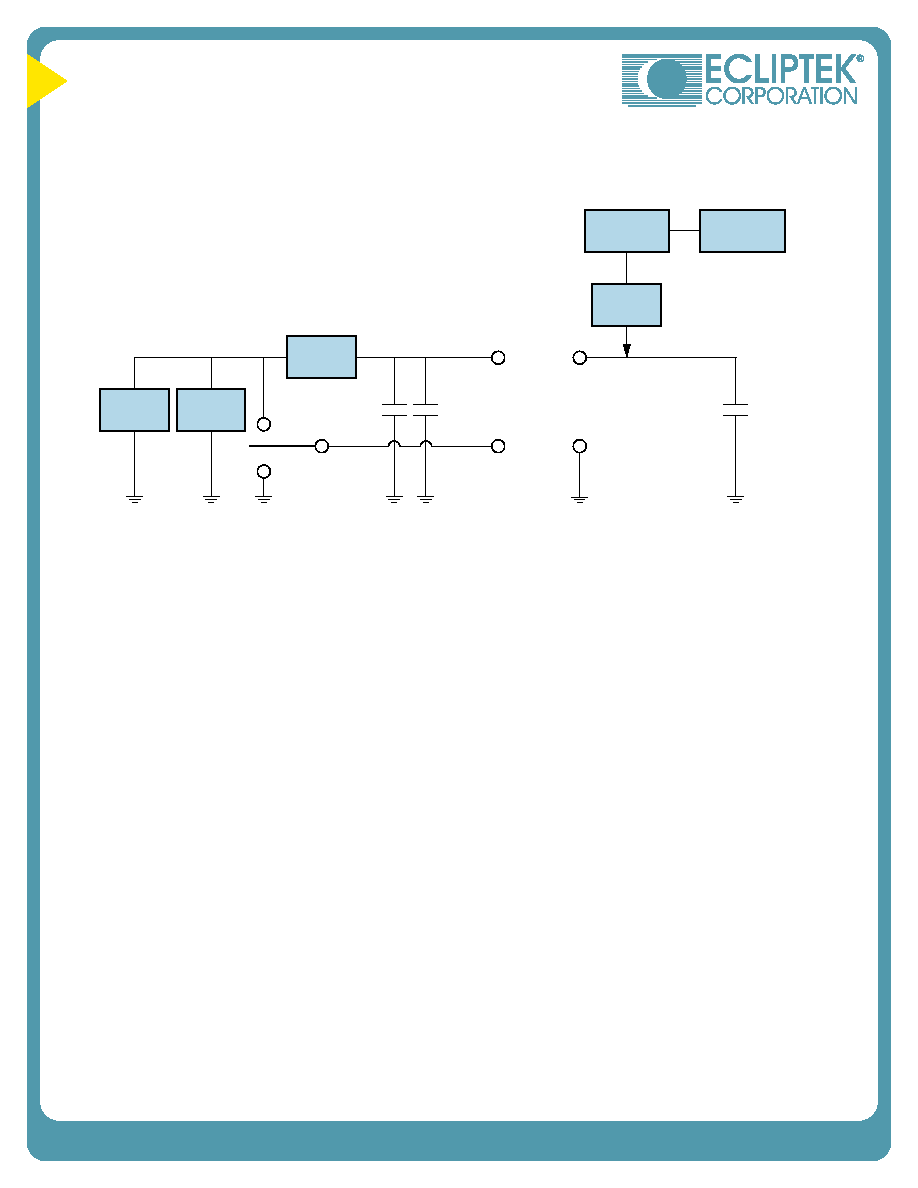

Test Circuit for CMOS Output
Output
No Connect
or Tri-State
Ground
+
_
Power
Supply
0.01F
(Note 1)
0.1F
(Note 1)
CL
(Note 3)
Note 1: An external 0.1F low frequency tantalum bypass capacitor in parallel with a 0.01F high frequency
ceramic bypass capacitor close to the package ground and VDD pin is required.
Note 2: A low capacitance (<12pF), 10X attenuation factor, high impedance (>10Mohms), and high bandwidth
(>300MHz) passive probe is recommended.
Note 3: Capacitance value CL includes sum of all probe and fixture capacitance.
Voltage
Meter
Current
Meter
Oscilloscope
Frequency
Counter
Probe
(Note 2)
www.ecliptek.com | Specification Subject to Change Without Notice | Rev C 3/12/2011 | Page 3 of 6
