2002 Fairchild Semiconductor Corporation
IRFR320, IRFU320 Rev. B
IRFR320, IRFU320
3.1A, 400V, 1.800 Ohm, N-Channel Power
MOSFETs
These are N-Channel enhancement mode silicon gate
power field effect transistors. They are advanced power
MOSFETs designed, tested, and guaranteed to withstand a
specified level of energy in the breakdown avalanche mode
of operation. All of these power MOSFETs are designed for
applications such as switching regulators, switching
convertors, motor drivers, relay drivers, and drivers for high
power bipolar switching transistors requiring high speed and
low gate drive power. These types can be operated directly
from integrated circuits.
Formerly developmental type TA17404.
Features
3.1A, 400V
r
DS(ON)
= 1.800
Single Pulse Avalanche Energy Rated
SOA is Power Dissipation Limited
Nanosecond Switching Speeds
Linear Transfer Characteristics
High Input Impedance
Related Literature
- TB334 “Guidelines for Soldering Surface Mount
Components to PC Boards”
Symbol
Packaging
JEDEC TO-251AA
JEDEC TO-252AA
Ordering Information
PART NUMBER
PACKAGE
BRAND
IRFR320
TO-252AA
IFR320
IRFU320
TO-251AA
IFU320
NOTE: When ordering, use the entire part number. Add the suffix 9A
to obtain the TO-252AA variant in tape and reel, i.e., IRFR3209A.
G
D
S
GATE
DRAIN (FLANGE)
SOURCE
DRAIN
SOURCE
DRAIN
GATE
DRAIN
(FLANGE)

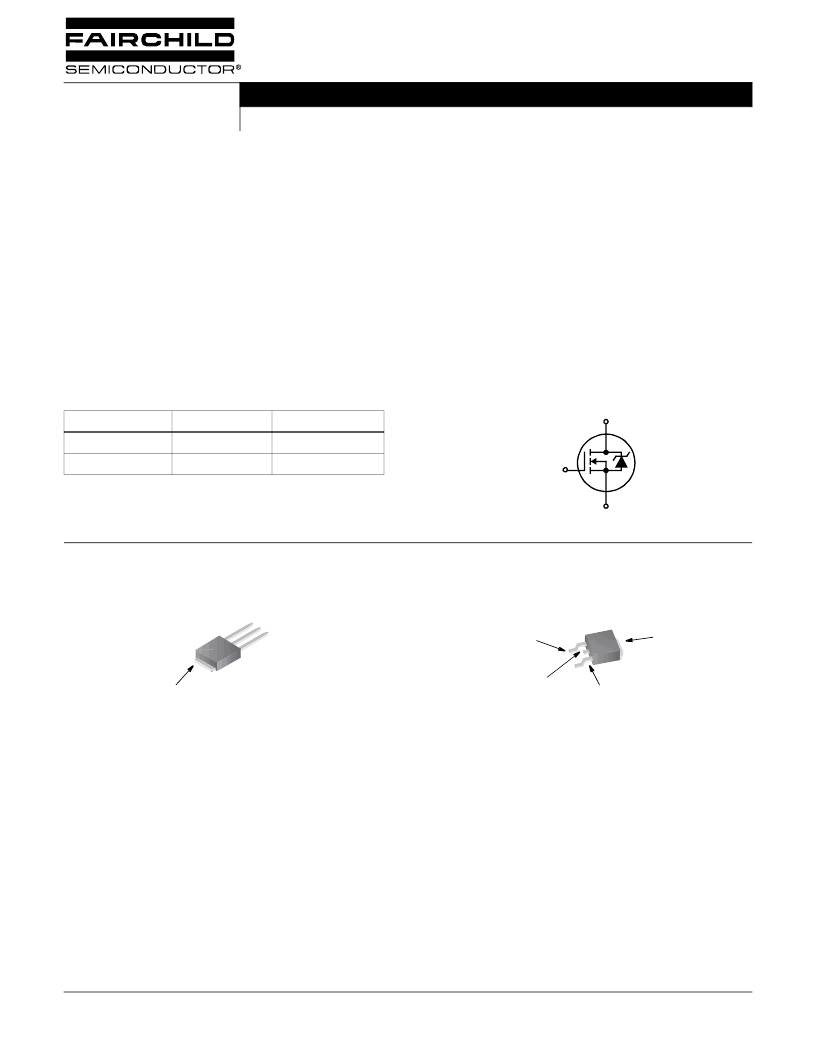

Data Sheet
January 2002
