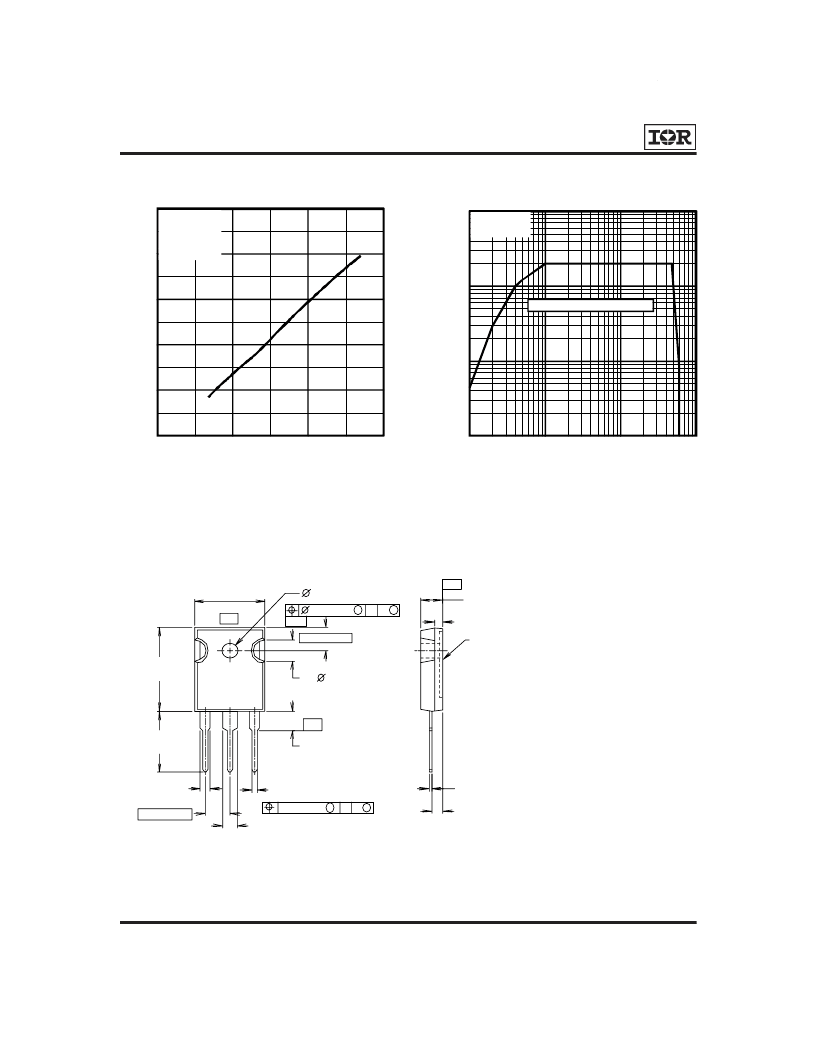

IRGPC40F
Fig. 12
- Turn-Off SOA
Fig. 11 -
Typical Switching Losses vs.
Collector-to-Emitter Current
Dimensions in Millimeters and (Inches)
CONFORMS TO JEDEC OUTLINE TO-247AC (TO-3P)
- D -
5.30 (.209)
4.70 (.185)
2.50 (.089)
1.50 (.059)
4
3.65 (.143)
3.55 (.140)
0.25 (.010)
3X
0.80 (.031)
0.40 (.016)
2.60 (.102)
2.20 (.087)
3.40 (.133)
3.00 (.118)
3X
0.25 (.010)
M
C
A
S
4.30 (.170)
3.70 (.145)
- C -
2X
5.50 (.217)
4.50 (.177)
5.50 (.217)
1.40 (.056)
1.00 (.039)
D
M
M
B
- A -
15.90 (.626)
15.30 (.602)
- B -
1
2
3
20.30 (.800)
19.70 (.775)
14.80 (.583)
14.20 (.559)
2.40 (.094)
2.00 (.079)
2X
5.45 (.215)
2X
*
NOTES:
1 DIMENSIONS & TOLERANCING
PER ANSI Y14.5M, 1982.
2 CONTROLLING DIMENSION : INCH.
3 DIMENSIONS ARE SHOWN
MILLIMETERS (INCHES).
4 CONFORMS TO JEDEC OUTLINE
TO-247AC.
LEAD ASSIGNMENTS
1 - GATE
2 - COLLECTOR
3 - EMITTER
4 - COLLECTOR
*
LONGER LEADED (20mm)
VERSION AVAILABLE (TO-247AD)
TO ORDER ADD "-E" SUFFIX
TO PART NUMBER
0
4
8
12
16
20
0
20
40
60
T
I , Collector-to-Emitter Current (A)
R = 10
T = 150°C
V = 480V
V = 15V
1
10
100
1000
1
10
100
1000
C
V , Collector-to-Emitter Voltage (V)
I
SAFE OPERATING AREA
V = 20V
T = 125°C
