LTC2413
23
sn2413 2413fs
APPLICATIU
W
U
U
CS is discharging; therefore, the internal serial clock
timing mode is automatically selected if SCK is floating. It
is important to ensure there are no external drivers pulling
SCK LOW while CS is discharging.
PRESERVING THE CONVERTER ACCURACY
The LTC2413 is designed to reduce as much as possible
the conversion result sensitivity to device decoupling,
PCB layout, antialiasing circuits, line frequency perturba-
tions and so on. Nevertheless, in order to preserve the
extreme accuracy capability of this part, some simple
precautions are desirable.
Digital Signal Levels
The LTC2413’s digital interface is easy to use. Its digital
inputs (F
O
, CS and SCK in External SCK mode of operation)
accept standard TTL/CMOS logic levels and the internal
hysteresis receivers can tolerate edge rates as slow as
100
μ
s. However, some considerations are required to take
advantage of the exceptional accuracy and low supply
current of this converter.
The digital output signals (SDO and SCK in Internal SCK
mode of operation) are less of a concern because they are
not generally active during the conversion state.
While a digital input signal is in the range 0.5V to
(V
CC
–0.5V), the CMOS input receiver draws additional
current from the power supply. It should be noted that,
when any one of the digital input signals (F
O
, CS and SCK
in External SCK mode of operation) is within this range, the
LTC2413 power supply current may increase even if the
signal in question is at a valid logic level. For micropower
operation, it is recommended to drive all digital input
signals to full CMOS levels [V
IL
< 0.4V and V
IH
>
(V
CC
– 0.4V)].
During the conversion period, the undershoot and/or
overshoot of a fast digital signal connected to the LTC2413
pins may severely disturb the analog to digital conversion
process. Undershoot and overshoot can occur because of
the impedance mismatch at the converter pin when the
transition time of an external control signal is less than
twice the propagation delay from the driver to LTC2413.
For reference, on a regular FR-4 board, signal propagation

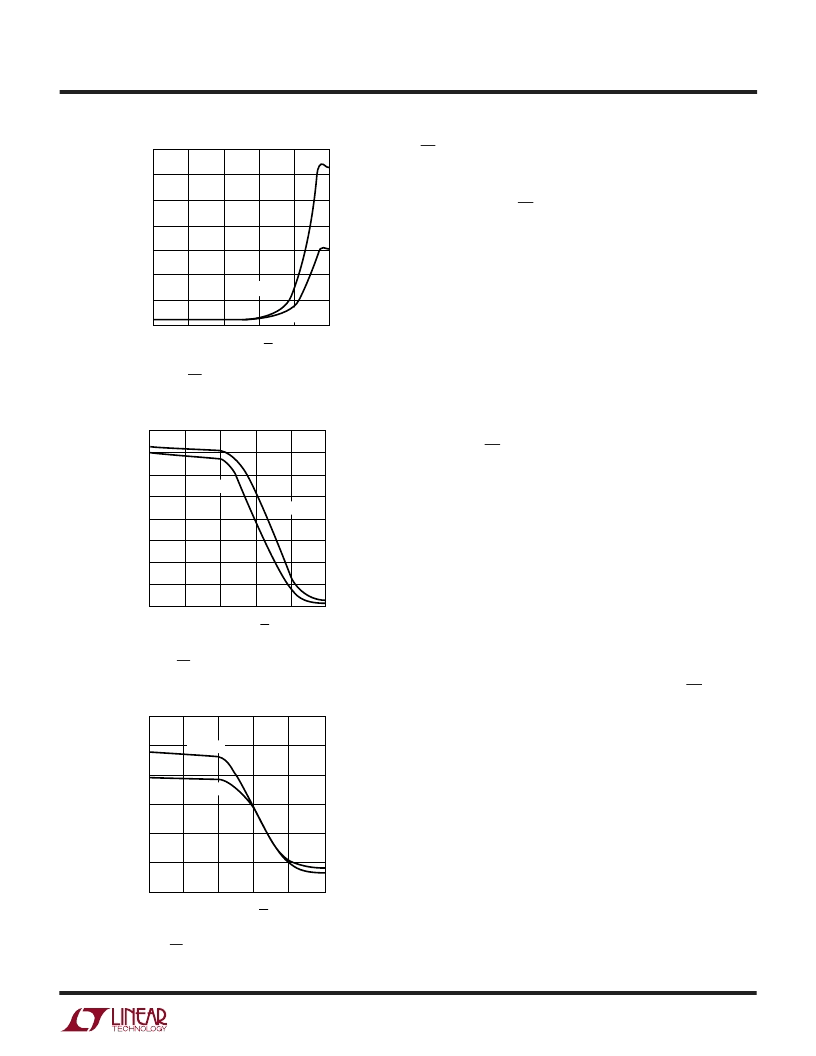

Figure 13. CS Capacitance vs t
SAMPLE
Figure 14. CS Capacitance vs Output Rate
Figure 15. CS Capacitance vs Supply Current
CAPACITANCE ON CS (pF)
1
5
6
7
1000
10000
2413 F13
4
3
10
100
100000
2
1
0
t
S
V
CC
= 5V
V
CC
= 3V
CAPACITANCE ON CS (pF)
0
S
3
4
5
1000
100000
2413 F14
2
1
0
10
100
10000
6
7
8
V
CC
= 5V
V
CC
= 3V
CAPACITANCE ON CS (pF)
1
0
S
μ
A
R
)
50
100
150
200
250
300
10
100
1000
10000
2413 F15
100000
V
CC
= 5V
V
CC
= 3V
