Tel: +44 1460 256 100
Fax: +44 1460 256 101
www.golledge.com
Golledge Electronics Ltd
Ashwell Park, Ilminster
Somerset, TA19 9DX, UK
SAW Resonator 434.42 MHz
Model: TC434ED-A
Part No: MA05199
REV NO.: 2
TC434ED-A v2
2

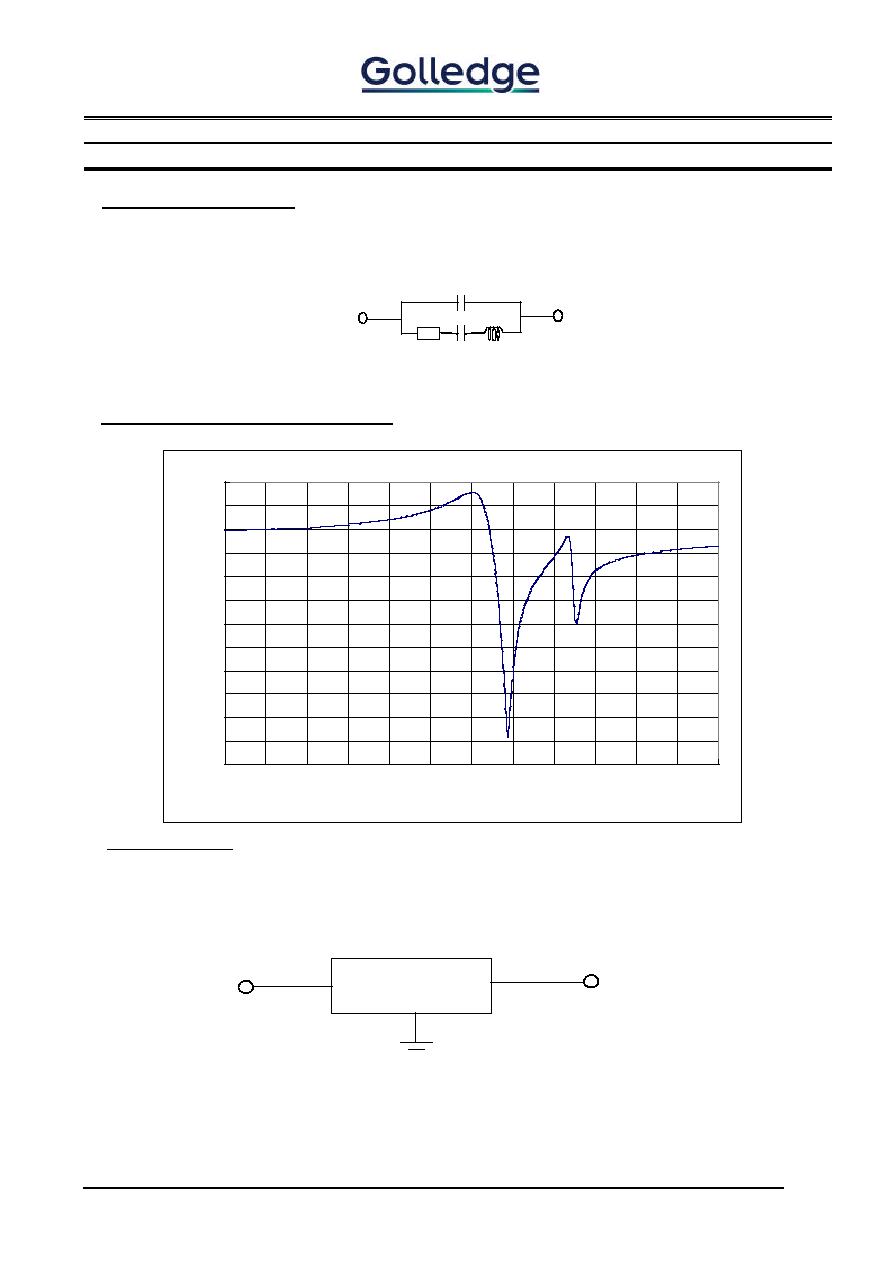

E.EQUIVALENT CIRCUIT:
One-Port Resonator:
C0
R1
C1
L1
#2
#6
Source Impedance
Load Impedance
50O
F.FREQUENCY CHARACTERISTICS:
Resonator434.42MHzFrequencyCharactristics(S21)
-30
-25
-20
-15
-10
-5
0
432.92
433.42
433.92
434.42
434.92
435.42
435.92
Frequency(CenterFrequency434.42MHz Span 3MHz)
dB
G. TEST CIRCUIT:
50
Network analyzer
50
SAW Resonator
2
6
1? 3? 5? 7
To 50O
Network
Analyzer
From 50O
Network
Analyzer
