6–7
Packaging Specifications
Motorola Small–Signal Transistors, FETs and Diodes Device Data
TO–92 EIA RADIAL TAPE IN FAN FOLD BOX OR ON REEL
ADHESIVE TAPE ON
TOP SIDE
FLAT SIDE
CARRIER
STRIP
FLAT SIDE OF TRANSISTOR
AND ADHESIVE TAPE VISIBLE.
ADHESIVE TAPE ON
TOP SIDE
ROUNDED SIDE
CARRIER
STRIP
ROUNDED SIDE OF TRANSISTOR AND
ADHESIVE TAPE VISIBLE.
252 mm
9.92”
58 mm
2.28”
MAX
13”
MAX
330 mm
Style M fan fold box is equivalent to styles E and F of
reel pack dependent on feed orientation from box.
Style P fan fold box is equivalent to styles A and B of
reel pack dependent on feed orientation from box.
100 GRAM
PULL FORCE
16 mm
HOLDING
FIXTURE
HOLDING
FIXTURE
HOLDING
FIXTURE
16 mm
70 GRAM
PULL FORCE
500 GRAM PULL FORCE
The component shall not pull free with a 300 gram
load applied to the leads for 3
± 1 second.
The component shall not pull free with a 70 gram
load applied to the leads for 3
± 1 second.
There shall be no deviation in the leads and
no component leads shall be pulled free of
the tape with a 500 gram load applied to the
component body for 3
± 1 second.

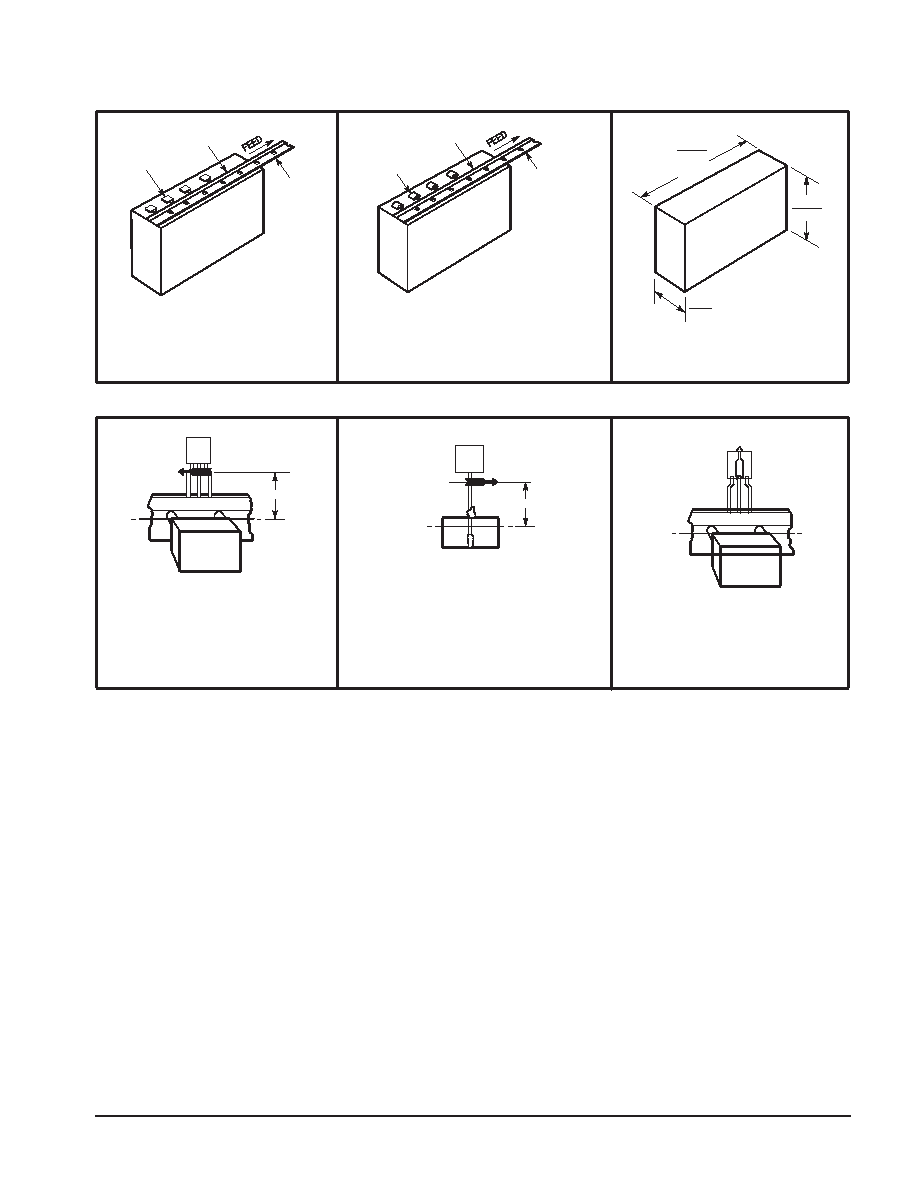

Figure 2. Style M
Figure 3. Style P
Figure 4. Fan Fold Box Dimensions
Figure 5. Test #1
Figure 6. Test #2
Figure 7. Test #3
ADHESION PULL TESTS
FAN FOLD BOX STYLES
