4
RF Device Data
Freescale Semiconductor
MRF7S15100HR3 MRF7S15100HSR3

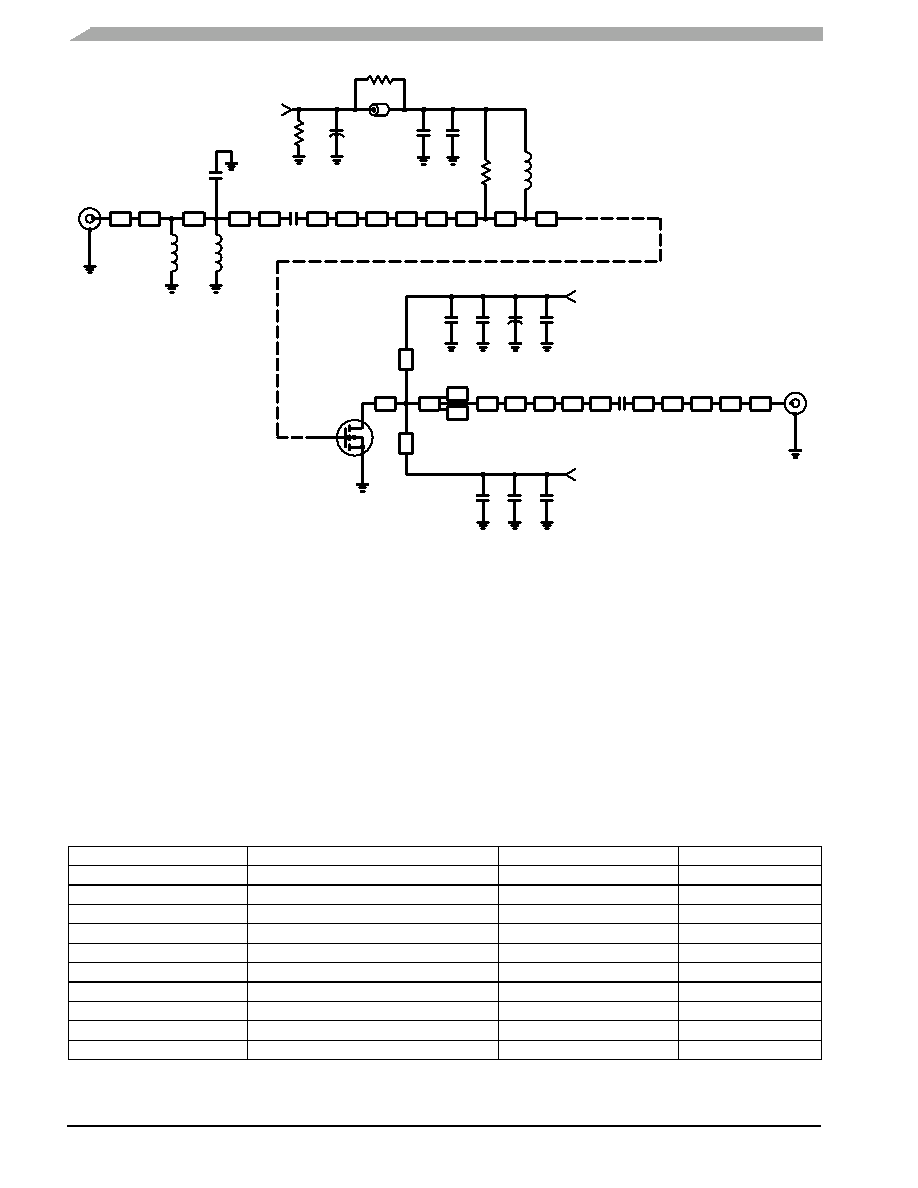

Figure 1. MRF7S15100HR3(HSR3) Test Circuit Schematic
Z15
1.330″ x 0.538″ Microstrip
Z16
0.270″ x 0.280″ Microstrip
Z17
0.187″ x 0.150″ Microstrip
Z18
0.084″ x 0.042″ Microstrip
Z19
0.184″ x 0.292″ Microstrip
Z20
0.084″ x 0.066″ Microstrip
Z21
0.886″ x 0.194″ Microstrip
Z22
0.300″ x 0.084″ Microstrip
Z23
0.084″ x 0.215″ Microstrip
Z24
0.221″ x 0.075″ Microstrip
Z25
0.084″ x 0.175″ Microstrip
Z26, Z27
0.200″ x 0.525″ Microstrip
Z28, Z29
0.235″ x 0.102″ Microstrip
PCB
Arlon CuClad 250GX-0300-55-22, 0.030″, εr = 2.55
Z1
0.084″ x 0.078″ Microstrip
Z2
0.149″ x 0.153″ Microstrip
Z3
0.149″ x 0.303″ Microstrip
Z4
0.149″ x 0.065″ Microstrip
Z5
0.084″ x 0.146″ Microstrip
Z6
0.084″ x 0.104″ Microstrip
Z7
0.218″ x 0.080″ Microstrip
Z8
0.084″ x 0.206″ Microstrip
Z9
0.224″ x 0.085″ Microstrip
Z10
0.084″ x 0.369″ Microstrip
Z11
1.288″ x 0.206″ Microstrip
Z12
1.288″ x 0.144″ Microstrip
Z13
1.288″ x 0.369″ Microstrip
Z14
1.330″ x 0.112″ Microstrip
Z1
RF
INPUT
Z2
Z8
DUT
VBIAS
VSUPPLY
C8
C10
+
Z9
Z6
Z3
Z4
B1
C4
C5
+
R3
R2
L3
C2
L2
C1
C3
Z5
Z7
Z10
Z11
Z12
Z13
R1
L1
C6
RF
OUTPUT
Z23
Z20
Z19
Z18
Z17
Z16
Z15
Z14
Z26
Z22
Z21
Z27
Z28
Z29
Z24
Z25
C11
C9
VSUPPLY
C7
C12
C13
Table 5. MRF7S15100HR3(HSR3) Test Circuit Component Designations and Values
Part
Description
Part Number
Manufacturer
B1
Short Ferrite Bead
2743019447
Fair-Rite
C1, C6, C7, C8
15 pF Chip Capacitors
ATC100B150JT500XT
ATC
C2
0.5 pF Chip Capacitor
ATC100B0R5BT500XT
ATC
C3
10 pF Chip Capacitor
ATC100B100JT500XT
ATC
C4, C9, C13
6.8 μF, 50 V Chip Capacitors
C4532JB1H685MT
TDK
C5, C10
100 μF, 50 V Electrolytic Capacitors
222215371101
Vishay
C11, C12
2.2 μF, 50 V Chip Capacitors
C3225JB2A225MT
TDK
L1, L2, L3
7.15 nH Inductors
1606-TLC
Coilcraft
R1, R2
100 Ω, 1/4 W Chip Resistors
CRCW12061000FKEA
Vishay
R3
10 KΩ, 1/4 W Chip Resistor
CRCW12061002FKEA
Vishay
