MS7200L/7201AL/7202AL
MOSEL V ITELIC
Bidirectional Mode
Data buffering between two systems can be
achieved by pairing two FIFO arrays as shown in
Figure 6. This allows each system to READ and
WRITE shared data. The FULL FLAG (
FF
) must be
monitored on the FIFO where WRITE ENABLE (
W
)
is used and the EMPTY FLAG (
EF
) must be
monitored on the FIFO where READ ENABLE (
R
) is
used. Both Width Expansion and Depth Expansion
MS7200L/01AL/02AL Rev. 1.0 January 1995
RA
EFA
HFA
WB
FFB
WA
FFA
RB
EFB
HFB
SYSTEM A
SYSTEM B
MS7201
MS7201
DB
QA0-8
QB0-8
DA0-8

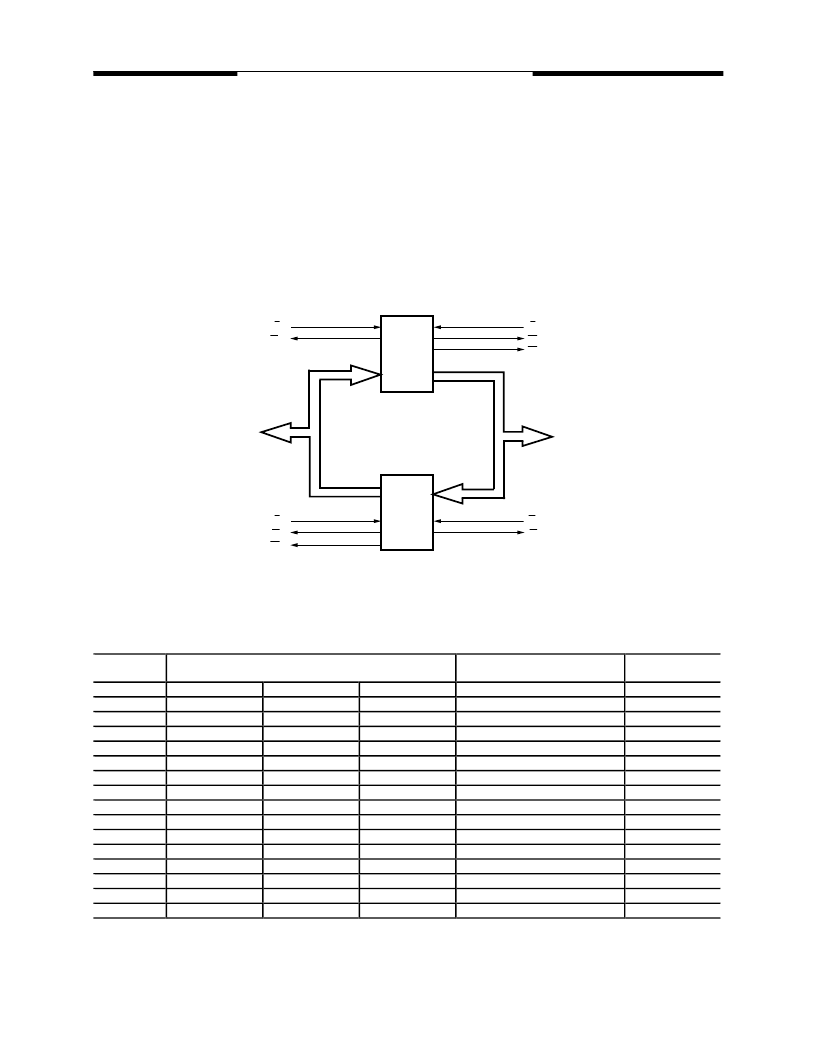

Figure 6. BiDirectional FIFO Mode
Modes may be used in combination with
Bidirectional Mode.
Compound Expansion Mode:
Both Width Expansion Mode and Depth
Expansion (Daisy Chain) Mode can be used
together to configure a large FIFO array (See
Figure 4 and 5).
Ordering Information
Speed (ns)
25
25
25
25
35
35
35
35
50
50
50
50
80
80
80
80
Ordering Part Number
MS7201AL-25PC MS7202AL-25PC
MS7201AL-25NC MS7202AL-25NC
MS7201AL-25JC
MS7201AL-25FC
MS7201AL-35PC MS7202AL-35PC
MS7201AL-35NC MS7202AL-35NC
MS7201AL-35JC
MS7201AL-35FC
MS7201AL-50PC MS7202AL-50PC
MS7201AL-50NC MS7202AL-50NC
MS7201AL-50JC
MS7201AL-50FC
MS7201AL-80PC MS7202AL-80PC
MS7201AL-80NC MS7202AL-80NC
MS7201AL-80JC
MS7201AL-80FC
Package
Temperature
Range
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
0
°
C to +70
°
C
28 Pin Plastic DIP - 600 mil
28 Pin Plastic DIP - 300 mil
32 Pin Plastic PLCC
28 Pin Small Outline - 330 mil
28 Pin Plastic DIP - 600 mil
28 Pin Plastic DIP - 300 mil
32 Pin Plastic PLCC
28 Pin Small Outline - 330 mil
28 Pin Plastic DIP - 600 mil
28 Pin Plastic DIP - 300 mil
32 Pin Plastic PLCC
28 Pin Small Outline - 330 mil
28 Pin Plastic DIP - 600 mil
28 Pin Plastic DIP - 300 mil
32 Pin Plastic PLCC
28 Pin Small Outline - 330 mil
MS7200-25NC
MS7200-25JC
MS7200-25FC
MS7202AL-25JC
MS7202AL-25FC
MS7200-35NC
MS7200-35JC
MS7200-35FC
MS7202AL-35JC
MS7202AL-35FC
MS7200-50NC
MS7200-50JC
MS7200-50FC
MS7202AL-50JC
MS7202AL-50FC
MS7200-80NC
MS7200-80JC
MS7200-80FC
MS7202AL-80JC
MS7202AL-80FC
