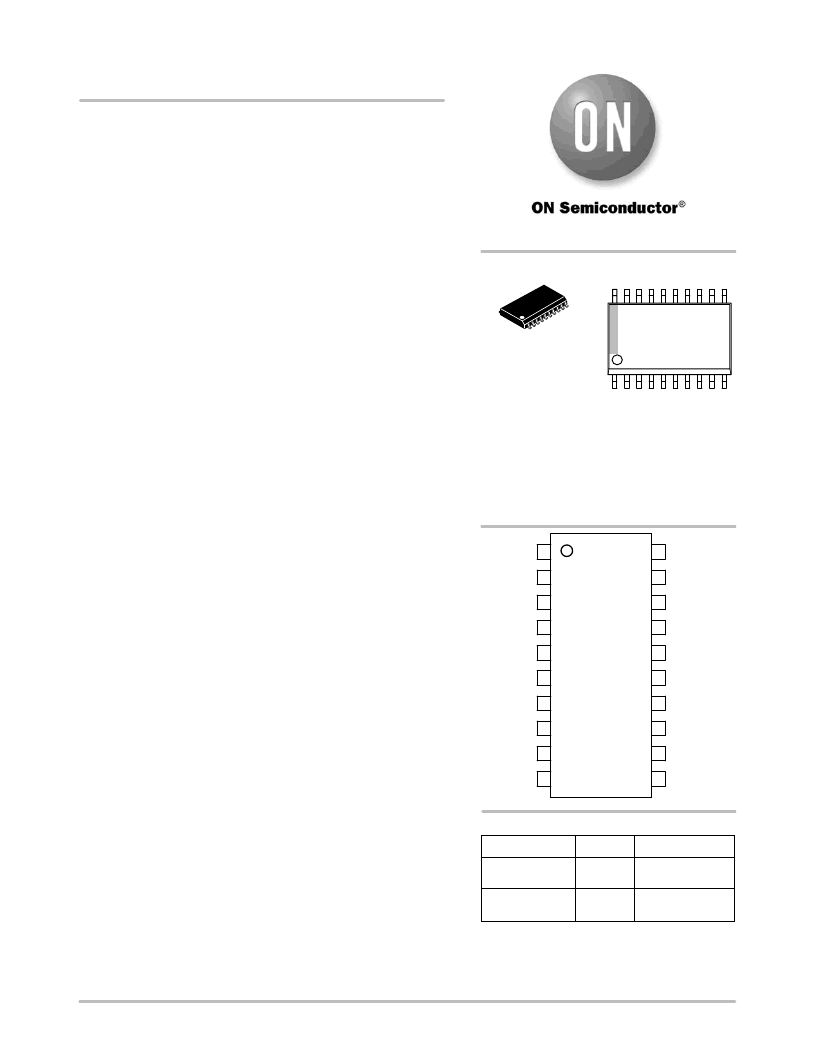

Semiconductor Components Industries, LLC, 2006
September, 2006 Rev. 0
1
Publication Order Number:
NCS6415/D
NCS6415
BusControlled Video
Matrix Switch
Description
The main function of the NCS6415 is to switch 8 video input
sources to the 6 outputs.
Each output can be switched to only one of the inputs, whereas any
single input may be connected to several outputs.
All switching possibilities are controlled through the I
2
C bus.
Features
Cascadable with another NCS6415 (Internal Address can be changed
by Pin 7 Voltage)
8 Inputs (CVBS, RGB, Chroma, ...)
6 Outputs with Low Impedance Driver
Possibility of Chroma Signal for each Input by Switching off the
Clamp with an External Resistor Bridge
Bus Controlled
6.5 dB Gain between any Input and Output
45 dB Crosstalk at 5 MHz
Compatible with TEA6415C
Full ESD Protection
These are PbFree Devices
MARKING DIAGRAMS*
*For additional marking information, refer to
Application Note AND8002/D.
SO20 WB
DW SUFFIX
CASE 751D
1
20
A
WL
YY
WW
G
= Assembly Location
= Wafer Lot
= Year
= Work Week
= PbFree Package
20
1
NCS6415
AWLYYWWG
http://onsemi.com
17
18
16
15
14
13
12
4
3
5
6
7
8
9
11
10
19
20
2
1
INPUT1
DATA1
INPUT2
CLOCK
INPUT3
INPUT4
PROG
INPUT5
V
CC
INPUT6
INPUT8
GND
OUTPUT6
OUTPUT5
OUTPUT4
OUTPUT3
OUTPUT2
OUTPUT1
GND
INPUT7
Device
Package
Shipping
ORDERING INFORMATION
NCS6415DWG
SO20
(PbFree)
SO20
(PbFree)
38 Units / Rail
NCS6415DWR2G
1000 / Tape & Reel
For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
