Evaluation Board Description
RM806
Power Amplifier Module for TDMA AMPS (824–849 MHz)
10
Skyworks
100602G
February 7, 2002

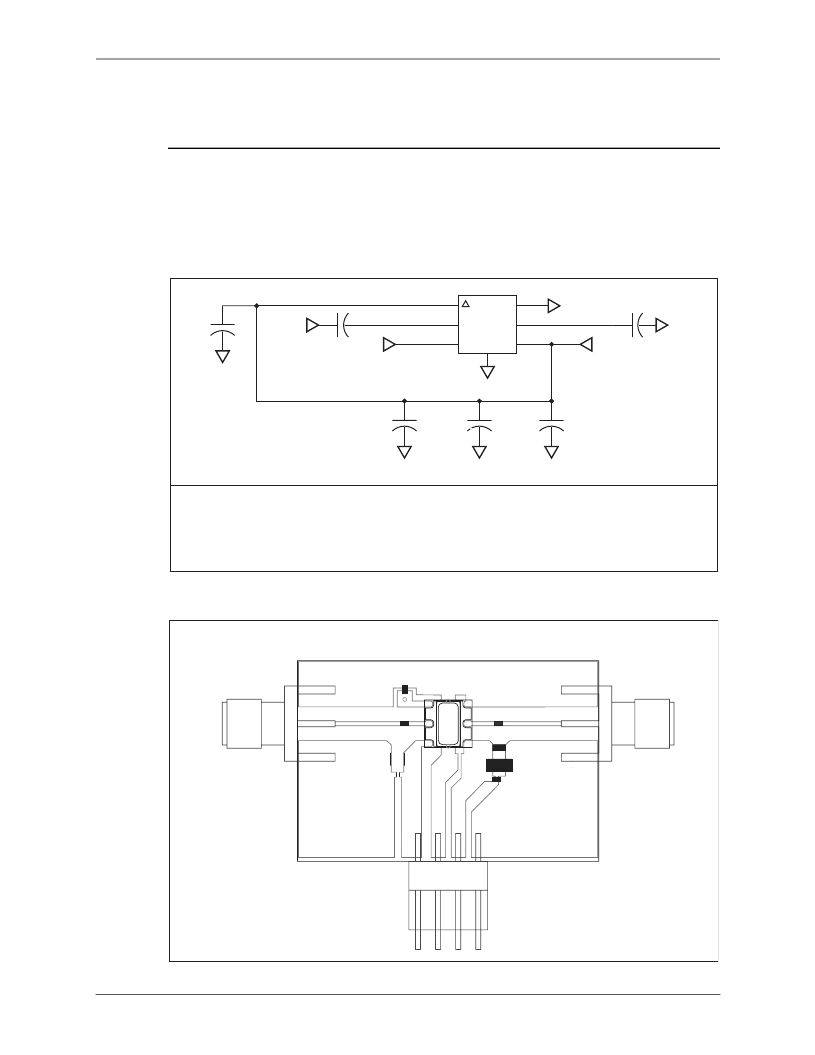

Evaluation Board Description
The evaluation board is a platform for testing and interfacing design circuitry. To accommodate the
interface testing of the RM806, the evaluation board schematic and diagrams are included for
preliminary analysis and design.
Figure 10
shows the basic schematic of the board for the 824 MHz
to 849 MHz range.
Figure 11
illustrates the board layout.
Figure 10. Evaluation Board Schematic
Figure 11. Evaluation Board Diagram
1
2
3
4
5
6
RFIN
VREF
RFOUT
Vcc
GND
GND
GND
GND
4.7uF
150 pF
39 pF
GND
GND
220 pF
RM806
18 pF
22 pF
100602_005
Notes:
1) Bottom of the package [pin 7] is GND and must be soldered.
2) Input and Output DC Blocking caps are required for TDMA Cellular
3) All external components must be located no greater than 90 mils [2.29mm] from edge of Module.
4) Vcc line should have ground layer isolation from RFIN and VREF
5) Application PCB and Production Test PCB require the same schematic.
C5
C1
C3
C4
C6
C2
SKYWORKS
6x6_ENG_EVAL_BD
09-10-99
RF IN
RF OUT
V
G
V
G
J2
J3
J1
C4
C2
C5
C6
C1
C3
100602_004
Notes:
1) C1 and C3 must be inserted.
