303 South Technology Court, Broomfield, CO 80021
Phone: (800) SMI-MMIC
5
http://www.sirenza.com
EDS-103087 Rev E
S GB-4333 DC-3GHz Ac tive Bias Gain Bloc k

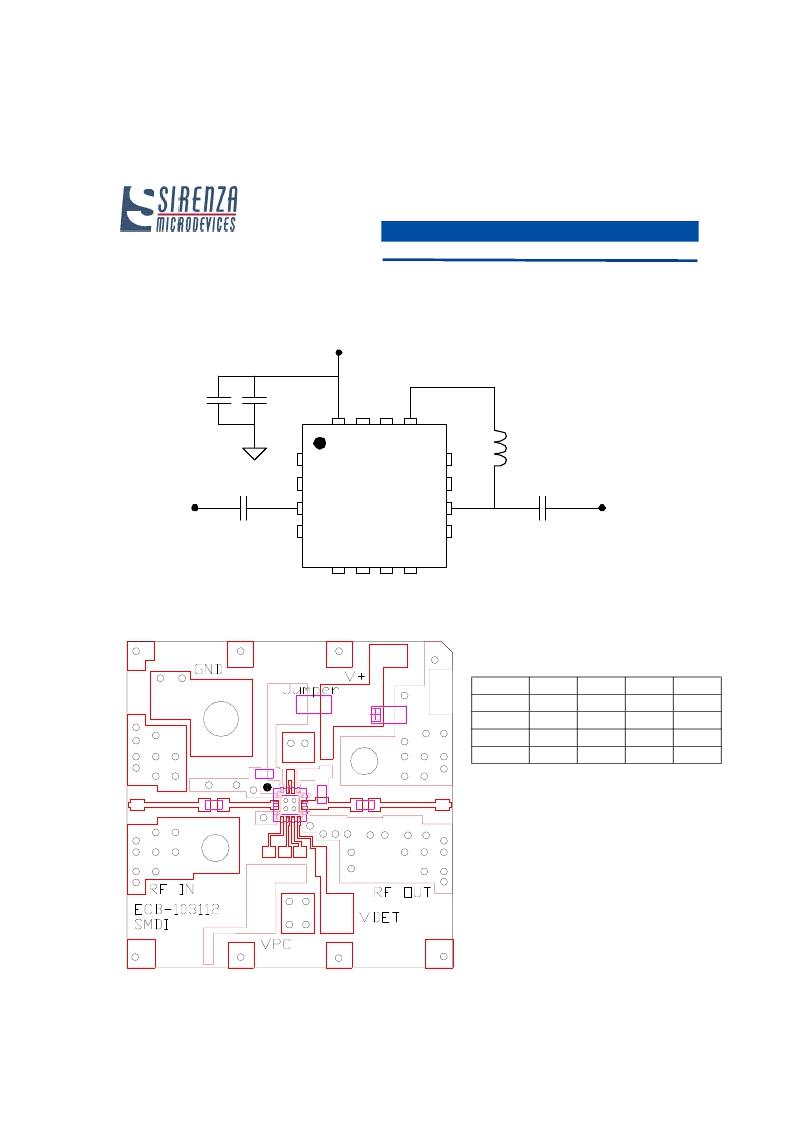

Typical Evaluation Board Schematic for 3.0V
RFIN
RFOUT
V
NC
NC
O
G
N
NC
NC
V
N
N
NC
RFIN
NC
RFOUT
N
N
Vcc
C1
C2
C3
C4
L1
1
1 6
1
C3
C2
C1
L1
C4
Evaluation Board -
Board material GETEK, 31mil thick, Dk=4.2, 1 oz. copper
* C4 is optional depending on application and filtering. Not
required for SGB device operation.
Component Values By Band
Designator
500MHz
850MHz
1950MHz 2400MHz
C3
1000pF
1000pF
1000pF
1000pF
C4*
1uF
1uF
1uF
1uF
C1, C2
220pF
68pF
43pF
22pF
L1
68 nH
33nH
22nH
18nH
Note:
The amplifier can be run from a 5V supply by simply
inserting a 33 ohm resistor in series with Vcc.
