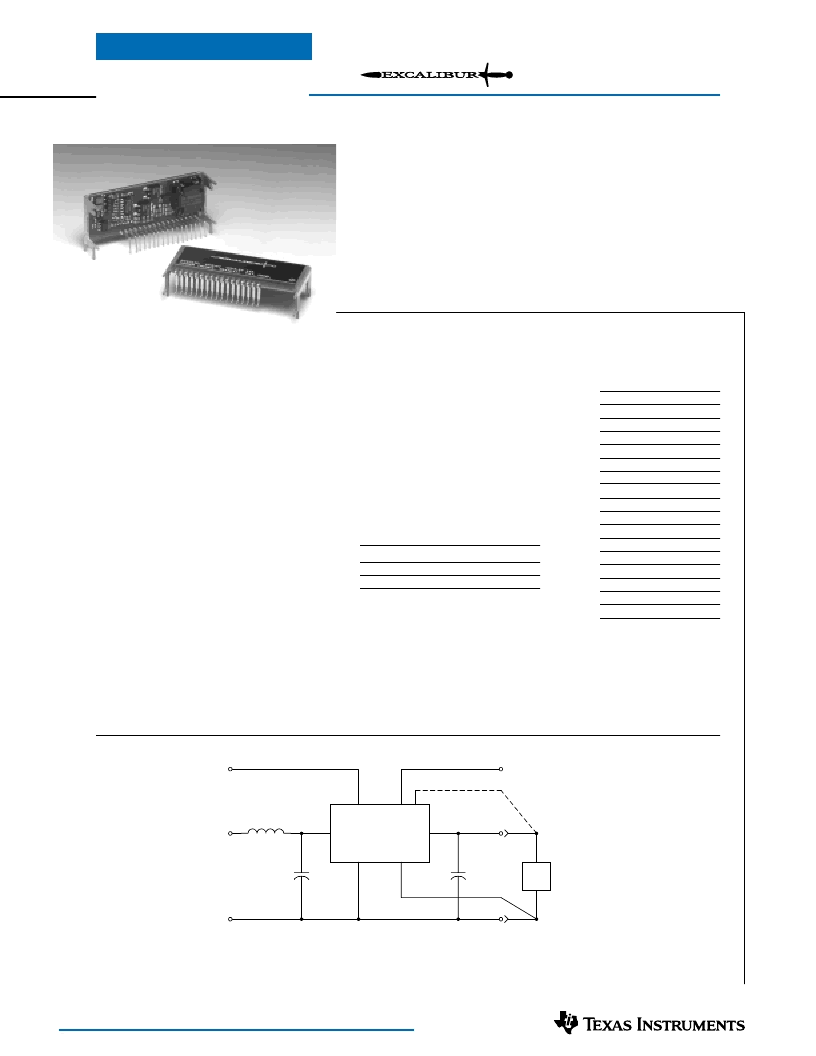

For technical support and more information, see inside back cover or visit www.ti.com
Standard Application
Features
Up to 14A Output Current
+12V Input
93% Efficiency (PT6724)
On/Off Standby Function
Differential Remote Sense
Adjustable Output Voltage
Short Circuit Protection
17-pin Space-Saving Package
Solderable Copper Case
Pin-Out Information
Pin Function
1
V
o
Adjust
2
STBY*
3
Do Not Connect
4
V
in
5
V
in
6
V
in
7
Remote Sense Gnd
8
GND
9
GND
10
GND
11
GND
12
GND
13
V
out
14
V
out
15
V
out
16
V
out
17
Remote Sense V
out
*
For further information, see
application notes.
Description
The PT6725 series of power modules
are integrated switching regulators (ISRs),
housed in a 17-pin space saving solderable
copper package. These modules operate
off a 12V input power bus to provide up to
14A of low-voltage power for the indus-
try’s latest high-speed, DSPs, μPs, and
bus drivers. The series includes the stan-
dard output bus voltage options, ranging
from 1.2V to 5.0V. The factory preset
voltage can also be adjusted over a limit-
ed range with a single external resistor.
Features include a
Standby
function,
output short circuit protection, and a
differential
Remote Sense
to compensate
for voltage drop between the ISR and
load. The modules are available in both
through-hole and surface mount configu-
rations.
PT Series Suffix
(PT1234
x
)
C ase/Pin
C onfiguration
Vertical
Horizontal
SMD
* Previously known as package styles 1340/50.
(Reference the applicable package code drawing
for the dimensions and PC board layout)
Order
Suffix
N
A
C
Package
C ode *
(EMD)
(EMA)
(EMC)
Ordering Information
PT 6724
PT 6725
PT 6726
PT 6727
PT 6728
PT 6729
= 5.0 Volts
= 3.3 Volts
= 2.5 Volts
= 1.8 Volts
= 1.5 Volts
= 1.2 Volts
Cin= Required 1000μF electrolytic
Cout= Required 330μF electrolytic
= Optional 1μH input choke
PT6725
4 - 6
8 - 12
13 - 16
1μH
C
OUT
+
C
IN
+
7
17
L1
LOAD
REMOTE SENSE (+)
REMOTE
SENSE (-)
2
1
GND
V
OUT
Vout Adjust
V
IN
GND
STBY*
PT6725 Series
SLTS102A
(Revised 1/14/2002)
14-A 12V-Input Adjustable
Integrated Switching Regulator
