ADVANCED COMMUNICATIONS & SENSING
Rev 1 – 25
th July 2011
33
www.semtech.com
SX8657/SX8658
Haptics Enabled 4/5-Wire
Resistive Touchscreen Controller with Proximity Sensing
touchscreen is used as the proximity sensor and is being touched when the conversion is performed, the
proximity measurement result may be incorrect.

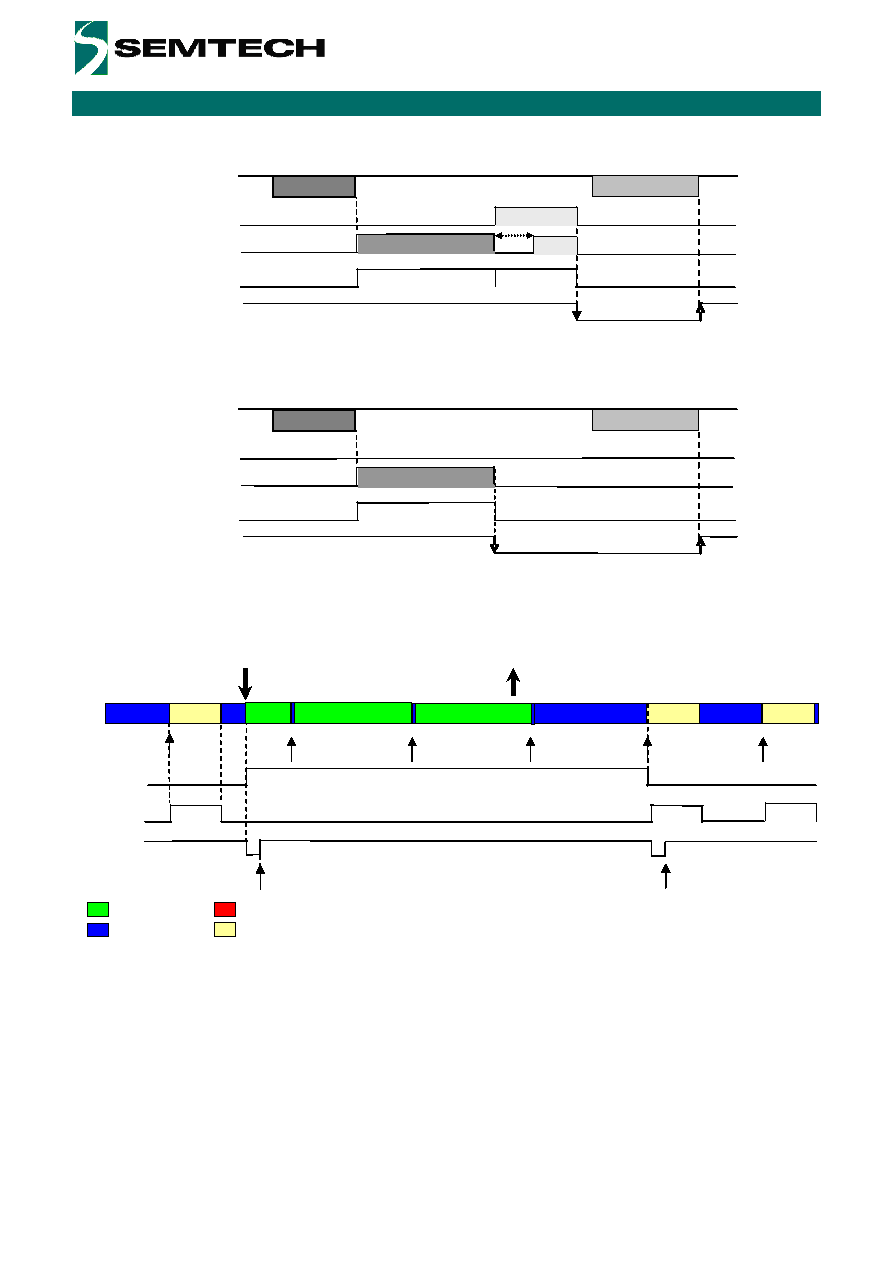

Figure 41 – Manual Mode – CONVERT Command (CHAN = Y ; PROXSCANPERIOD != 0; Pen down)
If the screen is not touched, only the proximity sensing operation is performed.
Figure 42 – Manual Mode – CONVERT Command (CHAN = Y ; PROXSCANPERIOD != 0, Pen up)
In PENDET and PENTRG mode, a proximity sensing operation will be performed regularly as defined in
PROXSCANPERIOD, but only if pen is not detected.
Figure 43 – Pen Detect Mode (RegIrqMsk[6:2] = 00011 ; PROXSCANPERIOD = 001 ie 1/TOUCHRATE)
I2C
Channel Bias
CONVERT Y
Channel Conversion
READ CHANNEL
PROX
NIRQ (RegIrqMsk[6:3]=0001)
CONVSTAT
Idle
Touch Conversion
Pen Detection
NIRQ
Pen Touch
Pen Release
I2C Read RegIrqSrc
Proximity Sensing
CONVSTAT
PENSTAT
TOUCHRATE
tick
I2C
Channel Bias
CONVERT Y
Channel Conversion
READ CHANNEL
POWDLY
Y
PROX
NIRQ (RegIrqMsk[6:3]=0001)
CONVSTAT
