ADVANCED COMMUNICATIONS & SENSING
Rev 1 – 25
th July 2011
43
www.semtech.com
SX8657/SX8658
Haptics Enabled 4/5-Wire
Resistive Touchscreen Controller with Proximity Sensing
The correct sampling of the screen by the chip and the host I2C bus traffic are events that might occur
simultaneously. The chip will synchronize these events by the use of clock stretching if that is required. The
stretching occurs directly after the last received command bit (see figure above).
11.4
Read Register

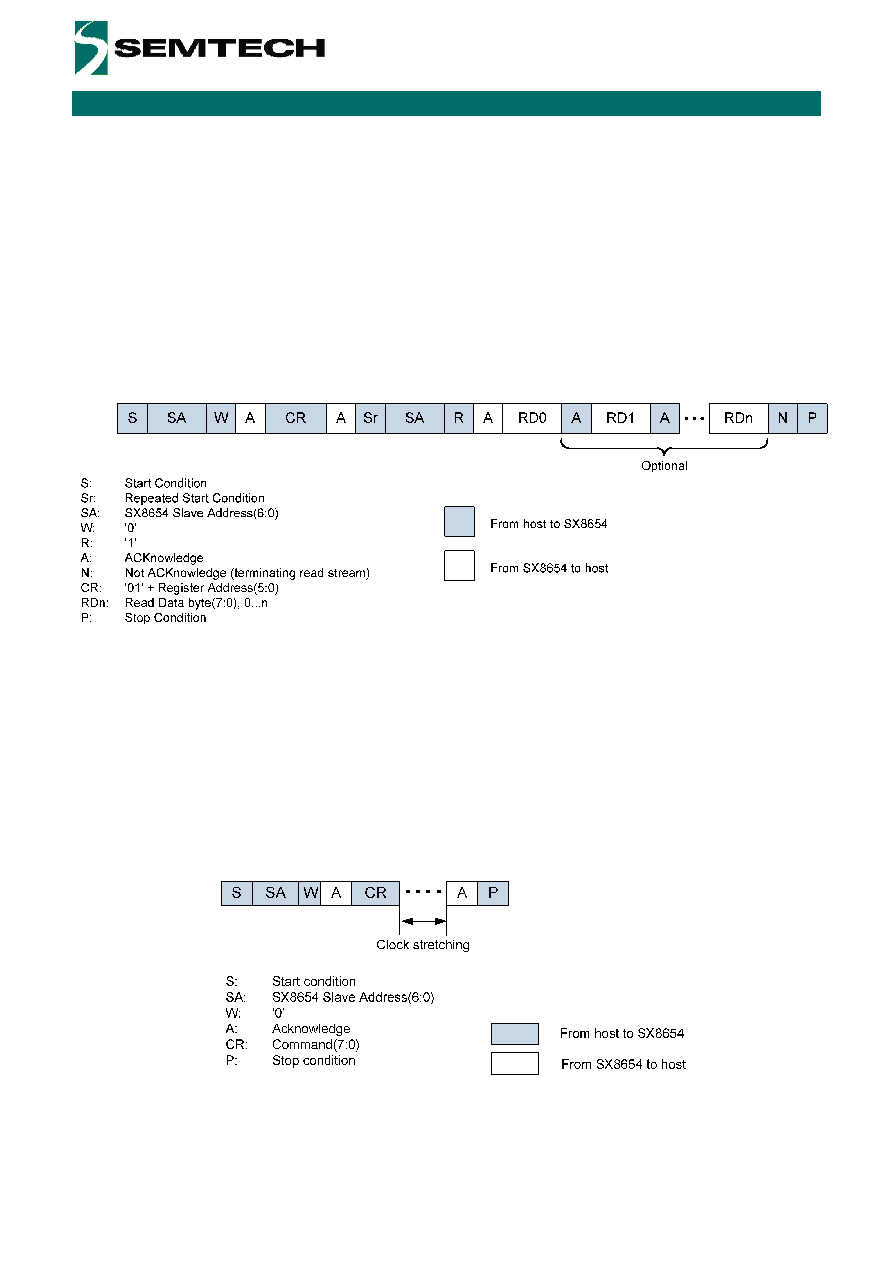

The I2C read register sequence is given in figure below. After the start condition [S], the chip slave address (SA)
is sent, followed by an eighth bit (W=‘0’) indicating a write. The chip then acknowledges [A] that it is being
addressed, and the host responds with a CR byte consisting in ‘01’ followed by the register address (RA). The
chip acknowledges [A] and the host sends the repeated start Condition [Sr]. Once again, the chip slave address
(SA) is sent, followed by an eighth bit (R=‘1’) indicating a read. The chip responds with an acknowledge [A] and
the data byte (RD0). If the host needs to read more data it will acknowledge [A] and the chip will send the next
data byte (RD1). This sequence will be repeated until the host terminates the transfer with a NACK [N] followed
by a stop condition [P].
Figure 51 – I2C Read Register
The register address increments automatically when successive data bytes (RD1...RDn) are read by the host.
The correct sampling of the screen by the chip and the host I2C bus traffic are events that might occur
simultaneously. The chip will synchronize these events by the use of clock stretching if that is required. The
stretching occurs directly after the last received command bit (see figure above).
11.5
Write Command (Touchscreen Interface)
The I2C write command sequence is given in figure below. After the start condition [S], the chip slave address
(SA) is sent, followed by an eighth bit (W=‘0’) indicating a write. The chip then acknowledges [A] that it is being
addressed, and the host responds with a CR byte consisting in Command(7:0) (see table below). The chip
acknowledges [A] and the host sends a stop [P].
Figure 52 – I2C Write Command
The sampling of the screen by the chip and the host I2C bus traffic are events that might occur simultaneously.
The chip will synchronize these events by the use of clock stretching if that is required. The stretching occurs
directly after the last received command bit (see figure above).
