2000 May 02
12
Philips Semiconductors
Objective specification
12-bit, 3.0 V, 30 Msps analog-to-digital
interface for CCD cameras
TDA9964
handbook, halfpage
gain
(dB)
0
64
128
255
0
1.9
25.9
24
192
PGA input code
18
12
6
FCE521

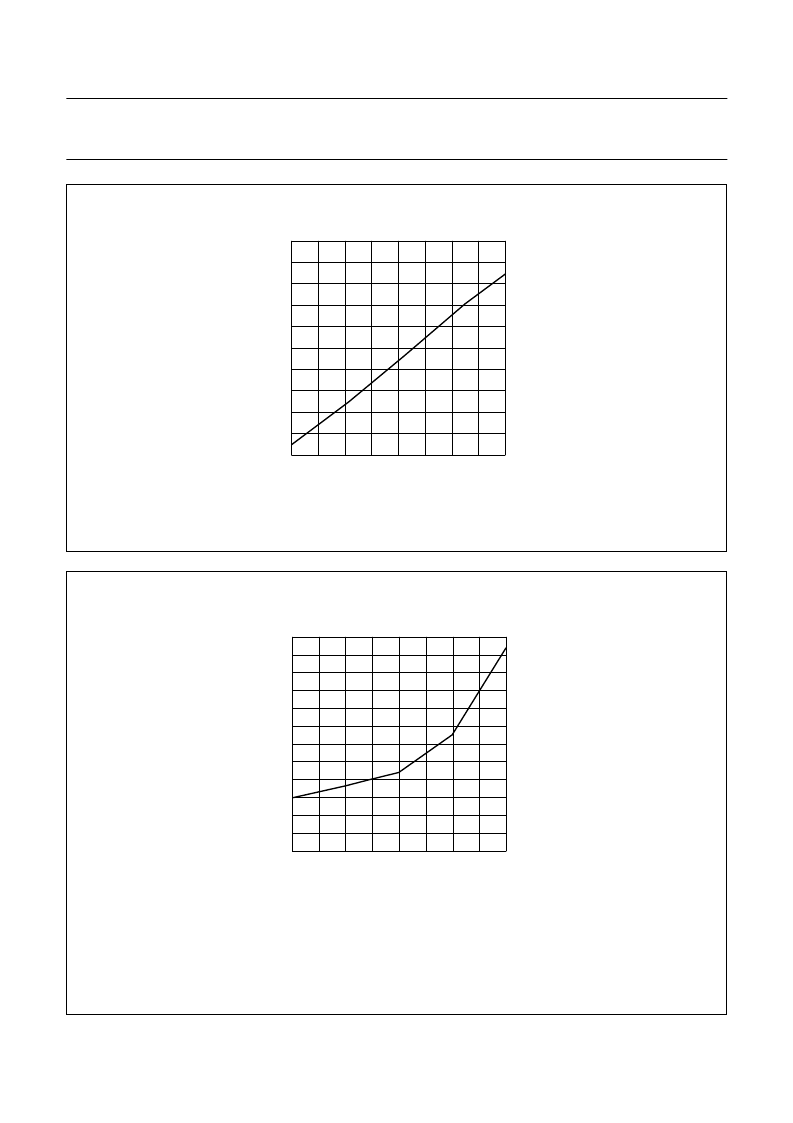

Fig.7 Total gain from CDS input to ADC input as a function of PGA input code.
handbook, halfpage
(LSB)
0
64
128
255
0
4
5
192
PGA code
3
2
1
FCE522
Fig.8 Typical total noise performance as a function of PGA gain.
Noise measurement at ADC outputs: Coupling capacitor at input is grounded, so only noise contribution of the front-end is evaluated. Front-end works
at 30 Mpixels with line of 1024 pixels of which the first 40 lines are used to run CLPOB and the last 40 lines for CLPDM. Data at the ADC outputs is
measured during the other pixels. As a result, the standard deviation of the codes statistic is computed, resulting in the noise. No quantization noise is
taken into account as there is no input.
