- 您現在的位置：買賣IC網 > PDF目錄300144 > X9421WSI (INTERSIL CORP) 10K DIGITAL POTENTIOMETER, 3-WIRE SERIAL CONTROL INTERFACE, 64 POSITIONS, PDSO16 PDF資料下載
參數資料
| 型號： | X9421WSI |
| 廠商： | INTERSIL CORP |
| 元件分類： | 數字電位計 |
| 英文描述： | 10K DIGITAL POTENTIOMETER, 3-WIRE SERIAL CONTROL INTERFACE, 64 POSITIONS, PDSO16 |
| 封裝： | 0.300 INCH, PLASTIC, SOIC-16 |
| 文件頁數： | 12/21頁 |
| 文件大?。?/td> | 357K |
| 代理商： | X9421WSI |
2
FN8196.0
March 8, 2005

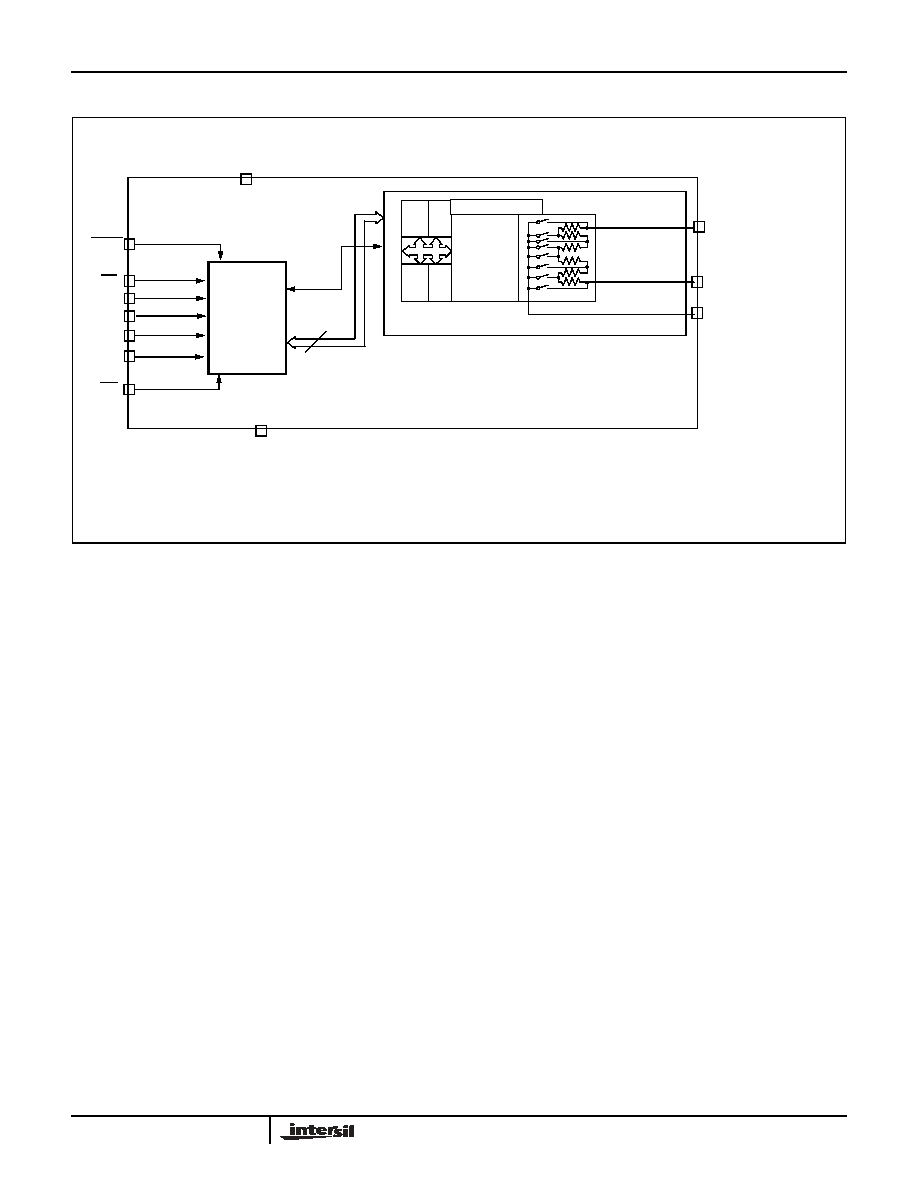

DETAILED FUNCTIONAL DIAGRAM
CIRCUIT LEVEL APPLICATIONS
Vary the gain of a voltage amplifier
Provide programmable dc reference voltages for
comparators and detectors
Control the volume in audio circuits
Trim out the offset voltage error in a voltage
amplifier circuit
Set the output voltage of a voltage regulator
Trim the resistance in Wheatstone bridge circuits
Control the gain, characteristic frequency and
Q-factor in filter circuits
Set the scale factor and zero point in sensor signal
conditioning circuits
Vary the frequency and duty cycle of timer ICs
Vary the dc biasing of a pin diode attenuator in RF
circuits
Provide a control variable (I, V, or R) in feedback
circuits
SYSTEM LEVEL APPLICATIONS
Adjust the contrast in LCD displays
Control the power level of LED transmitters in
communication systems
Set and regulate the DC biasing point in an RF
power amplifier in wireless systems
Control the gain in audio and home entertainment
systems
Provide the variable DC bias for tuners in RF
wireless systems
Set the operating points in temperature control
systems
Control the operating point for sensors in industrial
systems
Trim offset and gain errors in artificial intelligent
systems
WIPER
COUNTER
REGISTER
(WCR)
RH/VH
RL/VL
DATA
RW/VW
INTERFACE
AND
CONTROL
CIRCUITRY
VCC
VSS
CS
SCK
A0
SO
SI
HOLD
WP
Control
64--taps
10k
Power-on Recall
DR0
DR1
DR2 DR3
X9421
