35.0-43.0 GHz GaAs MMIC
Power Amplifier
Page 6 of 7

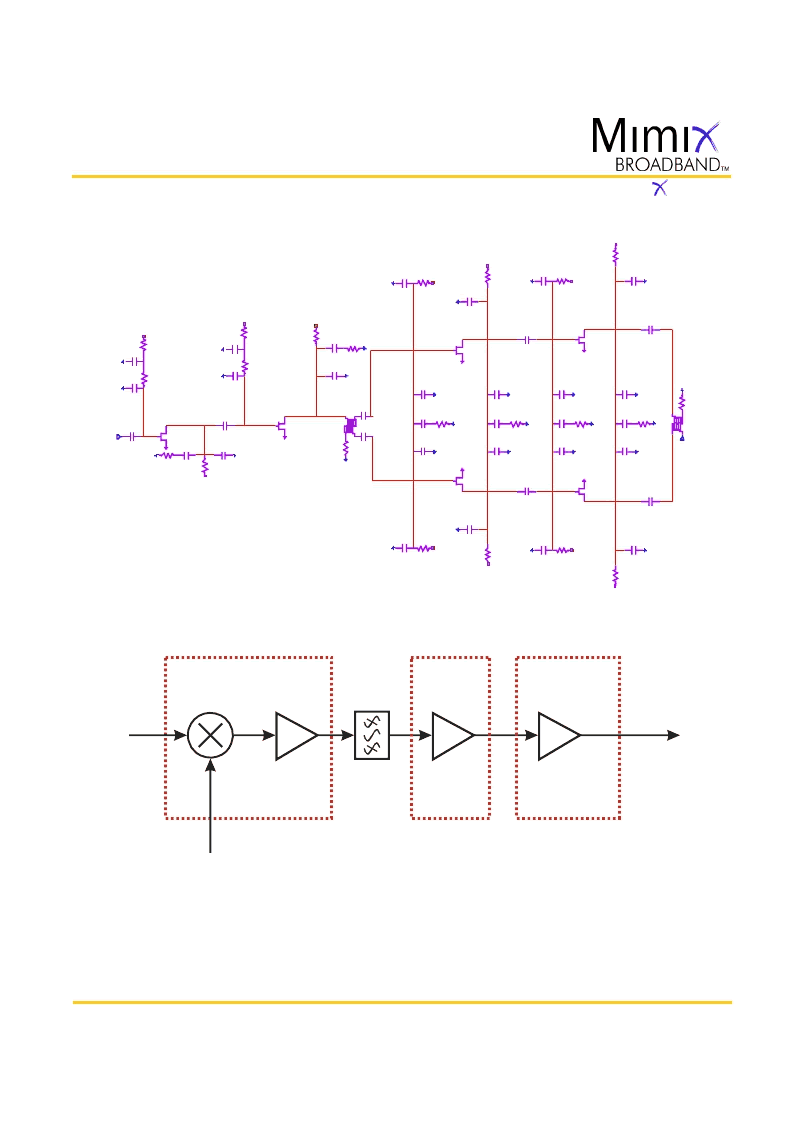

Device Schematic
Vg3A
R=14.3
Vg4A
Vg4B
R=14.3
R=5.6
R=57.0
R=5.5
R=18.3
Vd1
R=14.3
R=57.0
R=5.5
RF In
R=9.1
R=5.6
R=5.6
R=14.3
R=7.1
R=4.6
R=50.0
R=7.1
R=4.6
R=2.3
R=50.0
R=5.6
RF Out
R=2.3
Vd4A
Vd3A
Vd4B
Vd3B
Vg3B
Vg1
Vg2
Vd2
P1005
Typical Application
Mimix
Broadband MMIC-based 36.0-40.0 GHz Transmitter Block Diagram
(Changing LO and IF frequencies as required allows design to operate as high as 40 GHz)
IF IN
2 GHz
XB1005
XP1005
XU1001
Sideband
Reject
RF Out
37.0-39.5 GHz
LO(+15dBm)
17.5-18.75 GHz (USB Operation)
19.5-20.75 GHz (LSB Operation)
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Characteristic Data and Specifications are subject to change without notice.
2005 Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
May 2005 - Rev 05-May-05
