WM8721
Internet Audio DAC with Integrated Headphone Driver
Product Preview, November 2000, Rev 1.3
WOLFSON MICROELECTRONICS LTD
Lutton Court, Bernard Terrace, Edinburgh, EH8 9NX, UK
Tel: +44 (0) 131 667 9386
Fax: +44 (0) 131 667 5176
Email: sales@wolfson.co.uk
http://www.wolfson.co.uk
Product Preview
data sheets contain
specifications for products in the formative
phase of development. These products may
be changed or discontinued without notice.
2000 Wolfson Microelectronics Ltd
.
DESCRIPTION
The WM8721 is a low power stereo DAC with an integrated
headphone driver. The WM8721 is designed specifically for
portable MP3 audio and speech players. The WM8721 is
also ideal for MD, CD machines and DAT players.
Stereo 24-bit multi-bit sigma delta DACs are used with
oversampling digital interpolation filters. Digital audio input
word lengths from 16-32 bits and sampling rates from 8KHz
to 96KHz are supported.
Stereo audio outputs are buffered for driving headphones
from a programmable volume control, line level outputs are
also provided along with anti-thump mute and power
up/down circuitry.
The device is controlled via a 2 or 3 wire serial interface.
The interface provides access to all features including
volume controls, mutes, de-emphasis and extensive power
management facilities. The device is available in a small 20-
pin SSOP package.
A USB mode is provided where all audio rates can be
derived from a simple 12MHz MCLK, saving on need for
PLL or multiple crystals.
FEATURES
Audio Performance
100dB SNR (‘A’ weighted @ 48kHz) DAC
1.42 – 3.6V Digital Supply Operation
2.7 – 3.6V Analogue Supply Operation
DAC Sampling Frequency: 8KHz – 96KHz
2 or 3-Wire MPU Serial Control Interface
Programmable Audio Data Interface Modes
I
2
S, Left, Right Justified or DSP
16/20/24/32 bit Word Lengths
Stereo Audio Outputs
Output Volume and Mute Controls
Highly Efficient Headphone Driver
Playback Mode Power Consumption < 18mW
20-Pin SSOP Package
APPLICATIONS
Portable MP3 Players
CD and Minidisc Players

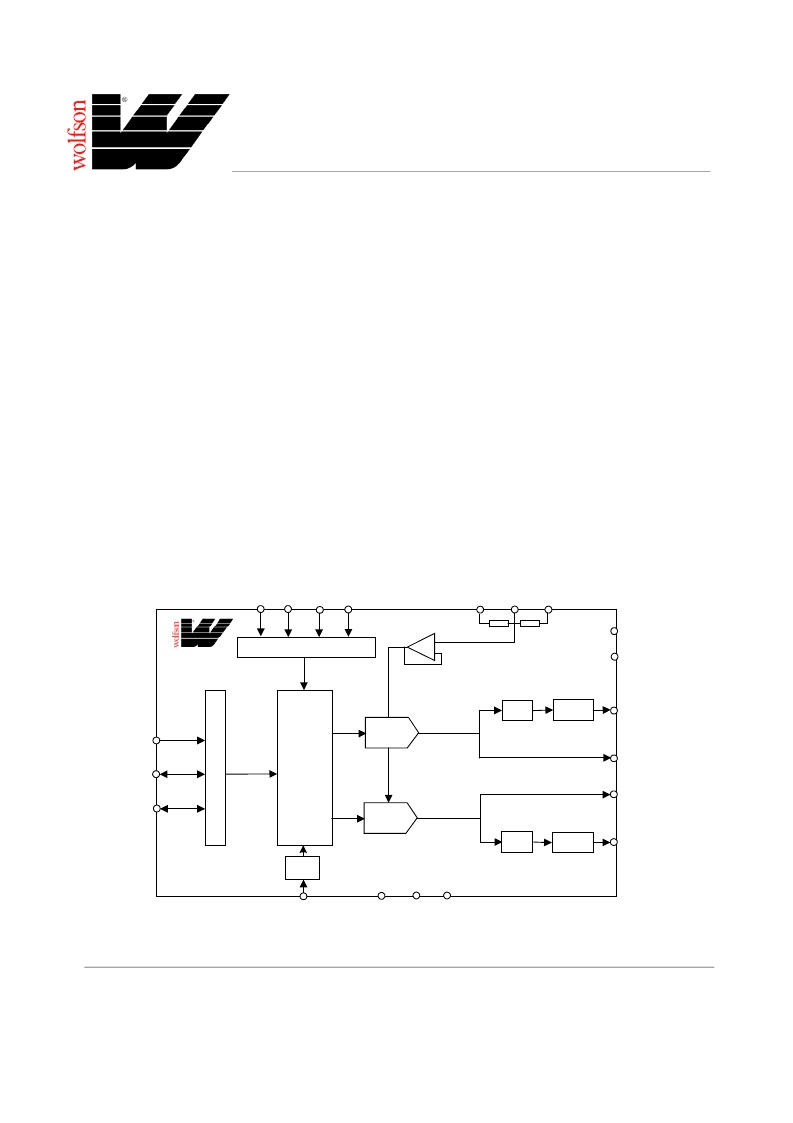

BLOCK DIAGRAM
DIGITAL
FILTERS
CONTROL INTERFACE
DAC
DAC
VOL/
MUTE
VOL/
MUTE
H/P
DRIVER
H/P
DRIVER
C
(15)
S
(16)
S
(17)
RHPOUT
LHPOUT
ROUT
(10)
LOUT
D
(
D
+6 to -73dB
1 dB Steps
HPVDD
HPGND
+6 to -73dB
1 dB Steps
D
(
M
(14)
D
DACLRC (4)
BCLK (2)
DACDAT (3)
M
A
(11)
A
(12)
V
(13)
WM8721
(18)
(19)
(1)
(20)
(5)
(8)
(7)
(9)
(6)
CLKIN
DIVIDER
(Div x1, x2)
