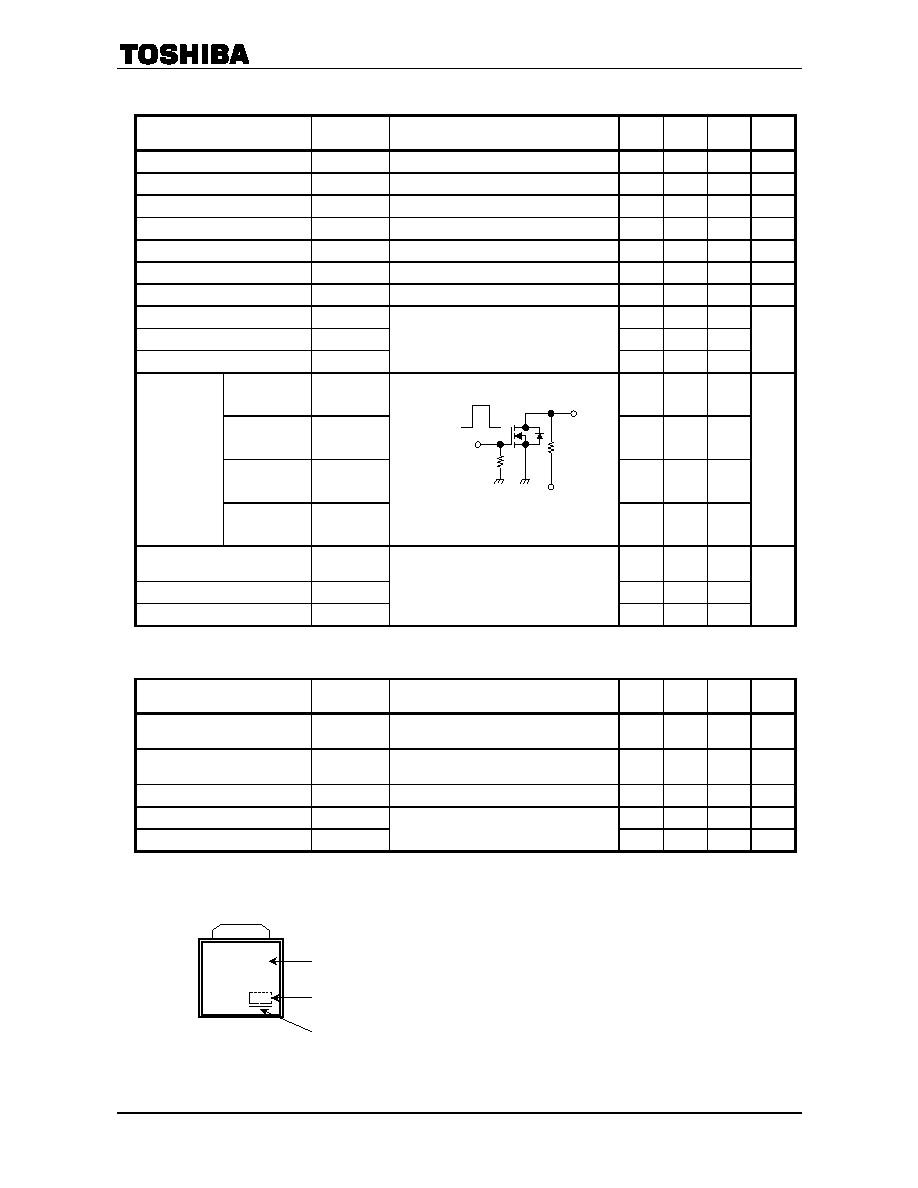

2SK4003
2005-04-27
2
Electrical Characteristics (Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Gate leakage current
IGSS
VGS = ±25 V, VDS = 0 V
—
±10
A
Gatesource breakdown voltage
V (BR) GSS
IG = ±10 A, VDS = 0 V
±30
—
V
Drain cutoff current
IDSS
VDS = 600 V, VGS = 0 V
—
100
A
Drainsource breakdown voltage
V (BR) DSS
ID = 10 mA, VGS = 0 V
600
—
V
Gate threshold voltage
Vth
VDS = 10 V, ID = 1 mA
2.0
—
4.0
V
Drainsource ON-resistance
RDS (ON)
VGS = 10 V, ID = 1.5 A
—
1.7
2.2
Forward transfer admittance
|Yfs|
VDS = 10 V, ID = 1.5 A
0.5
2.0
—
S
Input capacitance
Ciss
—
600
—
Reverse transfer capacitance
Crss
—
7
—
Output capacitance
Coss
VDS = 25 V, VGS = 0 V, f = 1 MHz
—
60
—
pF
Rise time
tr
—
16
—
Turnon time
ton
—
40
—
Fall time
tf
—
18
—
Switching time
Turnoff time
toff
—
80
—
ns
Total gate charge (gatesource
plus gatedrain)
Qg
—
15
—
Gatesource charge
Qgs
—
9
—
Gatedrain (“Miller”) charge
Qgd
VDD ≒ 400 V, VGS = 10 V, ID = 3 A
—
6
—
nC
SourceDrain Ratings and Characteristics (Ta = 25°C)
Characteristic
Symbol
Test Condition
Min
Typ.
Max
Unit
Continuous drain reverse current
(Note 1)
IDR
—
3
A
Pulse drain reverse current
(Note 1)
IDRP
—
12
A
Forward voltage (diode)
VDSF
IDR = 3 A, VGS = 0 V
—
1.7
V
Reverse recovery time
trr
—
800
—
ns
Reverse recovery charge
Qrr
IDR = 3 A, VGS = 0 V
dIDR / dt = 100 A / s
—
5
—
C
Marking
K4003
Lot No.
A line indicates
lead (Pb)-free package or
lead (Pb)-free finish.
Part No. (or abbreviation code)
0 V
10 V
VGS
VDD 200 V
ID = 1.5 A VOUT
50
Duty <= 1%, tw = 10 s
RL=
133
