2002 Jun 18
11
Philips Semiconductors
Product specication
Dual D-type ip-op with set and reset; positive-edge
trigger
74LVC74A
handbook, full pagewidth
open
GND
50 pF
2
× VCC
VCC
VI
VO
MNA368
D.U.T.
CL
RT
RL
500
RL
500
PULSE
GENERATOR
S1

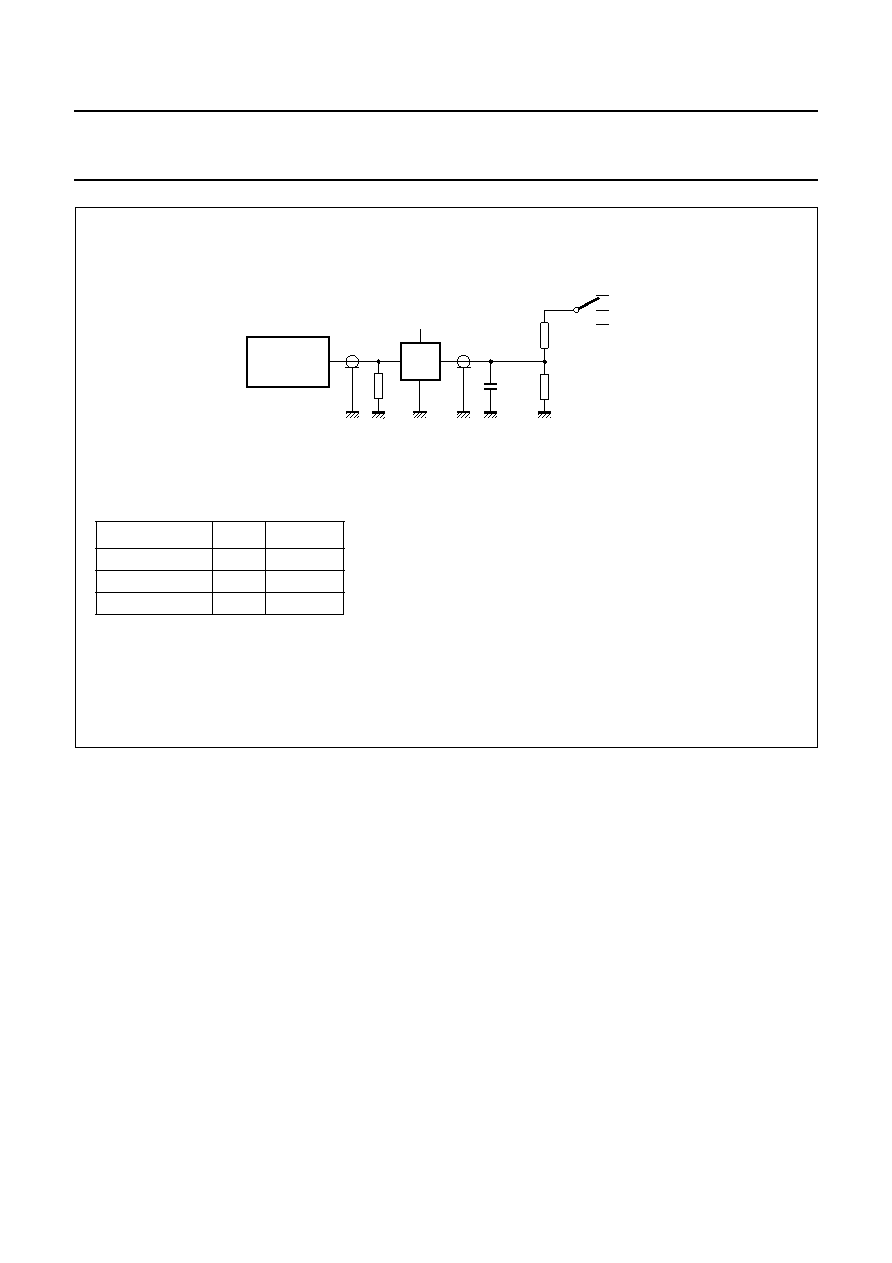

Fig.8 Load circuitry for switching times.
VCC
VI
tPLH/tPHL
1.2 V
VCC
open
2.7 V
open
3.0 to 3.6 V
2.7 V
open
Definitions for test circuits:
RL = Load resistor.
CL = Load capacitance including jig and probe capacitance.
RT = Termination resistance should be equal to the output impedance Zo of the pulse generator.
