FM3808
Rev 1.1
May 2003
Page 26 of 28

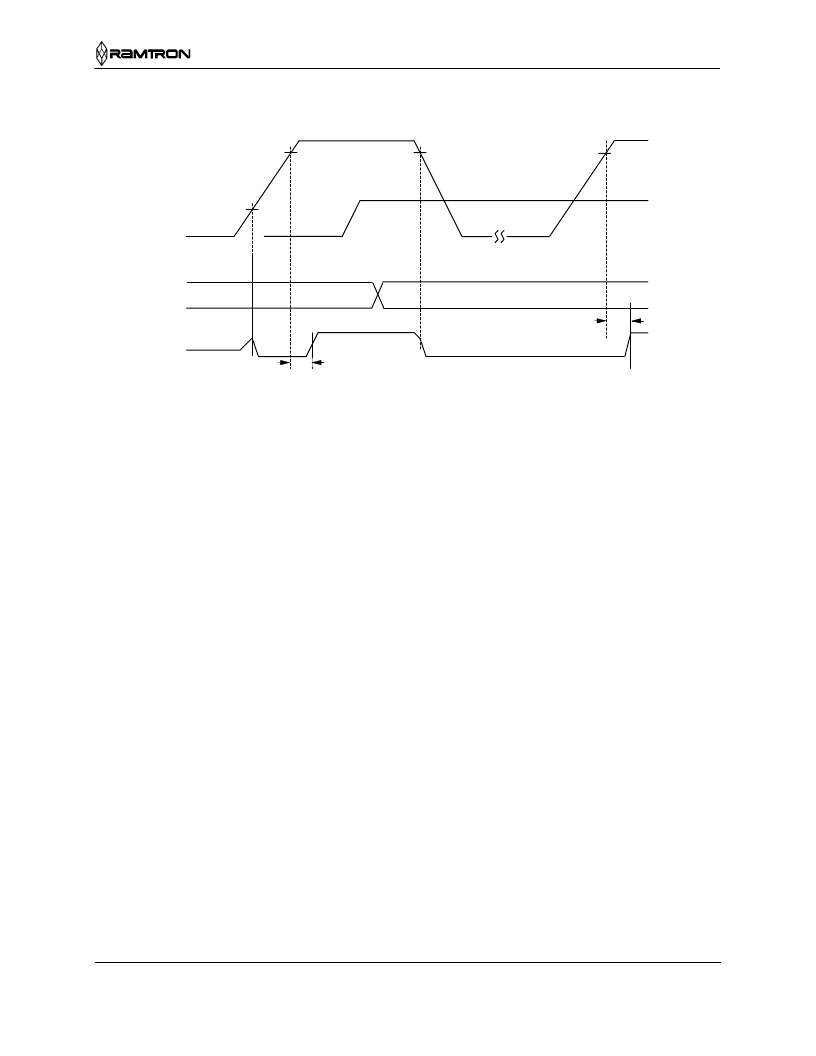

INT pin Timing at Power Up
V
DD
V
TP
Register
7FF6
INT
V
RST
t
IPU
t
IPU
24h
New value written
(register is battery backed)
V
TP
(~ 200 ms)
V
BAK
driven low
hi-Z
This drawing shows the behavior of the INT at power-up first without a backup supply V
BAK
then with a backup
supply. On power-up without a backup power supply, the device will initialize with the Power Fail bit enabled
(PFE=1) and the INT pin will be active low (open drain) and pulse output mode (P/L=1). The Interrupt register
7FF6h defaults to the value 24h. Once V
DD
is established, the register 7FF6h may be written to a different value
to change the behavior of the INT pin. When a battery is used as a backup source, V
DD
must be applied prior to
inserting the battery to prevent battery drain. Once V
DD
is applied and a battery is inserted, the current drain on
the battery is guaranteed to be I
BAK
(max).
