ML6599
2
REV. 1.0 10/25/2000

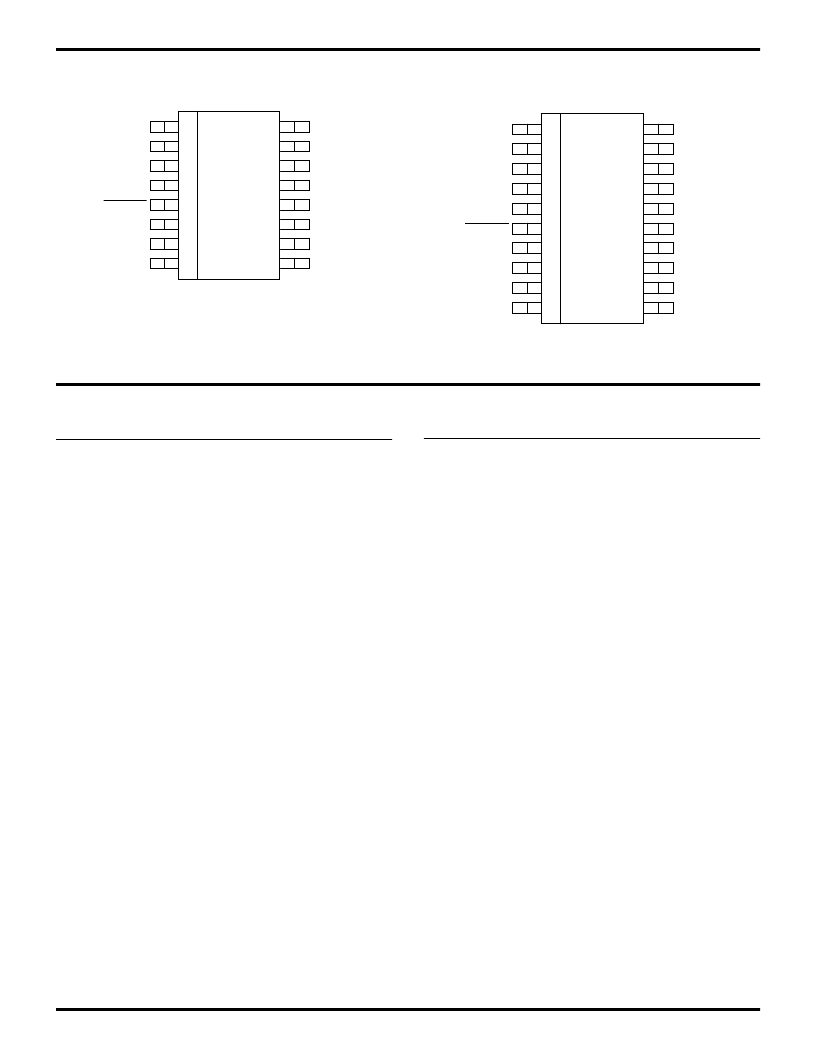

Pin Configuration
20-Pin TSSOP
16-Pin SOIC
TERMPWR
NC
NC
GND
DISCNKT
NC
L1
L2
L9
L8
L7
V
REF
L6
L5
L4
L3
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
TERMPWR
HS
NC
GND
NC
DISCNKT
NC
HS
L1
L2
L9
L8
HS
L7
V
REF
L6
L5
L4
HS
L3
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
NOTE :
The
DISCNKT
line has a 200ky internal pullup resistor connected to
the supply. This pin should be left floating for normal operation and
should be connected to ground to enable the function.
PIN DESCRIPTION
NAME
DESCRIPTION
TERMPWR
Termination Power. Should be connected
to the SCSI TERMPWR line. A 10μF
tantalum local bypass capacitor is
recommended per system, as shown in
the application diagram
L1
Signal Termination 1. SCSI Bus line 1
L2
Signal Termination 2. SCSI Bus line 2
L3
Signal Termination 3. SCSI Bus line 3
L4
Signal Termination 4. SCSI Bus line 4
L5
Signal Termination 5. SCSI Bus line 5
L6
Signal Termination 6. SCSI Bus line 6
L7
Signal Termination 7. SCSI Bus line 7
L8
Signal Termination 8. SCSI Bus line 8
L9
Signal Termination 9. SCSI Bus line 9
NAME
DESCRIPTION
V
REF
2.85V
REF
Output. External decoupling
with a 10μF tantalum in parallel with a
0.1μF ceramic capacitor is
recommended, as shown in the
application diagram.
DISCNKT
Disconnect Terminator. Logic input to
disconnect the terminator from the bus
when the SCSI device no longer needs
termination due to not being the last
device on the bus or otherwise. Active
low input.
GND
Ground. Signal ground (0V)
HS
Heat Sink Ground. Should be
connected to GND.
