FREESCALE SEMICONDUCTOR ADVANCED CLOCK DRIVERS DEVICE DATA
483
Freescale Semiconductor, Inc.
TECHNICAL DATA
Order number: MPC961C
Rev 2, 08/2004
Low Voltage Zero Delay Buffer
The MPC961 is a 2.5 V or 3.3 V compatible, 1:18 PLL based zero delay
buffer. With output frequencies of up to 200 MHz, output skews of 150 ps the
device meets the needs of the most demanding clock tree applications.
Features
Fully Integrated PLL
Up to 200 MHz I/O Frequency
LVCMOS Outputs
Outputs Disable in High Impedance
LVCMOS Reference Clock Options
LQFP Packaging
32-lead Pb-free Package Available
±50 ps Cycle-Cycle Jitter
150 ps Output Skews
Functional Description
The MPC961 is offered with two different input configurations. The
MPC961C offers an LVCMOS reference clock while the MPC961P offers
an LVPECL reference clock.
When pulled high the OE pin will force all of the outputs (except QFB) into a high impedance state. Because the OE pin does not
affect the QFB output, down stream clocks can be disabled without the internal PLL losing lock.
The MPC961 is fully 2.5 V or 3.3 V compatible and requires no external loop filter components. All control inputs accept LVCMOS
compatible levels and the outputs provide low impedance LVCMOS outputs capable of driving terminated 50
transmission lines.
For series terminated lines the MPC961 can drive two lines per output giving the device an effective fanout of 1:36. The device is
packaged in a 32 lead LQFP.

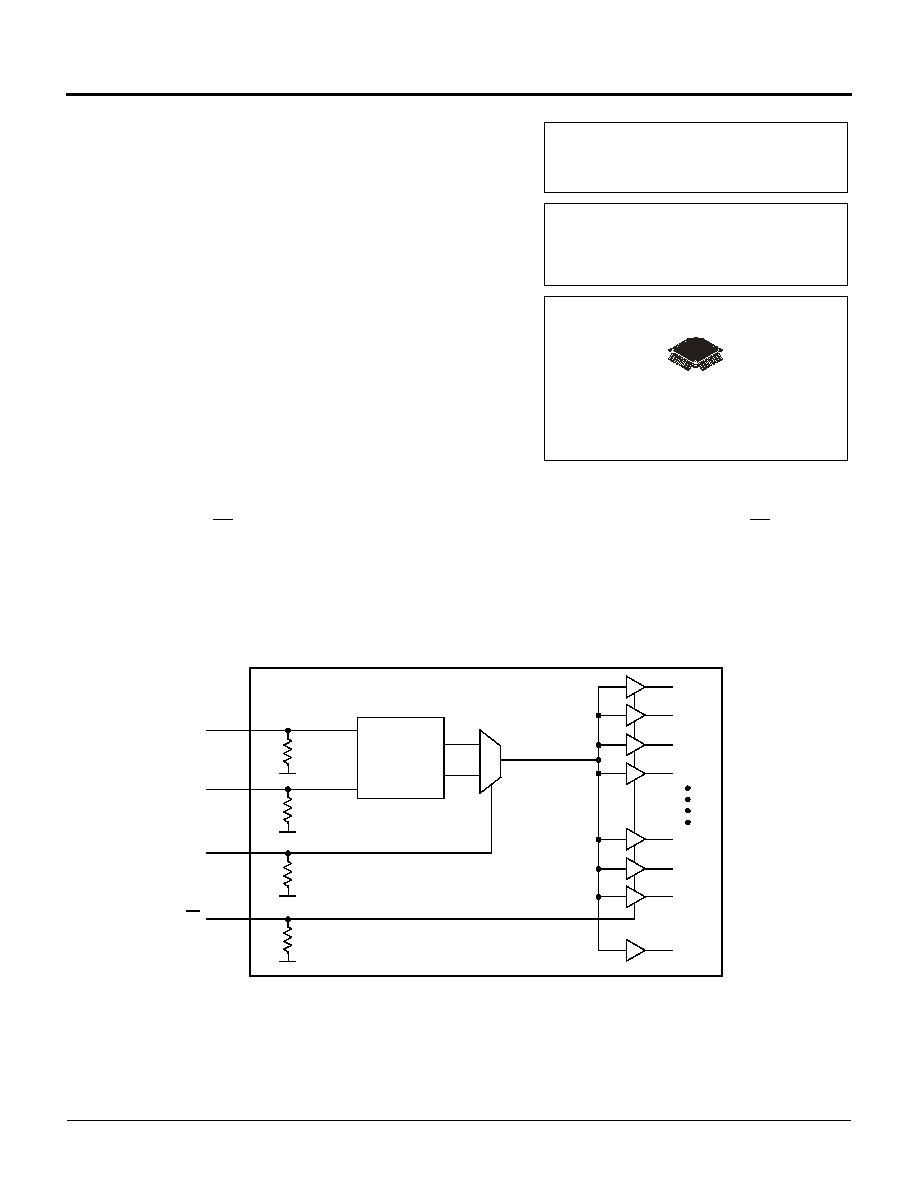

Figure 1. MPC961C Logic Diagram
MPC961C
FA SUFFIX
32-LEAD LQFP PACKAGE
CASE 873A-03
LOW VOLTAGE
ZERO DELAY BUFFER
CCLK
FB_IN
Q0
Q14
QFB
O
PLL
1
F_RANGE
OE
Q1
Q2
Q3
Q15
Q16
Ref
FB
100 – 200 MHz
50– 100 MHz
The MPC961C requires an external RC filter for the analog power supply pin VCCA. Refer to APPLICATIONS INFORMATION for details.
50 k
