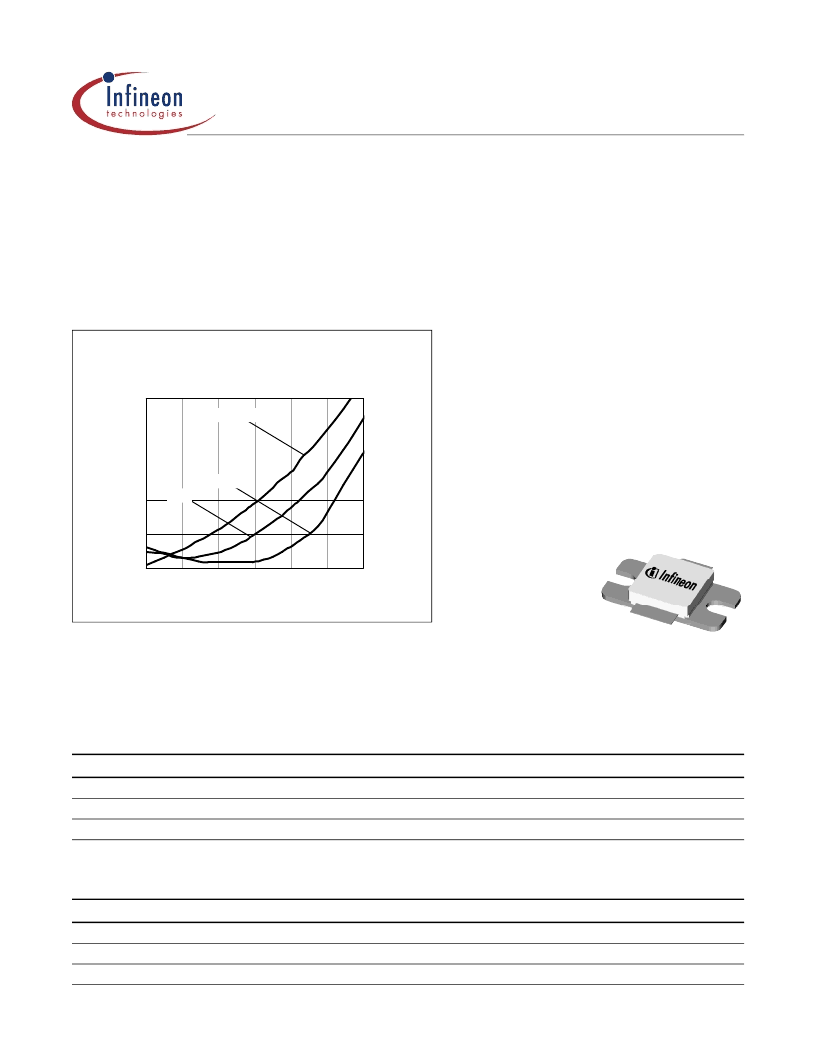

Data Sheet
1
2003-12-22
PTF210451E
Package 30265
Two–Carrier WCDMA Drive-Up
V
DD
= 28 V, I
DQ
= 500 mA, f = 2140 MHz, 3GPP WCDMA
signal, P/A R = 8 dB, 10 MHz carrier spacing
-55
-50
-45
-40
-35
-30
30
32
34
36
38
40
42
Average Output Power (dBm)
I
5
10
15
20
25
30
D
IM3
ACPR
Efficiency
LDMOS RF Power Field Effect Transistor
45 W, 2110–2170 MHz
Description
The PTF210451 is a 45 W internally matched
GOLDMOS
FET
intended for WCDMA applications from 2110 to 2170 MHz. Full gold
metallization ensures excellent device lifetime and reliability.
Features
Internal matching for wideband performance
Typical two–carrier WCDMA performance
- Average output power = 11.5 W
- Gain = 14 dB
- Efficiency = 27%
- IM3 = –37 dBc
Typical CW performance
- Output power at P–1dB = 50 W
- Linear gain = 14 dB
- Efficiency = 53%
Integrated ESD protection: Human Body Model,
Class 1 (minimum)
Excellent thermal stability
Low HCI Drift
Capable of handling 10:1 VSWR @ 28 V,
45 W (CW) output power
RF Performance
at T
CASE
= 25°C unless otherwise indicated
WCDMA Measurements
(not subject to production test—verified by design/characterization in Infineon test fixture)
V
DD
= 28 V, I
DQ
= 500 mA, P
OUT
= 11.5 W AVG
f
1
= 2140 MHz, f
2
= 2150 MHz, 3GPP signal, channel bandwidth = 3.84 MHz , peak/average = 8
dB @ 0.01% CCDF
Characteristic
Symbol
Min
Typ
Max
Units
Intermodulation Distortion
IMD
—
–37
—
dBc
Gain
G
ps
η
D
—
14
—
dB
Drain Efficiency
—
27
—
%
Two–Tone Measurements
(tested in Infineon test fixture)
V
DD
= 28 V, I
DQ
= 500 mA, P
OUT
= 45 W PEP, f = 2170 MHz, Tone Spacing = 1 MHz
Characteristic
Symbol
Min
Typ
Max
Units
Gain
G
ps
η
D
IMD
13
14
—
dB
Drain Efficiency
35
38
—
%
Intermodulation Distortion
—
–32
–30
dBc
PTF210451
ESD:
Electrostatic discharge sensitive device — observe handling precautions!
