XC164-32
Derivatives
Electrical Parameters
Data Sheet
63
V1.1, 2006-08
4.4
AC Parameters
4.4.1
Definition of Internal Timing
The internal operation of the XC164CS is controlled by the internal master clock
f
MC.
The master clock signal
f
MC can be generated from the oscillator clock signal fOSC via
different mechanisms. The duration of master clock periods (TCMs) and their variation
(and also the derived external timing) depend on the used mechanism to generate
f
MC.
This influence must be regarded when calculating the timings for the XC164CS.

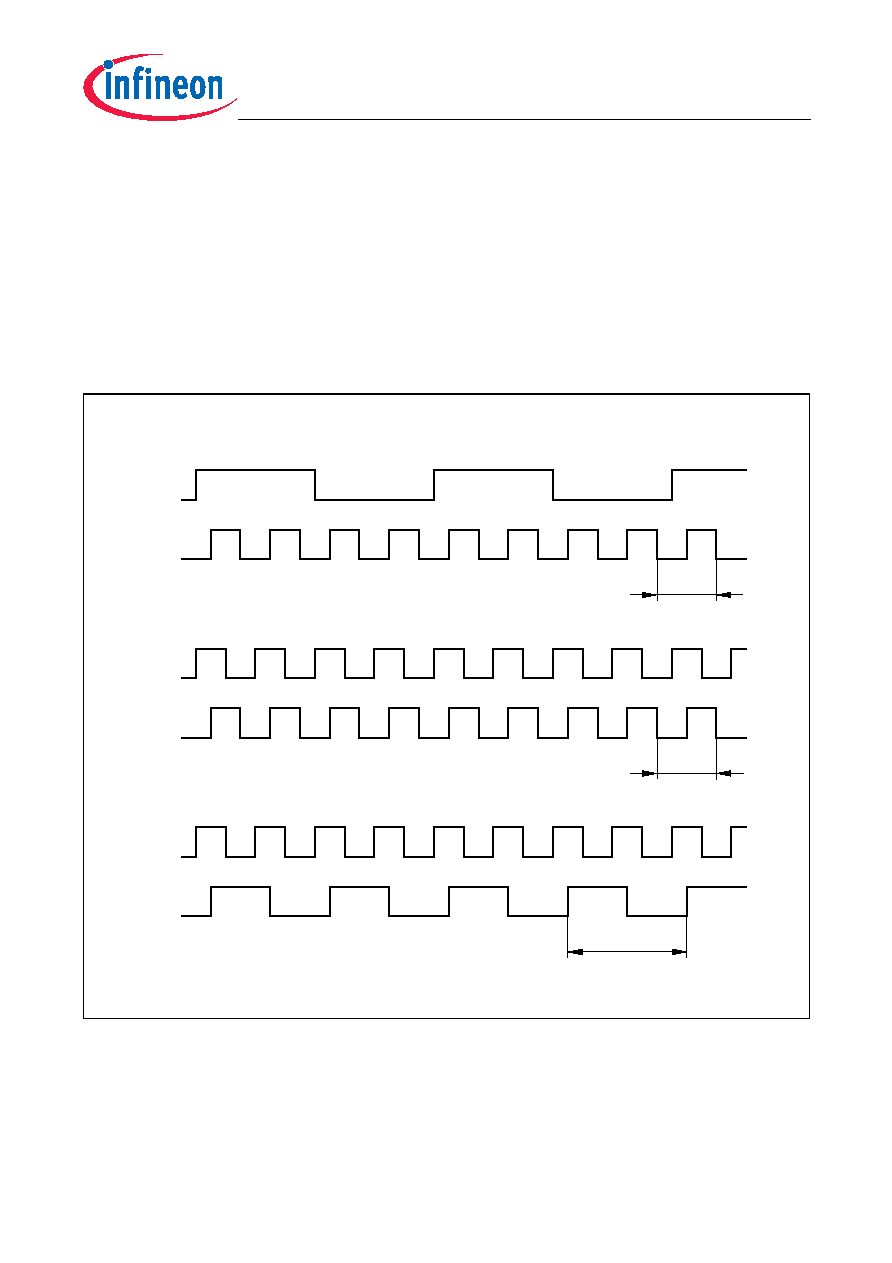

Figure 15
Generation Mechanisms for the Master Clock
Note: The example for PLL operation shown in Figure 15 refers to a PLL factor of 1:4,
the example for prescaler operation refers to a divider factor of 2:1.
The used mechanism to generate the master clock is selected by register PLLCON.
MCT05555
Phase Locked Loop Operation (1:N)
f
OSC
Direct Clock Drive (1:1)
Prescaler Operation (N:1)
f
MC
f
OSC
fMC
fOSC
f
MC
TCM
