TMS320VC5409
FIXED-POINT DIGITAL SIGNAL PROCESSOR
SPRS082C – APRIL 1999 – REVISED MARCH 2000
13
POST OFFICE BOX 1443
HOUSTON, TEXAS 77251–1443

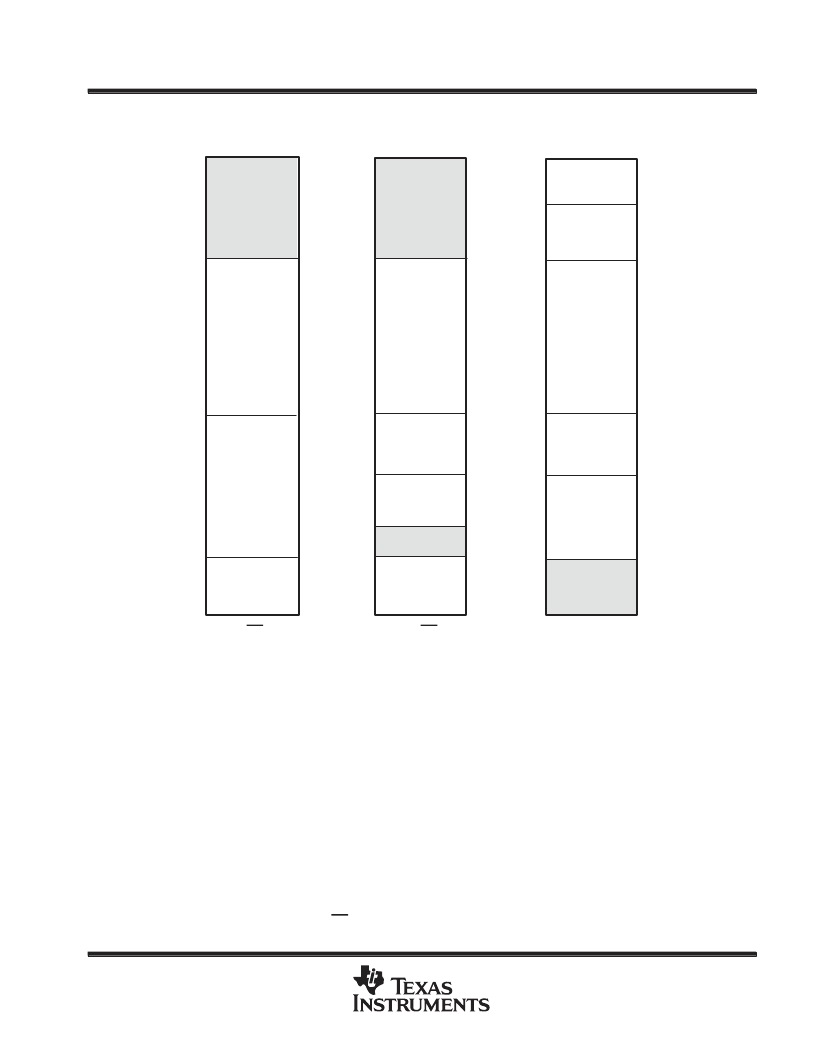

memory map
Page 0 Program
Hex
0000
Data
On-Chip
DARAM
(OVLY = 1)
External
(OVLY = 0)
MP/MC= 0
(Microcomputer Mode)
MP/MC= 1
(Microprocessor Mode)
007F
0080
FFFF
Reserved
(OVLY = 1)
External
(OVLY = 0)
Interrupts
(External)
FF80
Memory-
Mapped
Registers
On-Chip
DARAM
(32K words)
ROM
(DROM=1)
or External
(DROM=0)
0080
FFFF
Hex
0000
FF7F
FF00
FEFF
BFFF
C000
FFFF
0060
007F
0000
Hex
Page 0 Program
External
External
Scratch-Pad
RAM
Reserved
(DROM=1)
or External
(DROM=0)
005F
Reserved
(OVLY = 1)
External
(OVLY = 0)
007F
0080
On-Chip
DARAM
(OVLY = 1)
External
(OVLY = 0)
FF80
FEFF
FF00
BFFF
C000
External
On-Chip ROM
(16K Words)
Interrupts
(On-Chip)
7FFF
8000
7FFF
8000
7FFF
8000
FF7F
Reserved
DARAM0= 0060h – 1FFFh
,
DARAM1= 2000h – 3FFFh
DARAM2= 4000h – 5FFFh, DARAM3= 6000h – 7FFFh
Figure 1. Memory Map
relocatable interrupt vector table
The reset, interrupt, and trap vectors are addressed in program space. These vectors are soft — meaning that
the processor, when taking the trap, loads the program counter (PC) with the trap address and executes the
code at the vector location. Four words are reserved at each vector location to accommodate a delayed branch
instruction, either two 1-word instructions or one 2-word instruction, which allows branching to the appropriate
interrupt service routine with minimal overhead.
At device reset, the reset, interrupt, and trap vectors are mapped to address FF80h in program space. However,
these vectors can be remapped to the beginning of any 128-word page in program space after device reset.
This is done by loading the interrupt vector pointer (IPTR) bits in the PMST register with the appropriate
128-word page boundary address. After loading IPTR, any user interrupt or trap vector is mapped to the new
128-word page.
NOTE:
The hardware reset (RS) vector cannot be remapped because a hardware reset loads the
IPTR with 1s. Therefore, the reset vector is always fetched at location FF80h in program space.
