W925E/C625
8-bit CID Microcontroller
Revision : A6
-54-
Release Date : 2002/7/2
+
-
INP
INN
VREF
C1
C2
R1
R2
R3
R4
0.1uF
R5
Differential Input Amplifier
C1 = C2
R1 = R2
R3 = (R4 R5) / (R4 + R5)
Voltage Gain
Av = R5 / R1
Input Impedance
Zin = 2 R1 + (1 / wC)
2
GCFB

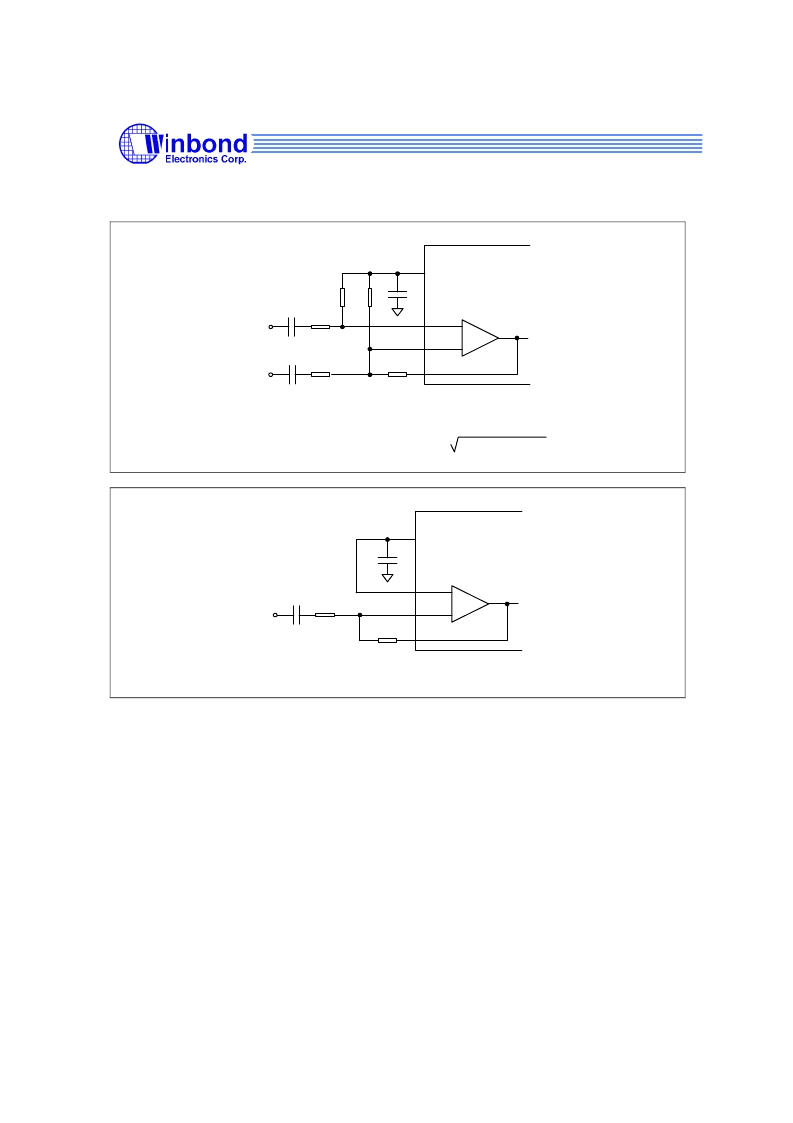

Figure 6-19 Differential Input Gain Control Circuit
+
-
INP
INN
VREF
C
R1
0.1uF
R2
Voltage Gain
Av = R2 / R1
GCFB
22n
Figure 6-20 Single-Ended Input Gain Control Circuit
CAS/DTAS Detection
In off-hook services (type II), the detection of CAS/DTAS will affect the quality of the call waiting
service. When the CAS/DTAS is sent from far end, sometimes the near end user maybe still
talking. The CPE must be able to detect the CAS/DTAS successfully in the presence of near end
speech. To detect CAS/DTAS from telephone hybrid receiver pair improves the detection.
However in BT’s on-hook CID system the CAS/DTAS detection is from Tip/Ring pair.
The dual tone alert signal is separated into high and low tones and detected by a high/low tone
detector. When the alert tone is recognized by the detector, the bit ALGO will go high and the
rising signal will set the bit ALGOF in CIDFG to produce the CID flag(CIDF). Figure 6-21 shows
the guard time waveform of detecting alert tone. The total recognition time is t
REC
=t
DP
+t
GP
, where
t
DP
is the tone present detect time and t
GP
is the tone present guard time. The total absent guard
time is t
ABS
=t
DA
+t
GA
where t
DA
is the tone absent detect time and t
GA
is the tone absent guard time.
The tone present/absent guard time is determined by guard-time timer which the input clock
period is 0.858mS. When the alert tone is detected the internal signal ALGR will be set and the
rising edge of ALGR resets the guard-time timer and the timer starts up counting from 00H. As
the content of the timer is the same as the register CASPT, the timer stops counting and the bit
ALGO will be set and the rising edge of ALGO triggers the flag ALGOF to become high. The
