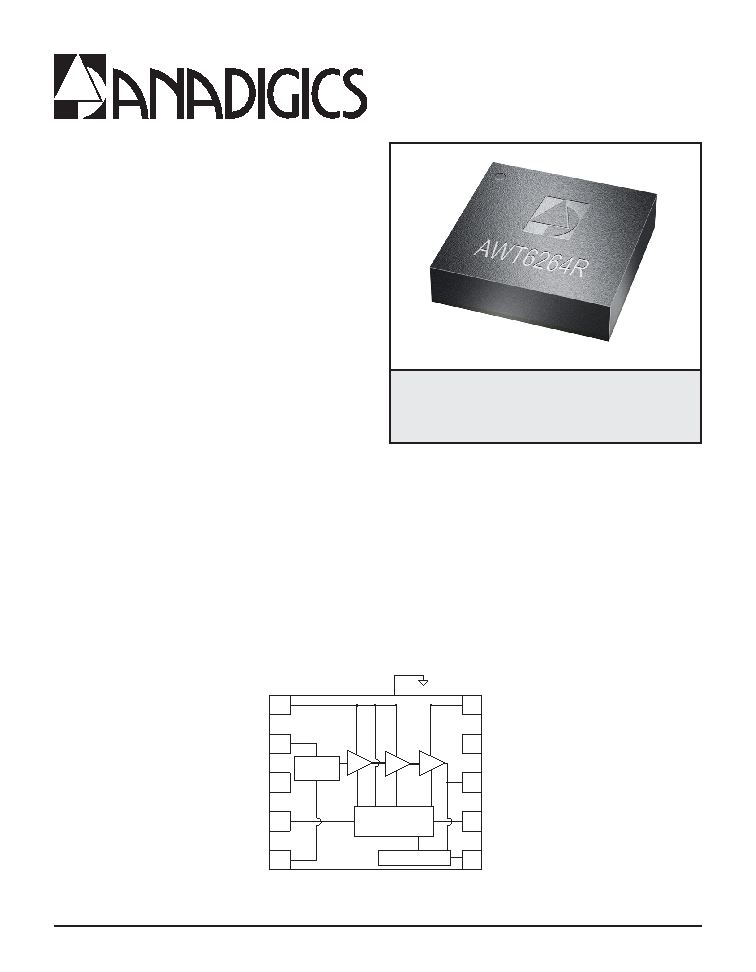

05/2010
AWT6264R
2.3-2.7 GHz Mobile WiMAX
Power Amplifier Module
Data Sheet - Rev 2.1
M49 Package
10 Pin 4 mm x 4 mm x 1 mm
Surface Mount Module
Figure 1: Block Diagram
current increases talk and standby time, and an
integrated step attenuator enables gain control. The
self-contained 4 mm x 4 mm x 1 mm surface mount
package incorporates matching networks optimized
for output power, efficiency, and linearity in a 50
system.
FEATURES
InGaP HBT Technology
+25 dBm Linear Output Power
32 dB Gain
2.5 % EVM QPSK 1/2 CTC, 16 QAM OFDMA
Modulation
High Efficiency
Integrated Output Power Detector
Integrated Step Attenuator
Low Leakage Current in Shutdown Mode
Optimized for a 50 System
Low Profile Miniature Surface Mount Package;
RoHS Compliant
APPLICATIONS
Mobile WiMAX Data Cards and Terminals that
Support the IEEE 802.16e (2005) Standard
PRODUCT DESCRIPTION
The AWT6264R meets the stringent linearity and
output power requirements of the Mobile WiMAX high
speed data system. The device is manufactured on
an advanced InGaP HBT MMIC technology offering
state-of-the-art reliability, temperature stability, and
ruggedness. A shutdown mode with low leakage
Bias Control
VCC
VATTN
RFIN
RFOUT
VDET
1
7
5
8
10
6
GND at slug (pad)
3
9
4
2
GND
VCC
GND
VREF
Step
Attenuator
Power Detector
